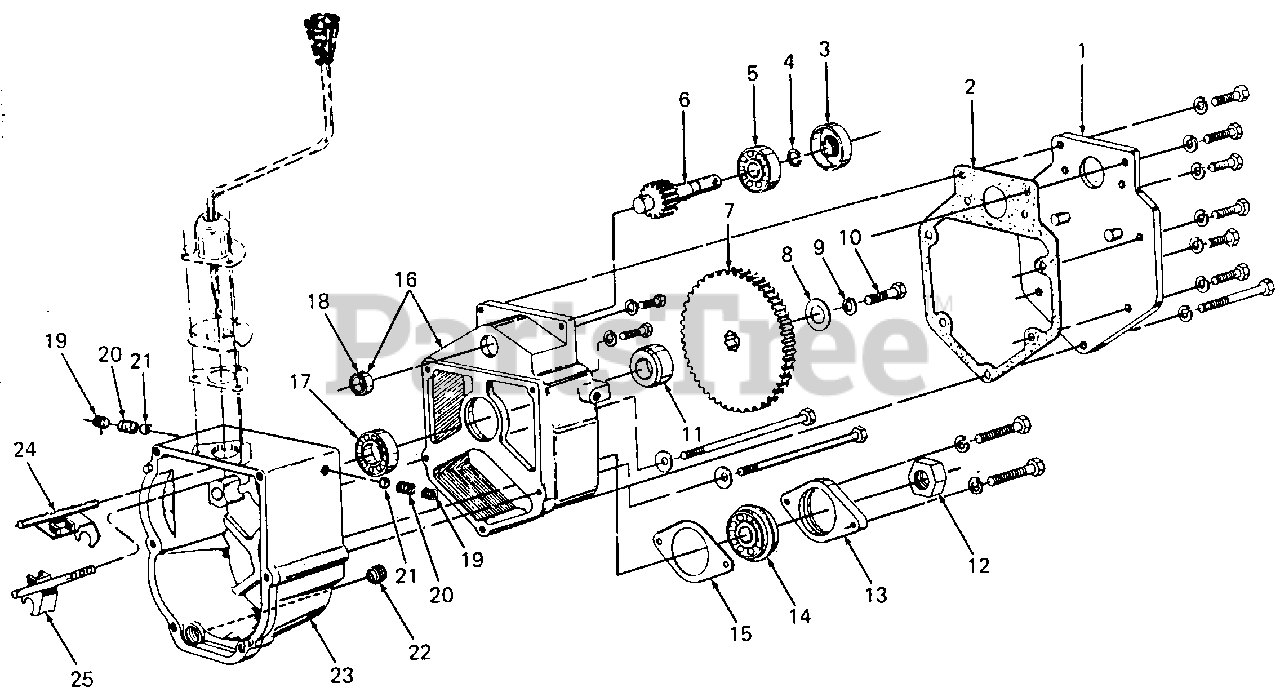

1535 (140-641-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Transmission-Reduction Housing Parts Diagram

Garden Tractor

Transmission-Reduction Housing Parts Diagram

  • Title

1

Cub Cadet 703-0924

Plate, Front Cover

$

$

Not available

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-0846

Screw, Hex Cap, 7/16-14 X 4.0 Lg GR5

$

$

Not available

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

2

Cub Cadet 721-3016

Gasket, Front Cover

$

$

Not available

3

Cub Cadet 721-0193

Seal, Oil, 5/8 ID X 1.574 OD X .312 Wide

$

$

Currently unavailable

4

Cub Cadet 716-0143

Ring, Retaining

$

$

Not available

5

Cub Cadet 741-0361

Bearing, Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

6

Cub Cadet 717-3073

Shaft, Input

$

$

Not available

7

Cub Cadet 717-3074

Gear, Reduction - 84T

$

$

Not available

8

Cub Cadet 717-3104

Washer, Flat, 1/2 ID X 1-1/2 OD X 3/16 Thk

$

$

Currently unavailable

9

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 710-0505

Screw, Hex Cap, 7/16-14 X 1.0 Lg GR5

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 717-3076

Spacer, Gear

$

$

Not available

12

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16 GR5

$4.99

$

In Stock, Qty 7

0

13

Cub Cadet 717-3080

Retainer, Bearing

$

$

Not available

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 5

0

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 741-0366

Bearing, Ball w/Ring

$

$

Not available

15

Cub Cadet 717-3275

Shim, Bearing Retainer, .004

$

$

Not available

Cub Cadet 717-3276

Shim, Bearing Retainer, .007

$

$

Currently unavailable

Cub Cadet 717-3277

Shim, Bearing Retainer, .0149

$

$

Not available

Cub Cadet 717-3278

Shim, Bearing Retainer, .0299

$

$

Not available

16

Cub Cadet 717-3196

Housing, Reduction Drive

Note: (Includes Ref No. 18)

$

$

Not available

Cub Cadet 710-0860

Screw, Hex Cap, 7/16-14 X 1.12 Lg GR5

$

$

Not available

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0845

Screw, Hex Cap, 7/16-14 X 6.12 Lg GR5

$

$

Not available

Cub Cadet 736-0141

Washer, Spring, .445 X .75 X .017 Thk
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 723-3034

Gasket Eliminator, 24 cc tube

$

$

Not available

Cub Cadet 723-3036

Primer, Gasket, 6 oz can

$

$

Currently unavailable

Cub Cadet 723-3035

Remover, Gasket, 12 oz can

$

$

Currently unavailable

17

Cub Cadet 741-0360

Bearing, Ball
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

18

Cub Cadet 741-0362

Bearing, Needle
(Superseded to 941-0362)

$109.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0847

Screw, Set, 1/2-20 X 7/16 Lg

$

$

Not available

20

Cub Cadet 732-0424

Spring, Detent

$8.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 741-0359

Ball, Detent, 3/8 Dia

$

$

Not available

22

Cub Cadet 737-0177

Plug, Drain

Note: NOTE: Use Teflon Sealing Tape

$

$

Not available

23

Cub Cadet 717-3051

Housing, Gear

$

$

Not available

Cub Cadet 723-3034

Gasket Eliminator, 24 cc tube

$

$

Not available

Cub Cadet 723-3036

Primer, Gasket, 6 oz can

$

$

Currently unavailable

Cub Cadet 723-3035

Remover, Gasket, 12 oz can

$

$

Currently unavailable

24

Cub Cadet 717-3207

Fork, Shift - LH
(Superseded to 717-3207A)

$

$

Not available

25

Cub Cadet 717-3208

Fork, Shift - RH

$

$

Currently unavailable
