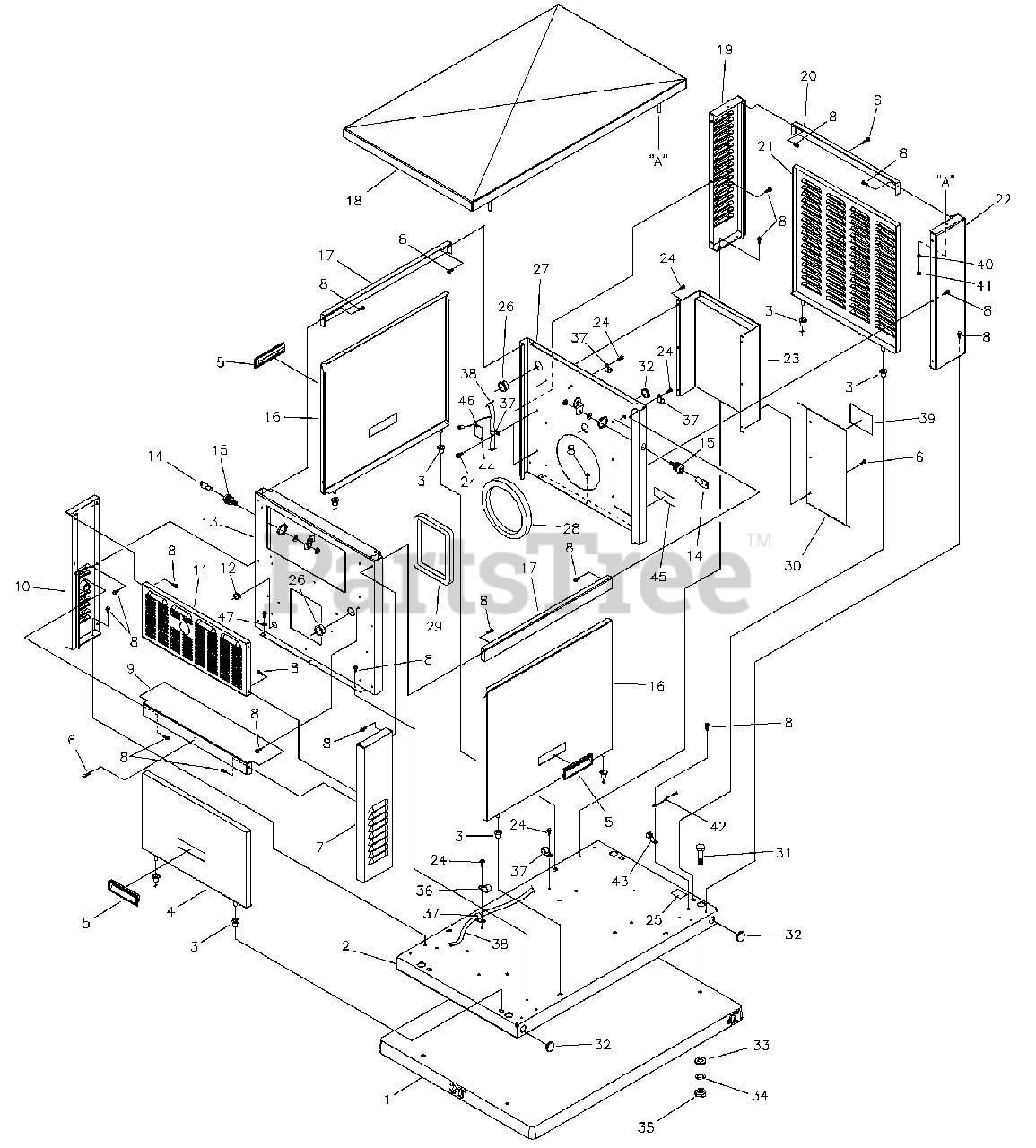

1535-0 - Briggs & Stratton 8kW Home Standby Generator Enclosure Parts Diagram

8kW Home Standby Generator

Enclosure Parts Diagram

  • Title

1

Briggs & Stratton 186564

PAD, Fountation Base w/ Holes
(Superseded to 186104GS)

$278.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton H185972

BASE, Mounting
(Superseded to H185972GS)

$566.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 186061

BUSHING, Stem
(Superseded to 186061GS)

$18.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton H185971

DOOR,Alternator Side
(Superseded to 191410GS)

$154.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 186049

HANDLE, Door, Recessed Pull
(Superseded to 186049GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 186840

PPHMS, M5.5, Stainless Steel
(Superseded to 186840GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton H185962

CORNER, Alt. Air Inlet Right
(Superseded to 191408GS)

$224.99

$

Usually ships in 2-12 days

0

8

B4300

SWAG BOLT, 1/4" - 20

$

$

Not available

9

Briggs & Stratton H185968

BAFFLE, Horizontal, Alt. Side
(Superseded to H185968GS)

$178.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton H185961

CORNER, Alt. Air Inlet, Left
(Superseded to 191409GS)

$201.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton H185965

PANEL, Muffler Air Out
(Superseded to H185965GS)

$224.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 186582

BUSHING, Snap 11/16" I.D.
(Superseded to 186582GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton H185966

BULKHEAD, Alternator Side
(Superseded to H185966GS)

$154.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B5053

KEY, Lock
(Superseded to B5053GS)

$9.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 186172

ASSEMBLY, Lock/Doors
(Superseded to 186172GS)

$102.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton H187232

DOOR, with Insulation

$

$

Currently unavailable

17

Briggs & Stratton H186046

RAIL, Support Upper Front/Back
(Superseded to H186046GS)

$103.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton H187234

ROOF, with Insulation

$

$

Currently unavailable

19

Briggs & Stratton H185963

CORNER, Engine Air Inlet Right
(Superseded to H185963GS)

$217.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton H186047

RAIL, Support Upper Engine Side
(Superseded to H186047GS)

$89.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton H185969

DOOR, Engine Air Inlet
(Superseded to H185969GS)

$267.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton H185964

CORNER, Engine, Left Side
(Superseded to H185964GS)

$193.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton H187235

BAFFLE, with Insulation

$

$

Currently unavailable

24

Briggs & Stratton 74908

TAPTITE, M5
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B4986

DECAL, Ground
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 186173

BUSHING, Snap, 1" I.D.
(Superseded to 186173GS)

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton H185967

BULKHEAD, Engine Side
(Superseded to H185967GS)

$341.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 186065

SEAL, Foam Engine Air Inlet
(Superseded to 186065GS)

$122.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B4889

SEAL, Foam Alternator Air Inlet
(Superseded to B4889GS)

$

$

Not available

30

Briggs & Stratton H186760

COVER, Control Panel
(Superseded to H186760GS)

$116.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 29745

HHCS, 3/8" - 16 x 1"
(Superseded to 29745GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 185976

PLUG, Hole 1-1/8"
(Superseded to 185976GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 22131

FLATWASHER, 3/8"
(Superseded to 22131GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 22237

LOCKWASHER, 3/8"

$

$

Not available

35

Briggs & Stratton 22241

NUT, 3/8"

$

$

Not available

36

Briggs & Stratton 187060

CLAMP, 3/4" Nylon
(Superseded to 192940GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 186202

CLAMP, 1" Nylon
(Superseded to 186202GS)

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 186277

WIRE HARNESS, Engine
(Superseded to 186277GS)

$287.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B5082

DECAL, Danger High Voltage

$

$

Currently unavailable

40

Briggs & Stratton 22097

LOCKWASHER, M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 49813

NUT, M6 x 1.0
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 186790A

WIRE, Ground, To Control Panel
(Superseded to 186790AGS)

$17.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 186345

LUG, Ground
(Superseded to 186345GS)

$13.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 186642

DECAL, LP/Natural Gas

$

$

Currently unavailable

45

Briggs & Stratton 186827

DECAL, Terminal Strip

$

$

Currently unavailable

46

Briggs & Stratton 28739A

TIE WRAP, 4" Black
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 26850

WASHER, Ext. M6 - 1/4" Shakeproof

$

$

Not available

Briggs & Stratton 187008

KIT, Door Seal
(Superseded to 187008GS)

Note: Part Not Illustrated

$29.99

$

Usually ships in 2-12 days

0
