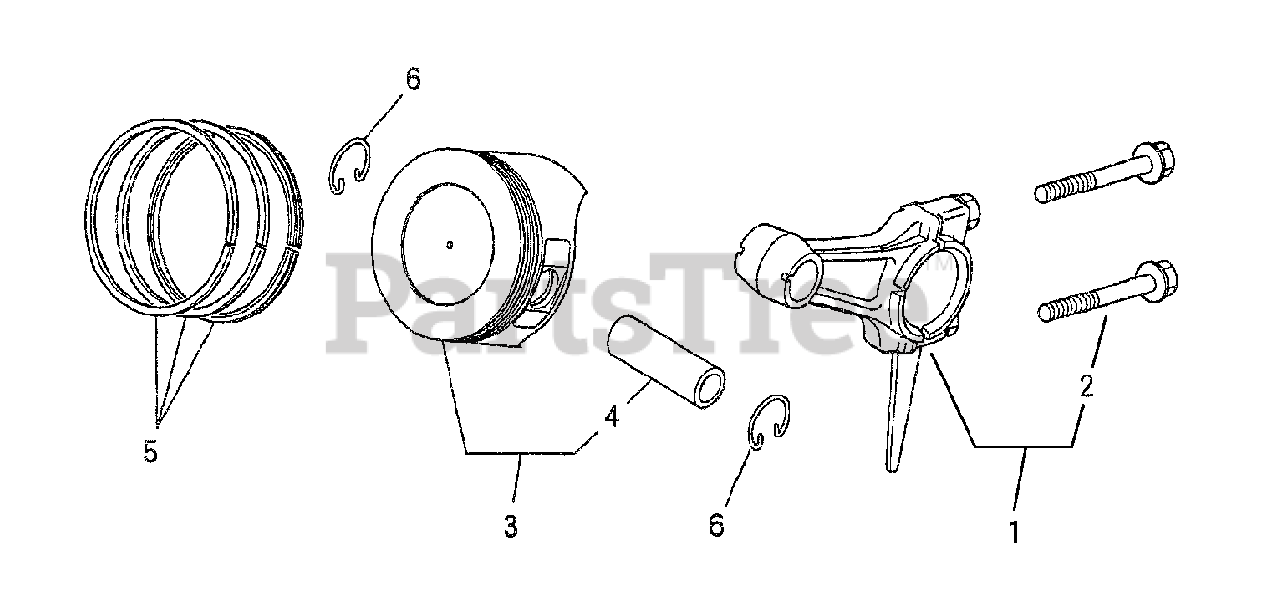

1532-1 - Generac 1,000 Watt Portable Generator Piston/Rod Parts Diagram

1,000 Watt Portable Generator

Piston/Rod Parts Diagram

  • Title

1

Briggs & Stratton 187526GS

ROD, CNNCTNG, STD
(Superseded to 715933)

$78.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 187527GS

ROD, CNNCTNG, US.25

$455.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 187528GS

ROD, CNNCTNG, US.50

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 187529GS

BOLT, CNNCTNG ROD

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187530GS

ASSY, PSTN, STD
(Superseded to 715935)

$109.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187531GS

ASSY, PSTN, OS.25

$148.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187532GS

ASSY, PSTN, OS.50
(Superseded to 715936)

$116.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 187533GS

PIN, PISTON
(Superseded to 715937)

$14.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187534GS

SET, RING, PSTN, STD
(Superseded to 715938)

$41.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187535GS

SET, RING, PSTN, OS.25

$114.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187537GS

SET, RING, PSTN, OS.50
(Superseded to 715939)

$44.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187539GS

CLIP, SPRING, PSTN PIN
(Superseded to 711494)

$4.49

$

Usually ships in 2-12 days

0
