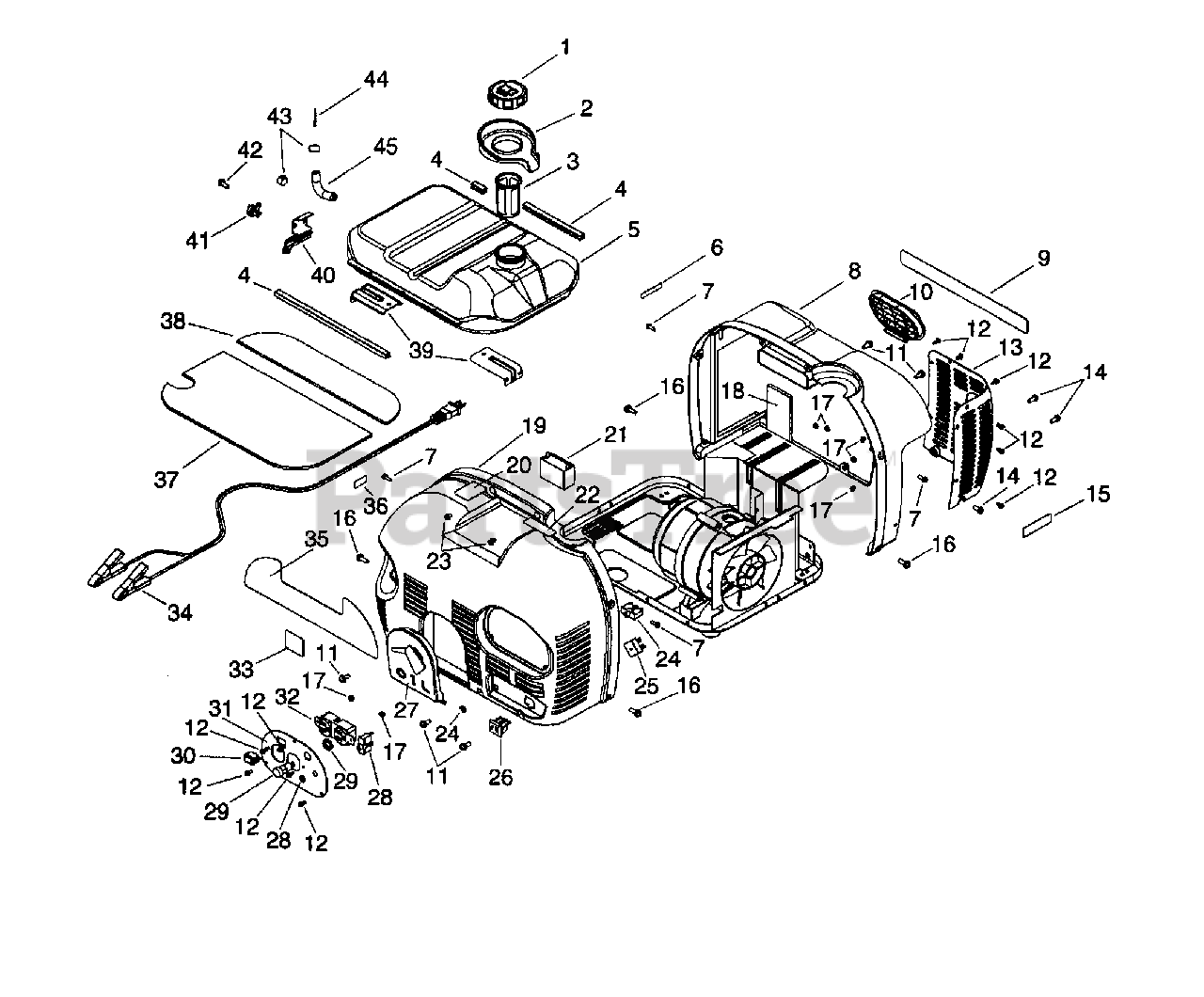

1532-0 - Generac 1,000 Watt Portable Generator Enclosure Parts Diagram

1,000 Watt Portable Generator

Enclosure Parts Diagram

  • Title
1

Briggs & Stratton 187436

CAP, FUEL
(Superseded to 187436GS)

$34.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 187439

PACKING,TANK
(Superseded to 187439GS)

$39.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187438

FLTR, FUEL
(Superseded to 710065)

$16.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 187769

U-PACKING
(Superseded to 187769GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187437

TANK, FUEL, 4.5L
(Superseded to 199733GS)

$176.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187766

DECAL, CHOKE
(Superseded to 187766GS)

$6.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 187756

BOLT, COVER (M5-16)
(Superseded to 187756GS)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 187433

HSG, GEN, MFFLR
(Superseded to 187433GS)

$232.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 187767

DECAL,WARNING

$

$

Not available

10

Briggs & Stratton 187772

COVER, SPARK PLUG
(Superseded to 187772GS)

$19.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187757

BOLT, COVER (M6-16)
(Superseded to 187757GS)

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 187760

PHMS, M4-12 W/FW
(Superseded to 187760GS)

$3.49

$

In Stock, only 1 left!

0

13

Briggs & Stratton 187435

CVR, MFFLR, GEN
(Superseded to 187435GS)

$74.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 187775

BOLT, MFFLR CVR (M6-16)
(Superseded to 187775GS)

$3.49

$

In Stock, only 1 left!

0

15

Briggs & Stratton 187768

DECAL CAUTION HOT
(Superseded to 187768GS)

$8.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 187774

BOLT, COVER (M6-20)
(Superseded to 187774GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 187761

NUT, M4X0.6 W/FW
(Superseded to 187761GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 187463

INSLTN, MFFLR
(Superseded to 187463GS)

$19.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 187432

HSG, GEN
(Superseded to 187432GS)

$217.99

$

Usually ships in 2-12 days

0

20

NSP

DECAL, EMISSIONS

$

$

Not available

21

Briggs & Stratton 187457

CONDENSER, 300V
(Superseded to 187457GS)

$57.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 187765

DECAL, CAUTION FUEL
(Superseded to 187765GS)

$8.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 187759

BOLT, COVER (M5-10)
(Superseded to 187759GS)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 187460

CB, DAISHIN
(Superseded to 187460GS)

$28.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 187462

DIODE, BRIDGE
(Superseded to 187462GS)

$69.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 90418

OUTLET, DC
(Superseded to 90418GS)

$

$

Not available

27

Briggs & Stratton 187773

COVER, OIL GAUGE
(Superseded to 187773GS)

$38.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 187454

CB, 8A, 125V
(Superseded to 187454GS)

$24.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 187453

LAMP, PILOT, 125V
(Superseded to 187453GS)

$27.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 187450

SWITCH, ENG, ON/OFF
(Superseded to 187450GS)

$35.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 187452

CPNL, G1OOOM
(Superseded to 187452GS)

$28.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 187456

RECPTCL, 15A, 125V
(Superseded to 187456GS)

$111.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 187763

DECAL, CAUTION OIL
(Superseded to 187763GS)

$3.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 65787

CABLE, BATTERY CHARGE

$3.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 187762

DECAL, MODEL
(Superseded to 187762GS)

$26.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 187764

DECAL, FUEL SHUTOFF
(Superseded to 187764GS)

$8.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 187447

INSLTN, HTSHLD, TANK #1
(Superseded to 199733GS)

$176.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 187448

INSLTN, HTSHLD, TANK #2
(Superseded to 199733GS)

$176.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 187442

BRKT,TANK, FUEL
(Superseded to 187442GS)

$9.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 187758

BRKT, FUEL COCK
(Superseded to 711546)

$16.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 187443

COCK, FUEL
(Superseded to 711547)

$

$

Not available

42

Briggs & Stratton 187770

PHMS, M5-IOW/FW
(Superseded to 711548)

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 187579

CLIP, FUEL HOSE
(Superseded to 711549)

$4.99

$

In Stock, only 1 left!

0

44

Briggs & Stratton 187440

FLTR, FUEL
(Superseded to 711550)

$8.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 187578

HOSE, FUEL
(Superseded to 715954)

$11.99

$

Usually ships in 2-12 days

0
