1532-0 - Generac 1,000 Watt Portable Generator Carburetor Parts Diagram

1,000 Watt Portable Generator

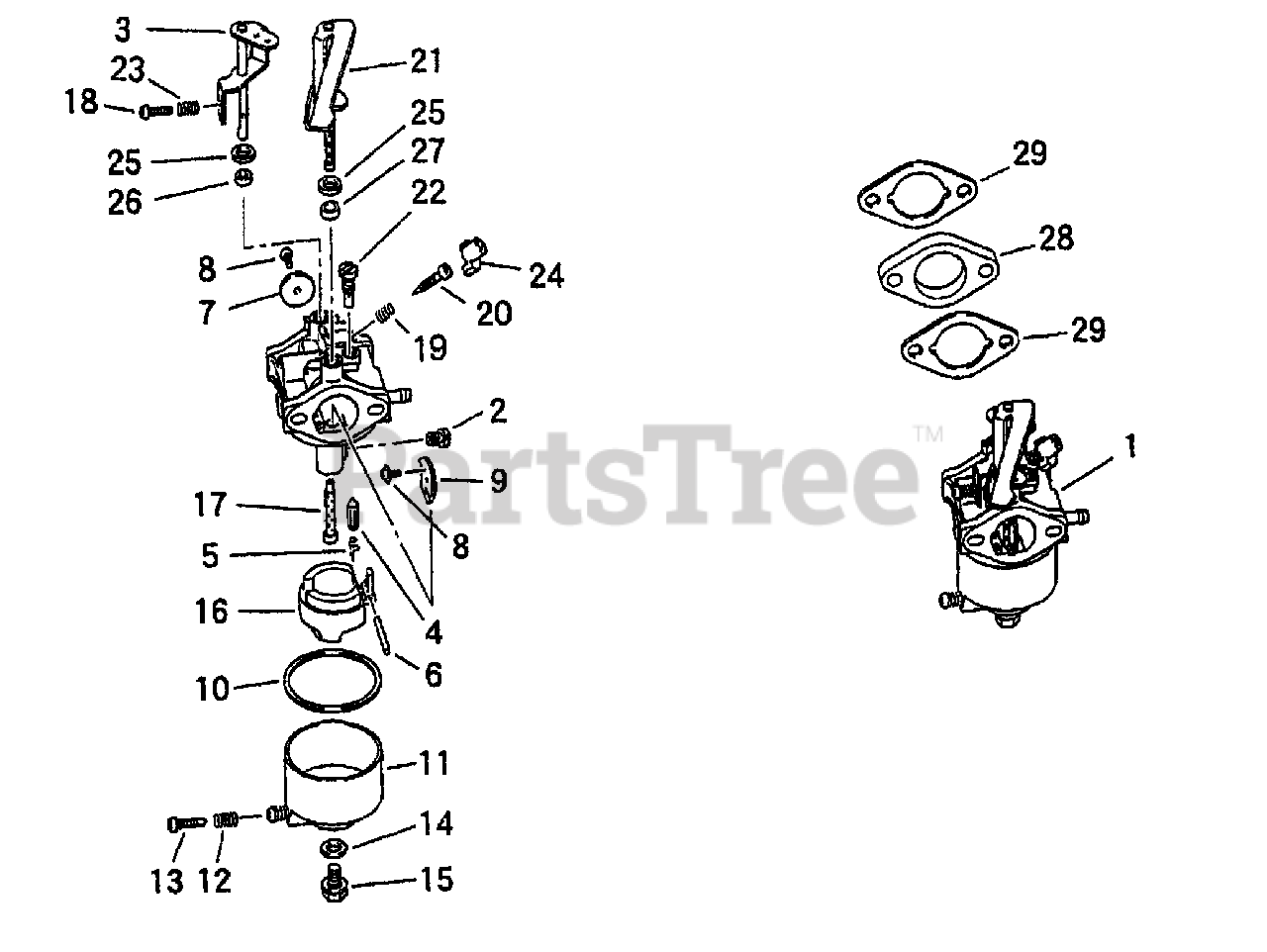

Carburetor Parts Diagram

  • Title

1

Briggs & Stratton 187469

CARB, COMPLETE
(Superseded to 715915)

$172.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 187471

JET, MAIN
(Superseded to 187471GS)

$65.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187476

SHFT,THROTTL
(Superseded to 187476GS)

$79.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 187480

VLV, NEEDLE
(Superseded to 187480GS)

$79.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187482

CLIP, CARB
(Superseded to 187482GS)

$7.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187483

PIN, CARB

$

$

Currently unavailable

7

Briggs & Stratton 187485

VLV,THRTTL
(Superseded to 187485GS)

$32.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 187491

HHCS, CARB
(Superseded to 187491GS)

$11.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 187493

VLV, CHOKE
(Superseded to 187493GS)

$9.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 187495

GSKT, CARB
(Superseded to 711778)

$10.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 187499

CHMBR, FLOAT

$

$

Currently unavailable

12

Briggs & Stratton 187502

SPRING, CARB
(Superseded to 187502GS)

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 187509

HHCS, CARB
(Superseded to 187509GS)

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 187511

GSKT, CARB
(Superseded to 711779)

$11.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 187525

BOLT, CARB
(Superseded to 187525GS)

$30.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 187536

FLOAT, CARE
(Superseded to 187536GS)

$78.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 187538

NZZL, MAIN, CARE
(Superseded to 187538GS)

$90.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 187542

HHCS, CARB
(Superseded to 187542GS)

$12.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 187502

SPRING, CARB
(Superseded to 187502GS)

$7.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 187547

ADJSTR, CARB
(Superseded to 715293)

$39.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 187548

LEVER, CHOKE
(Superseded to 187548GS)

$43.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 187549

JET, PILOT
(Superseded to 187549GS)

$89.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 187550

SPRING, CARB
(Superseded to 187550GS)

$13.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 187551

CAP, CARB
(Superseded to 187551GS)

$45.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 187552

PACKING, CARB
(Superseded to 187552GS)

$8.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 187553

SEAL, CARB
(Superseded to 187553GS)

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 187554

SEAL, CARB
(Superseded to 187554GS)

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 187556

INSLTR, CARB
(Superseded to 715940)

$13.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 187504

GSKT, CARB
(Superseded to 711499)

$3.49

$

In Stock, only 1 left!

0
