1530 MDS (1696828-00) - Briggs & Stratton 30" Snow Thrower, 11.5 Gross TP (2018) Auger Drive Group Parts Diagram

30" Snow Thrower, 11.5 Gross TP

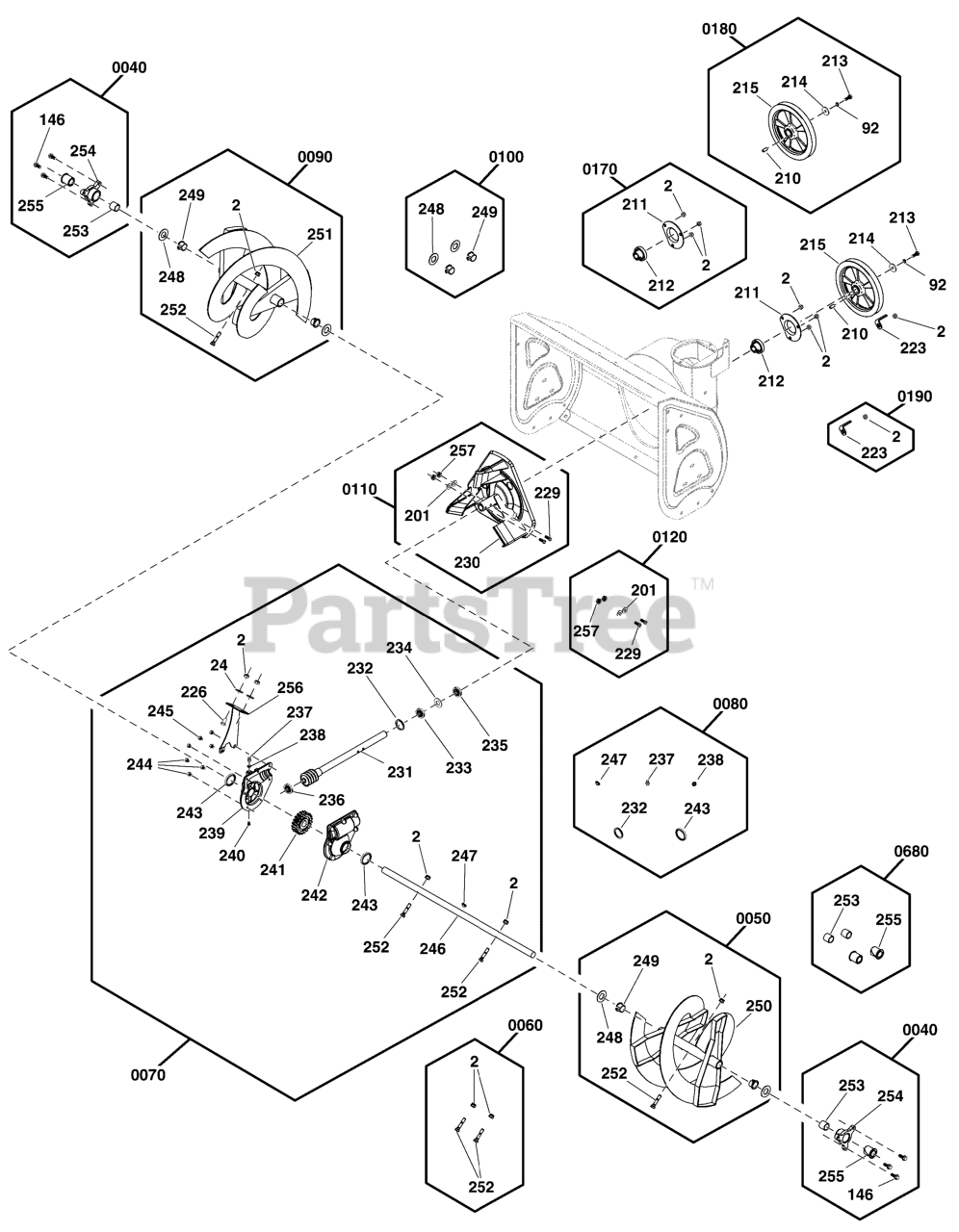

Auger Drive Group Parts Diagram

  • Title

0040

Murray 707553

KIT, Mounting Plate, Auger Housing

Note: (Incl. Ref. Nos. 146, 253, 254, 255)

$48.99

$

Usually ships in 2-12 days

0

146

SCREW, Hex Head, M8 X 16

$

$

Not available

253

BEARING, Sleeve

$

$

Not available

254

RETAINER, Auger Shaft

$

$

Not available

255

BEARING, Auger Shaft

$

$

Not available

0050

Murray 771732

KIT, Auger Assembly, Left

Note: (Incl. Ref. Nos. 2, 248, 249, 251, 252)

$149.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

248

WASHER, Flat

$

$

Not available

249

BEARING, Auger Shaft

$

$

Not available

250

AUGER, 30", Left, Black

$

$

Not available

252

BOLT, Hex, M8 X 38

$

$

Not available

0060

Murray 707555

KIT, SHEAR PIN, AUGER

Note: (Incl. Ref. Nos. 2, 252)

$12.99

$

In Stock, Qty 16

0

2

NUT, Lock, M8

$

$

Not available

252

BOLT, Hex, M8 X 38

$

$

Not available

0070

Murray 771723

KIT, Gear Box, Auger

Note: (Incl. Ref. Nos. 2, 24, 226, 231, 232, 233, 234, 235, 236, 237, 238, 239, 240, 241, 242, 243, 244, 245, 246, 247, 252, 256)

$283.99

$

In Stock, only 1 left!

0

2

NUT, Lock, M8

$

$

Not available

24

WASHER, 8x22x2, Flat

$

$

Not available

226

BOLT, Carriage, M8 X 18

$

$

Not available

231

SHAFT, Impeller Wormgear

$

$

Not available

232

SEAL, Oil

$

$

Not available

233

BEARING

$

$

Not available

234

WASHER, Flat

$

$

Not available

235

BEARING

$

$

Not available

236

BEARING

$

$

Not available

237

ZERK, Grease Fitting

$

$

Not available

238

WASHER, Wave

$

$

Not available

239

GEAR CASE, Right

$

$

Not available

240

BOLT, Phillips Head, M5 X 10

$

$

Not available

241

GEAR, Worm

$

$

Not available

242

GEAR CASE, Left

$

$

Not available

243

SEAL, Oil

$

$

Not available

244

SCREW, Hex Head, M6 X 20

$

$

Not available

245

BOLT, Hex, M6 X 25

$

$

Not available

246

SHAFT, Auger Out

$

$

Not available

247

KEY, WOODRUFF

$

$

Not available

252

BOLT, Hex, M8 X 38

$

$

Not available

256

PLATE, Auger Support

$

$

Not available

0080

Murray 707558

KIT, Seal, Gear Box
(Superseded to 84001647)

Note: (Incl. Ref. Nos. 232, 237, 238, 243, 247)

$7.49

$

Usually ships in 2-12 days

0

232

SEAL, Oil

$

$

Not available

237

ZERK, Grease Fitting

$

$

Not available

238

WASHER, Wave

$

$

Not available

243

SEAL, Oil

$

$

Not available

247

KEY, WOODRUFF

$

$

Not available

0090

Murray 771731

KIT, Auger Assembly, Right

Note: (Incl. Ref. Nos. 2, 248, 249, 250, 252)

$164.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

248

WASHER, Flat

$

$

Not available

249

BEARING, Auger Shaft

$

$

Not available

251

AUGER, 30", Right, Black

$

$

Not available

252

BOLT, Hex, M8 X 38

$

$

Not available

0100

Murray 707554

KIT, Auger Shaft Hardware

Note: (Incl. Ref. Nos. 248, 249)

$20.99

$

Usually ships in 2-12 days

0

248

WASHER, Flat

$

$

Not available

249

BEARING, Auger Shaft

$

$

Not available

0110

Murray 707560

KIT, Impeller Assembly

Note: (Incl. Ref. Nos. 201, 229, 230, 257)

$93.99

$

In Stock, only 4 left!

0

201

WASHER, 6x12x.7, Flat

$

$

Not available

229

BOLT, Hex, M6 X 38

$

$

Not available

230

IMPELLER

$

$

Not available

257

NUT, Lock, M6

$

$

Not available

0120

Murray 707561

KIT,Shear Pin, Impeller

Note: (Incl. Ref. Nos. 201, 229, 257)

$15.99

$

In Stock, only 2 left!

0

201

WASHER, 6x12x.7, Flat

$

$

Not available

229

BOLT, Hex, M6 X 38

$

$

Not available

257

NUT, Lock, M6

$

$

Not available

0170

Murray 770800

KIT, Bearing Hardware, Auger Pulley

Note: (Incl. Ref. Nos. 2, 211, 212)

$29.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

211

RETAINER, Ball Bearing

$

$

Not available

212

BEARING, Ball

$

$

Not available

0180

Murray 770803

KIT, Auger Pulley

Note: (Incl. Ref. Nos. 92, 210, 213, 214, 215)

$64.99

$

Usually ships in 2-12 days

0

92

WASHER, Lock, M8

$

$

Not available

210

KEY, Flat, 6 X 6 X 17

$

$

Not available

213

SCREW, Hex Head, M8X20

$

$

Not available

214

WASHER, Flat, 8 X 28 X 3

$

$

Not available

215

PULLEY

$

$

Not available

0190

Murray 707547

KIT, BELT GUIDE, AUGER

Note: (Incl. Ref. Nos. 2, 223)

$11.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

223

GUIDE, Belt

$

$

Not available

0680

Murray 707552

KIT, Bearing, Mounting Plate

Note: (Incl. Ref. Nos. 253, 255)

$30.99

$

Usually ships in 2-12 days

0

253

BEARING, Sleeve

$

$

Not available

255

BEARING, Auger Shaft

$

$

Not available
