1529 MD (1696563-00) - Briggs & Stratton 29" Snow Thrower, 14.5 Gross TP (2015) Discharge Chute Group Parts Diagram

29" Snow Thrower, 14.5 Gross TP

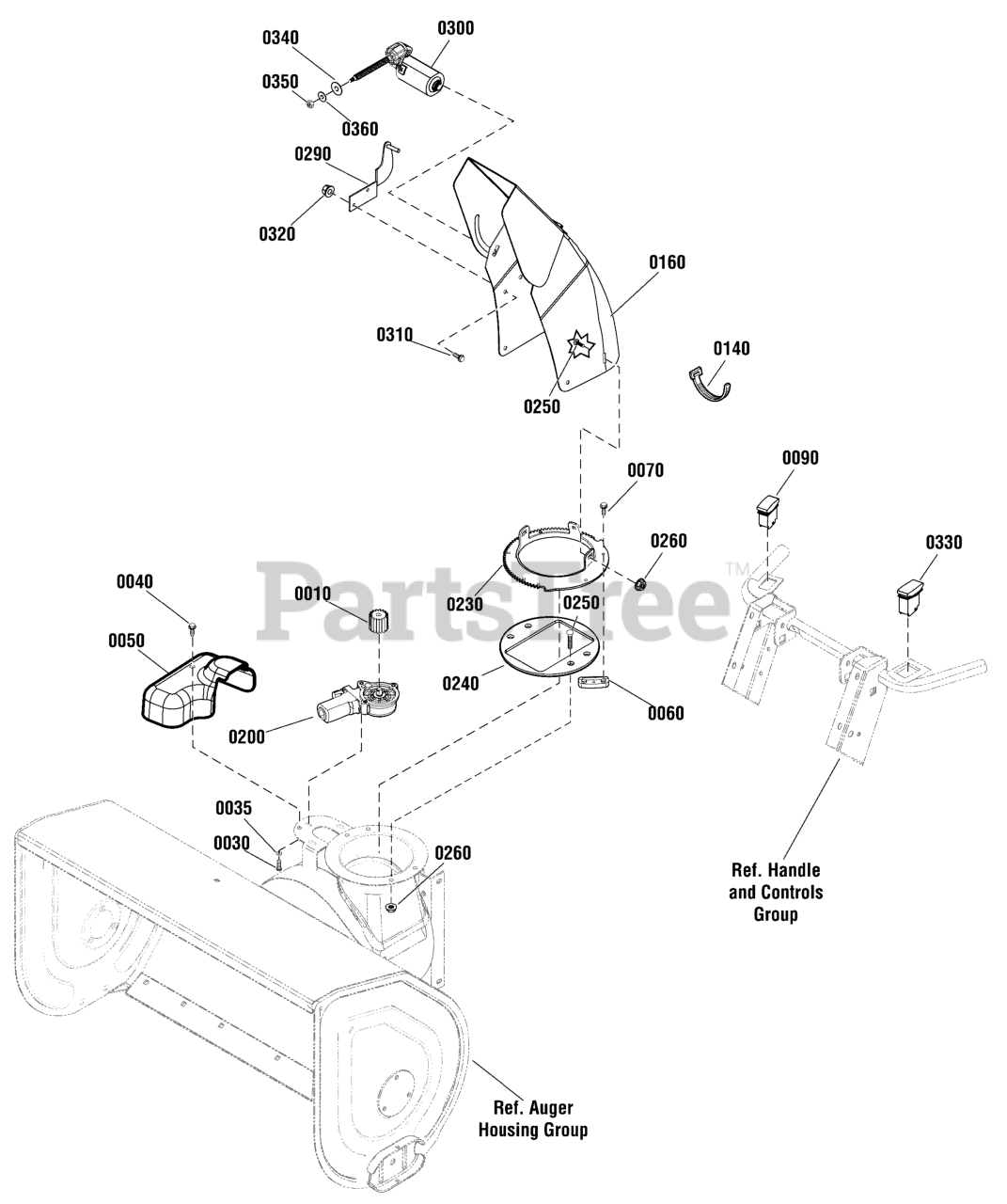

Discharge Chute Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION

$17.99

$

In Stock, Qty 7

0

0030

Murray 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 15

0

0035

Murray 7091552SM

WASHER, Flat, 7/32

$3.99

$

In Stock, Qty 16

0

0040

Murray 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 11

0

0050

Murray 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 1 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$

$

Not available

0070

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 12

0

0090

Murray 1737378YP

SWITCH, Chute Rotation
(Superseded to 1687904)

Note: (Use on Serial Numbers 2016539454 and Below)

$82.99

$

In Stock, Qty 20+

0

0090

Murray 1752240YP

SWITCH, Chute Rotation
(Superseded to 1687904)

Note: (Use on Serial Numbers 2016539455 to 2017351201)

$82.99

$

In Stock, Qty 20+

0

0090

Murray 709954

SWITCH, Chute Rotation

Note: (Use on Serial Numbers 2017351202 and Above)

$46.99

$

In Stock, Qty 6

0

0140

Murray 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0160

Murray 1752841AYP

CHUTE
(Superseded to 1752841BMYP)

$192.99

$

Usually ships in 2-12 days

0

0200

Murray 1739309YP

MOTOR, Chute Rotation
(Superseded to 708703)

$86.99

$

In Stock, Qty 10

0

0230

Murray 1737962BMYP

GEAR, Chute

$40.99

$

Usually ships in 2-12 days

0

0240

Murray 1737411YP

ADAPTER, Chute Ring

$19.99

$

Usually ships in 2-12 days

0

0250

Murray 703101

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, only 3 left!

0

0260

Murray 703061

NUT, Hex KEPS, 1/4-20

$3.49

$

In Stock, Qty 13

0

0290

Murray 1738267BMYP

BRACKET, Weld Stud

$30.99

$

Usually ships in 2-12 days

0

0300

Murray 1737941YP

MOTOR, Chute Deflector

$143.99

$

In Stock, Qty 8

0

0310

Murray 1960715SM

SCREW, Truss Head, Torx Drive, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0320

Murray 1960694SM

NUT, Hex Flange, ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0330

Murray 1737379YP

SWITCH, Chute Deflector
(Superseded to 1687905)

Note: (Use on Serial Numbers 2017351201 and Below)

$82.99

$

In Stock, Qty 16

0

0330

Murray 709955

SWITCH, Chute Deflector

Note: (Use on Serial Numbers 2017351202 and Above)

$35.99

$

Usually ships in 2-12 days

0

0340

Murray 1738244YP

WASHER, Rubber

$4.49

$

In Stock, Qty 11

0

0350

Murray 1738245YP

NUT, LH
(Superseded to 703143)

$3.49

$

In Stock, Qty 6

0

0360

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

1090

Murray 1931317SM

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

1100

Murray 1960685SM

NUT, Hex KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0
