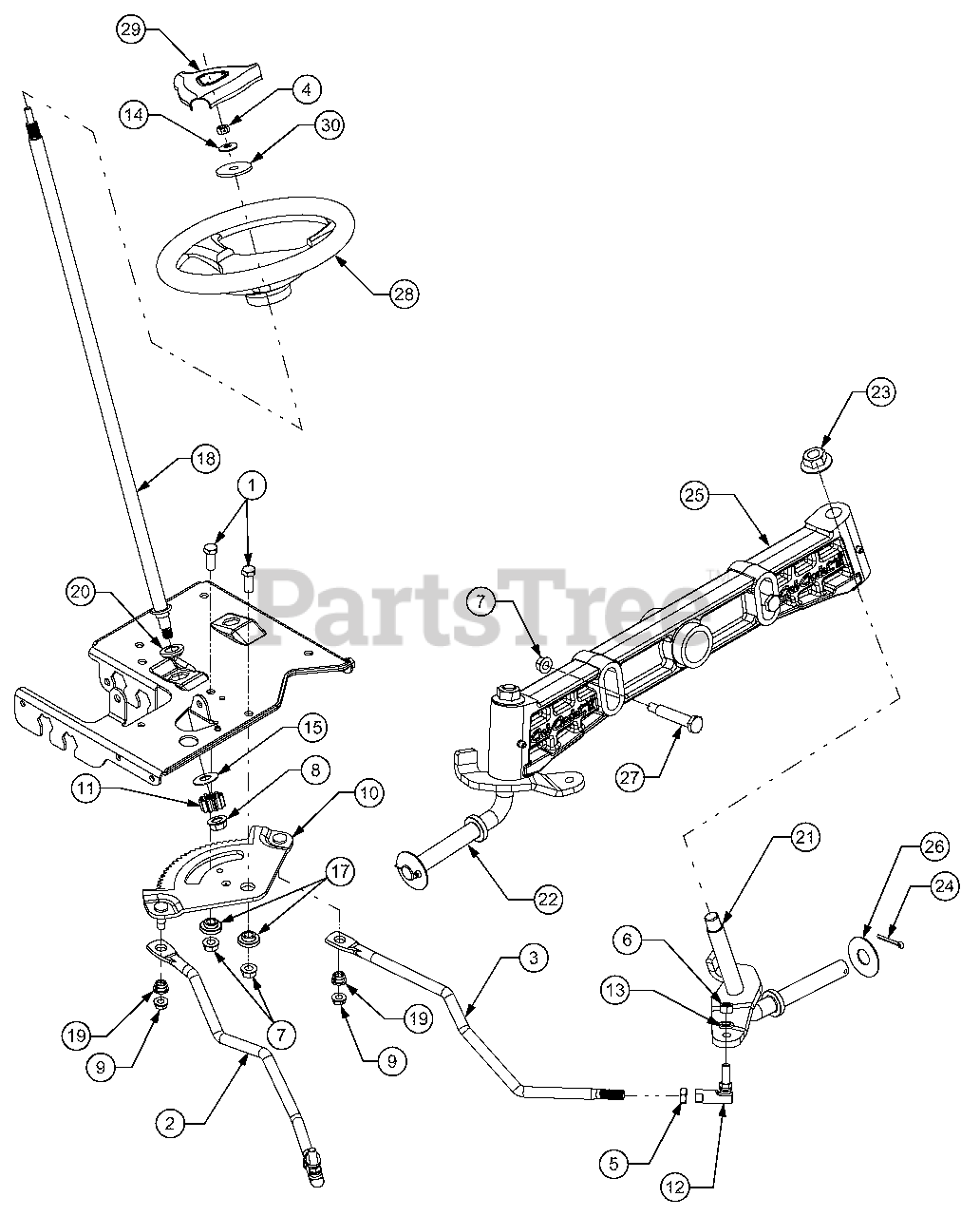

1529 (13A-261H100) - Cub Cadet Garden Tractor Steering Parts Diagram

Garden Tractor

Steering Parts Diagram

  • Title

1

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 711-1408

Link, Drag, RH

$

$

Not available

3

Cub Cadet 711-1409A

Link, Drag, LH

$

$

Not available

4

Cub Cadet 712-0237

Nut, Hex Lock, 5/16-24

$4.99

$

In Stock, only 4 left!

0

5

Cub Cadet 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0241

Nut, Hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 13

0

7

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 717-1550D

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

Cub Cadet 737-3007

Grease, Alvania Ep 2

$

$

Currently unavailable

11

Cub Cadet 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

Cub Cadet 723-0610

Ball Joint, 7/16-20

$

$

Not available

13

Cub Cadet 736-0169

Washer, Lock, 3/8 , Regular Duty

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-3084

Washer, Flat, .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 738-0372B

Spacer, Shoulder, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 19

0

18

Cub Cadet 738-1194

Shaft, Steering, .625 OD x 25.00 Lg

$

$

Not available

19

Cub Cadet 741-0475

Bushing, Plastic, .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 741-0656

Bearing, Hex Flange, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet 638-04001

Axle Assembly, LH
(Superseded to 938-04001)

$

$

Not available

22

Cub Cadet 638-04000

Axle Assembly, RH
(Superseded to 938-04000)

$

$

Not available

23

Cub Cadet 712-0417A

Nut, Hex, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0162

Pin, Cot, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 719-0583

Axle, Pivot, Cast .750 Dia

$

$

Not available

26

Cub Cadet 736-0866

Washer, Flat, .755 x 1.92 x.060

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 738-1011

Spacer, Shoulder, .500 x 2.230, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

28

Cub Cadet 731-3209

Wheel, Steering, Soft Grip, Three Spoke

$

$

Not available

29

Cub Cadet 731-3210

Cover, Steering Wheel
(Superseded to 731-06459)

$21.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-04062

Washer, Flat, .344 x 1.5 x .10
(Superseded to 936-04062)

$

$

Not available
