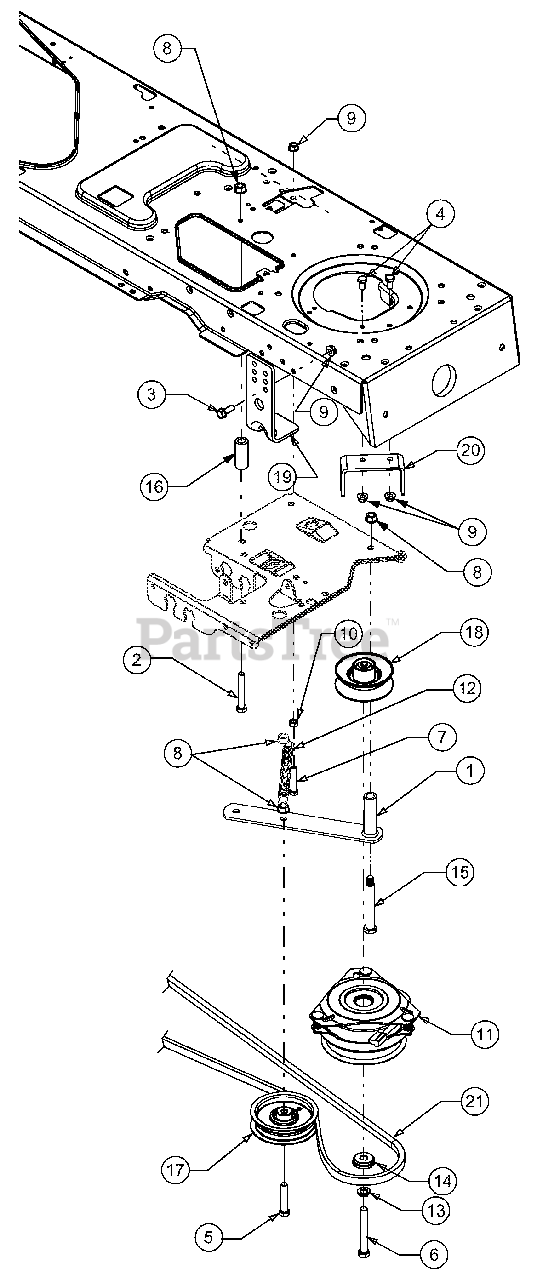

1529 (13A-261H100) - Cub Cadet Garden Tractor Power Take-Off (PTO) System Parts Diagram

Garden Tractor

Power Take-Off (PTO) System Parts Diagram

  • Title
1

Cub Cadet 683-0301

Bracket, Idler

Variations

Cub Cadet 683-0301-0637

IDLER BRACKET ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-0859

Screw, 3/8-16, 2.5 GR5

$6.99

$

In Stock, Qty 16

0

3

Cub Cadet 710-1238

Screw, 5/16-18, .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3025

Screw, 5/16-18 x .625 GR5

$3.99

$

In Stock, Qty 8

0

5

Cub Cadet 710-3144

Screw, 3/8-16, 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3157

Screw, 7/16-20 x 3.25 GR5
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3180

Screw, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 11

0

8

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3010

Nut, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 717-1709

Clutch, Electric PTO
(Superseded to 917-1709)

$609.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 732-0978

Spring, Extension .62 x 5.622

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0171

Washer, Lock, 7/16, Regular Duty

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 738-0785

Spacer, Shoulder, 1.38 x .445 x .36
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 9

0

15

Cub Cadet 738-0982

Screw, Shoulder, .498 x 3.245: 3/8-16

$14.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 748-0415B

Spacer, 3/8 x .635 x 1.54

$7.49

$

In Stock, Qty 10

0

17

Cub Cadet 756-0627B

Pulley, Idler, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

18

Cub Cadet 756-0978A

Pulley, Engine
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 13

0

19

Variations

Cub Cadet 783-0891B-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0665

Deck Up-Stop Bracket - YARDMAN GREEN (0665)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0498

USE 783-04467 BRACKET-DECK UP - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0650

USE 783-04467-0650 BRACKET-DE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0891B-0716

USE 783-04467-0716 BRACKET-DE - CUB YELLOW-99 (0716)

$

$

Not available

$30.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 783-1003

Bracket, Clutch
(Superseded to 783-1003-0637)

Variations

Cub Cadet 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 754-04011

Belt, V-type
(Superseded to 954-04011)

$53.99

$

In Stock, only 1 left!

0
