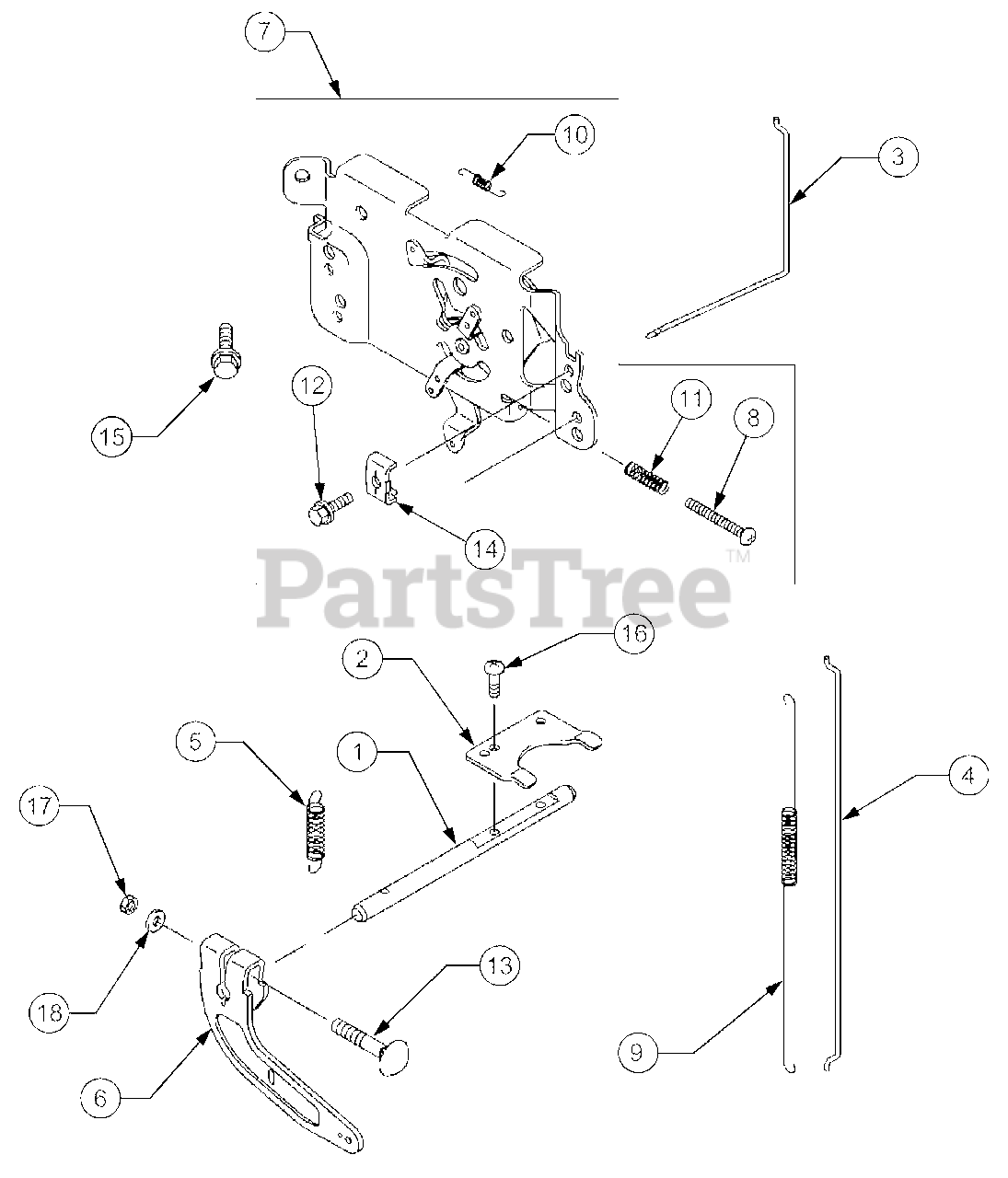

1529 (13A-261H100) - Cub Cadet Garden Tractor Engine Control Parts Diagram

Garden Tractor

Engine Control Parts Diagram

  • Title

1

Cub Cadet KM-13107-7010

Shaft

$12.99

$

In Stock, Qty 5

0

2

Cub Cadet KM-13271-7018

Plate
(Superseded to KM-13271-7032)

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet KM-16169-7010

Link, Choke

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KM-16171-7001

Link

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet KM-39129-7003

Spring, Governor

$4.99

$

In Stock, only 4 left!

0

6

Cub Cadet KM-49103-7004

Arm, Governor

$7.99

$

In Stock, only 2 left!

0

7

Cub Cadet KM-49113-7011

Panel Comp, Control
(Superseded to KM-49113-7052)

$32.99

$

In Stock, only 1 left!

0

8

Cub Cadet KM-92009-7007

Screw, 4x35

$0.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-92145-7003

Spring

$2.99

$

In Stock, only 2 left!

0

10

Cub Cadet KM-92145-7004

Spring
(Superseded to KM-92145-2180)

$0.99

$

In Stock, only 2 left!

0

11

Cub Cadet KM-92145-7005

Spring

$0.99

$

In Stock, only 2 left!

0

12

Cub Cadet KM-92150-2182

Bolt, 5x18

$0.99

$

In Stock, Qty 10

0

13

Cub Cadet KM-92153-7005

Bolt, 6x35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, Qty 9

0

14

Cub Cadet KM-92170-7001

Clamp

$2.99

$

In Stock, only 3 left!

0

15

Cub Cadet KM-130B0612

Bolt, Flanged
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-214B0408

Screw, Pan
(Superseded to KM-214AA0408)

$3.99

$

In Stock, Qty 5

0

17

Cub Cadet KM-311B0600

Nut, Hex
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 16

0

18

Cub Cadet KM-411B0600

Washer, Plain
(Superseded to KM-411AA0600)

$4.49

$

In Stock, only 2 left!

0
