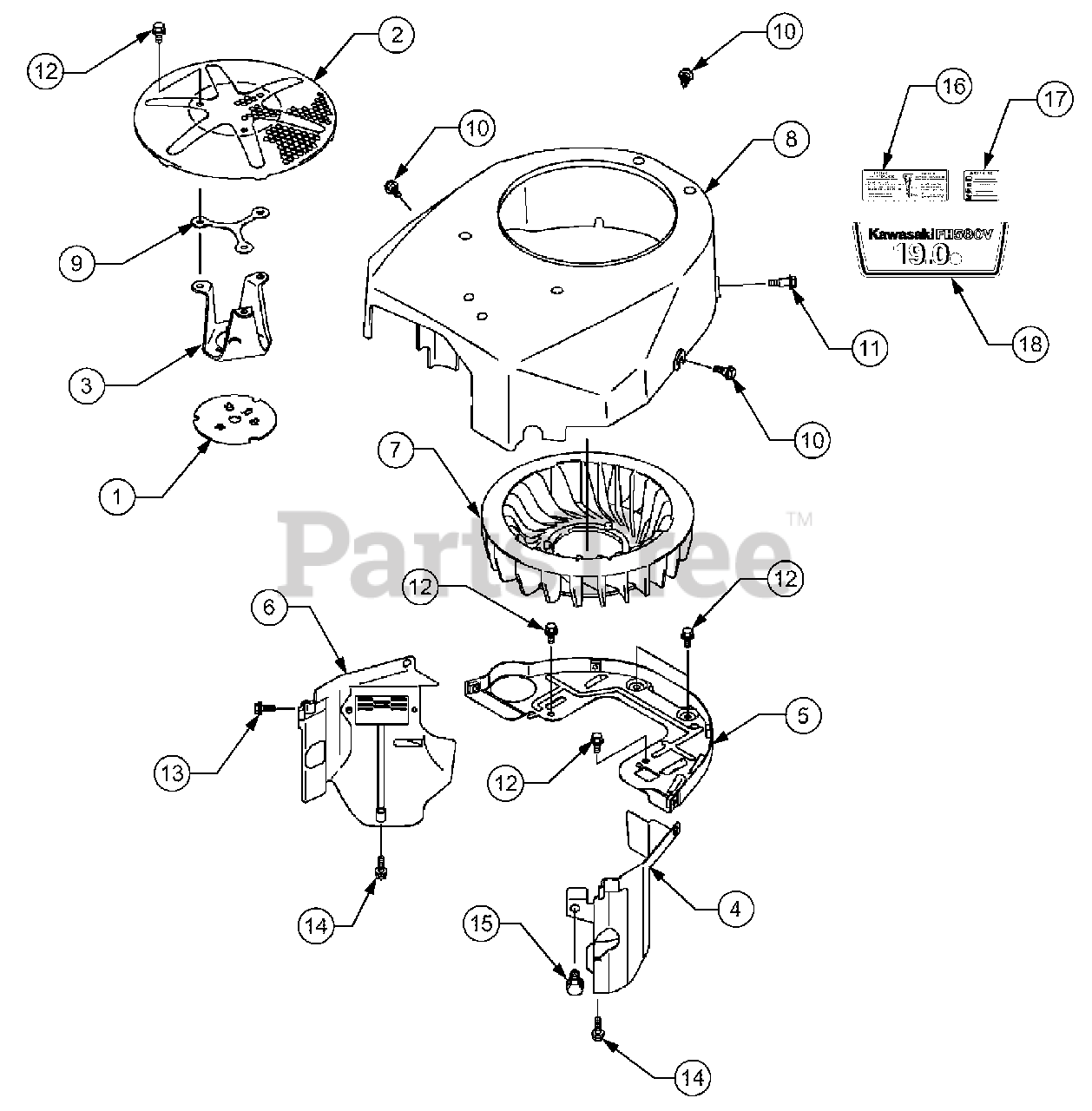

1529 (13A-261H100) - Cub Cadet Garden Tractor Cooling Parts Diagram

Garden Tractor

Cooling Parts Diagram

  • Title

1

Cub Cadet KM-13270-7007

Plate

$5.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-14037-7010

Screen
(Superseded to KM-14037-70209H)

$33.99

$

In Stock, Qty 12

0

3

Cub Cadet KM-23062-7010

Bracket, Comp

$10.99

$

In Stock, Qty 5

0

4

Cub Cadet KM-49089-7002

Shroud, Engine

$28.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-49089-7032

Shroud, Engine

$32.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-49089-7034

Shroud, Engine

$26.99

$

In Stock, only 1 left!

0

7

Cub Cadet KM-59041-7001

Fan
(Superseded to KM-59041-0020)

$19.99

$

In Stock, Qty 20+

0

8

Cub Cadet KM-59066-7011

Housing, Fan

$

$

Not available

9

Cub Cadet KM-92026-7007

Spacer

$5.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-92153-7007

Bolt

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet KM-92153-7008

Bolt
(Superseded to KM-92154-2823)

$0.99

$

In Stock, Qty 6

0

12

Cub Cadet KM-130B0612

Bolt, Flanged
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

13

Cub Cadet KM-130B0616

Bolt, Flanged
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 2 left!

0

14

Cub Cadet KM-130B0625

Bolt, Flanged
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

15

Cub Cadet KM-130B0816

Bolt, Flanged
(Superseded to KM-130BA0816)

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet KM-56033-7002

Label, Manual
(Superseded to KM-56033-7001)

$1.49

$

In Stock, Qty 12

0

17

Cub Cadet KM-56070-7001

Label, Warning
(Superseded to KM-56071-0216)

$2.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-56080-7020

Label, Brand

$

$

Not available
