1529 (13A-261H100) - Cub Cadet Garden Tractor Carburetor/Intake Manifold Parts Diagram

Garden Tractor

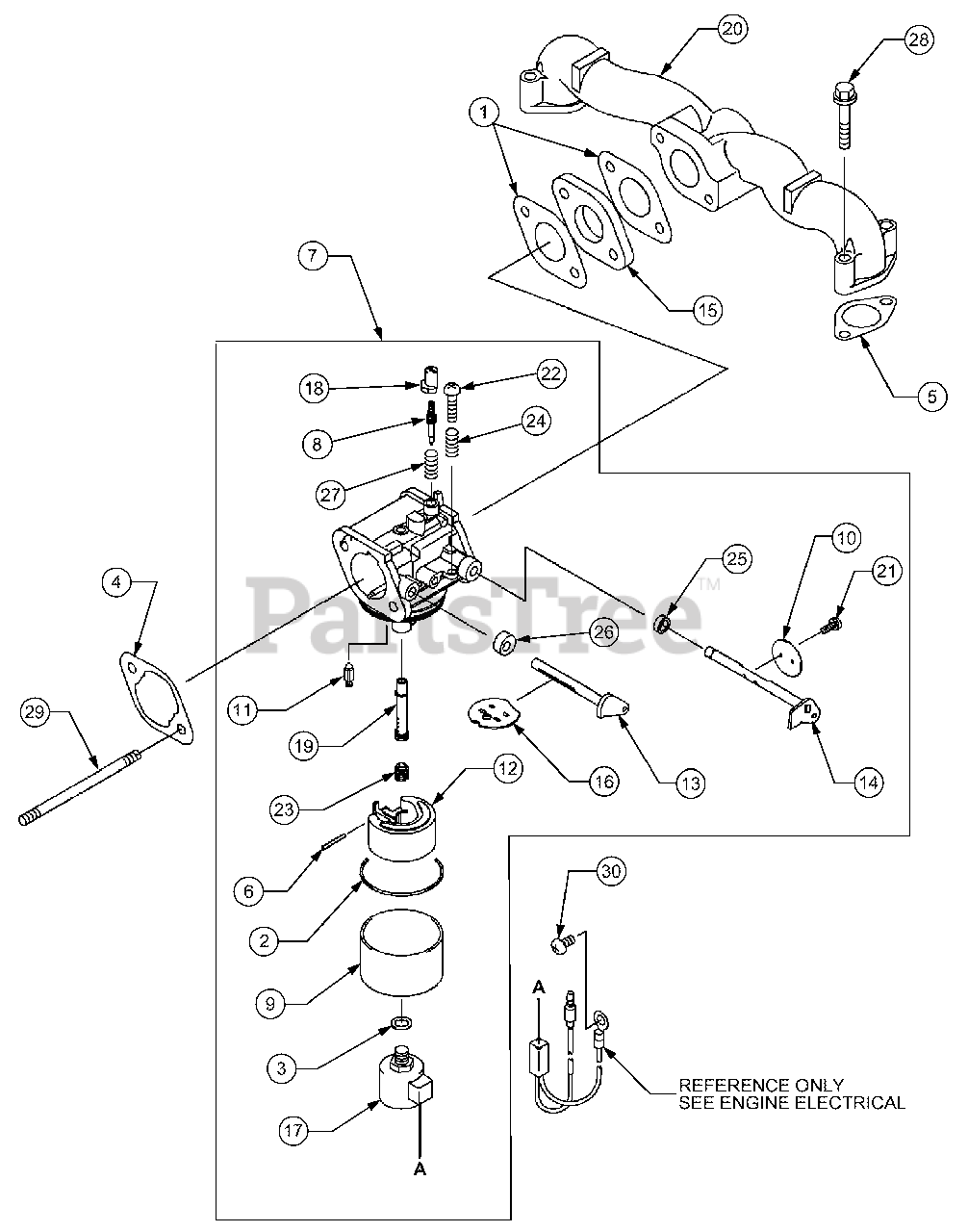

Carburetor/Intake Manifold Parts Diagram

  • Title

1

Cub Cadet KM-11061-7004

Gasket, Insulator

$2.49

$

In Stock, Qty 9

0

2

Cub Cadet KM-11061-7009

Gasket, Chamber

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11061-7010

Gasket

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11061-7018

Gasket, Air Cleaner

$3.99

$

In Stock, Qty 5

0

5

Cub Cadet KM-11061-7019

Gasket

$2.49

$

In Stock, Qty 17

0

6

Cub Cadet KM-13107-7018

Shaft

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet KM-15003-7081

Carburetor Assy

$361.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-16014-7004

Screw, Pilot Air
(Superseded to KM-16014-7005)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-16020-7003

Chamber, Float

$14.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-16025-7006

Valve, Throttle

$17.99

$

In Stock, Qty 5

0

11

Cub Cadet KM-16030-7003

Valve, Float

$20.99

$

In Stock, Qty 15

0

12

Cub Cadet KM-16031-7002

Float

$28.99

$

In Stock, Qty 20+

0

13

Cub Cadet KM-16041-7016

Shaft, Carburetor Choke

$15.99

$

In Stock, only 1 left!

0

14

Cub Cadet KM-16041-7018

Shaft, Carburetor Throttle

$22.99

$

In Stock, Qty 5

0

15

Cub Cadet KM-16073-7007

Insulator
(Superseded to KM-16073-0876)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet KM-16186-7004

Valve, Choke

$13.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-21188-7002

Solenoid

$171.99

$

In Stock, only 2 left!

0

18

Cub Cadet KM-39076-7001

Limiter

$8.49

$

In Stock, only 2 left!

0

19

Cub Cadet KM-49121-7004

Nozzle, Main

$34.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KM-59076-7001

Manifold, Intake
(Superseded to KM-59076-7017)

$

$

Not available

21

Cub Cadet KM-92009-2083

Screw

$2.49

$

In Stock, Qty 5

0

22

Cub Cadet KM-92009-2349

Screw

$1.49

$

In Stock, only 3 left!

0

23

Cub Cadet KM-92063-7037

Jet, Main, #105

$16.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KM-92081-2234

Spring

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet KM-92093-2100

Seal

$3.49

$

In Stock, Qty 20+

0

26

Cub Cadet KM-92093-7003

Seal

$4.49

$

In Stock, only 1 left!

0

27

Cub Cadet KM-92145-7015

Spring

$2.49

$

In Stock, Qty 9

0

28

Cub Cadet KM-130B0635

Bolt, Flanged
(Superseded to KM-130BA0635)

$1.49

$

In Stock, Qty 6

0

29

Cub Cadet KM-172G0685

Bolt, Stud

$2.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KM-214B0510

Screw, Pan

$

$

Not available
