1529 (13A-261H100) - Cub Cadet Garden Tractor Air Filter/Muffler Gasket Parts Diagram

Garden Tractor

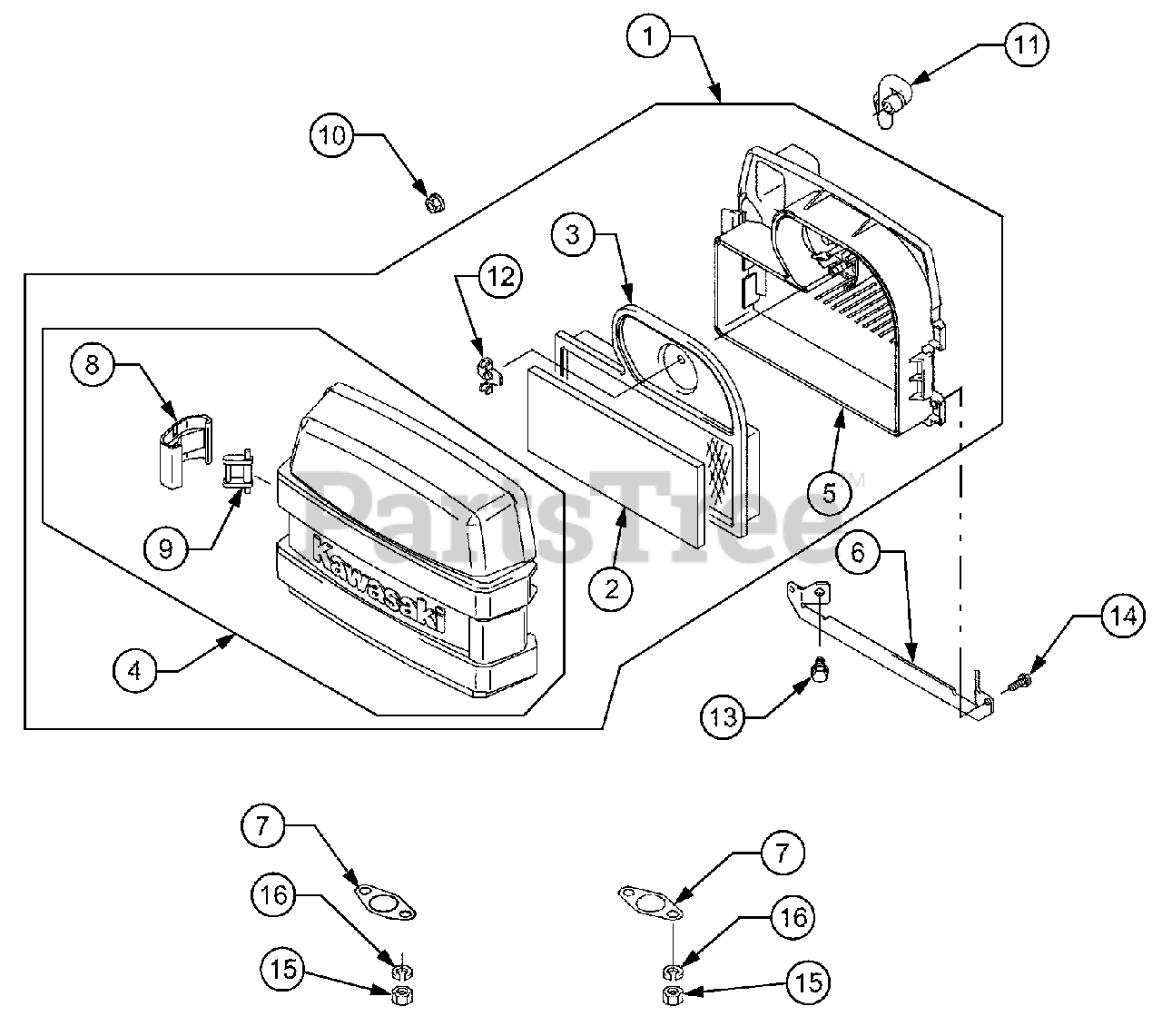

Air Filter/Muffler Gasket Parts Diagram

  • Title

1

Cub Cadet KM-11010-7007

Filter Assy, Air

$

$

Currently unavailable

2

Cub Cadet KM-11013-7001

Element, Air Filter
(Superseded to KM-11013-7033)

$5.99

$

In Stock, Qty 11

0

3

Cub Cadet KM-11013-7002

Element, Air Filter

$21.99

$

In Stock, Qty 6

0

4

Cub Cadet KM-11038-7001

Case Assy, Air Filter
(Superseded to KM-11038-7013)

$67.99

$

In Stock, only 4 left!

0

5

Cub Cadet KM-11038-7006

Case Assy, Air Filter

$70.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-11050-7006

Bracket

$9.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-11060-7021

Gasket, Muffler

$2.49

$

In Stock, only 4 left!

0

8

Cub Cadet KM-27012-7001

Hook, Air Filter
(Superseded to KM-27012-6003)

$2.99

$

In Stock, Qty 20+

0

9

Cub Cadet KM-59071-7001

Joint
(Superseded to KM-27012-6003)

$2.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-92015-1193

Nut
(Superseded to KM-92015-1367)

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet KM-92191-7001

Tube

$

$

Not available

12

Cub Cadet KM-92210-7004

Nut

$3.49

$

In Stock, Qty 17

0

13

Cub Cadet KM-130B0612

Bolt, Flanged
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-232B0514

Screw, Pan-ws+-
(Superseded to KM-232AA0514)

$0.99

$

In Stock, only 3 left!

0

15

Cub Cadet KM-317R0800

Nut, Hex - Small

$2.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-461F0800

Washer, Spring
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0
