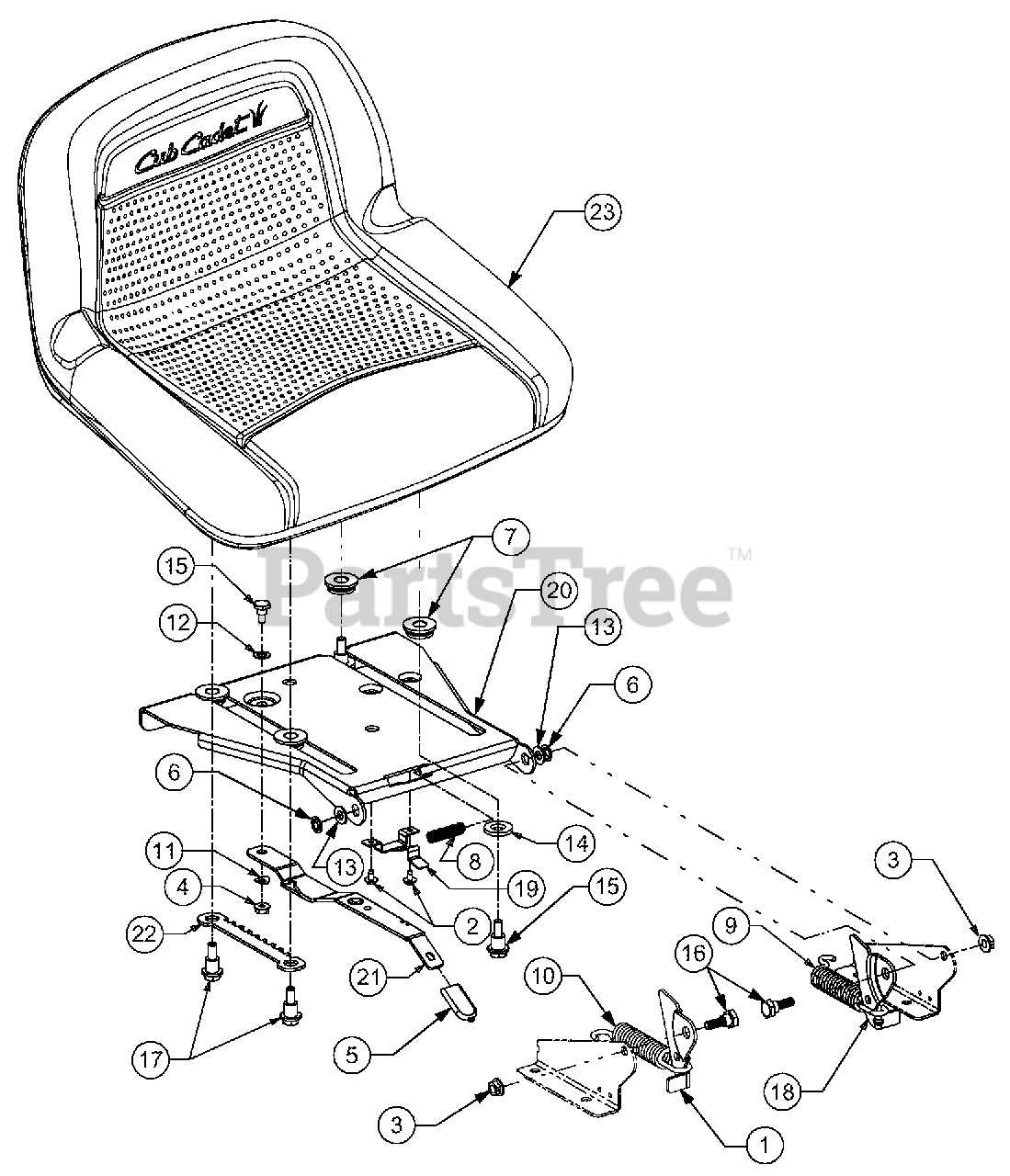

1529 (13A-261H100) - Cub Cadet Garden Tractor Adjustable Seat Parts Diagram

Garden Tractor

Adjustable Seat Parts Diagram

  • Title

1

Cub Cadet 17239A

Bracket, Seat Lift
(Superseded to 17239C)

$

$

Not available

2

Cub Cadet 710-1268

Screw, #10-16, 0.375

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 720-0433

Grip, Seat, Adjustment (Yellow)

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 726-0201

Nut, Speed, .3125 ID

$6.99

$

In Stock, only 2 left!

0

7

Cub Cadet 731-1989

Spacer, Seat, Adjustment

$

$

Not available

8

Cub Cadet 732-0499

Spring, Compression .41 OD x 1.50

$9.49

$

In Stock, only 1 left!

0

9

Cub Cadet 732-1027

Spring, Extension, .80 Dia x 4.2 Lg.

$

$

Not available

10

Cub Cadet 732-1175

Spring, Extension, .815 Dia x 4.4 Lg.

$

$

Not available

11

Cub Cadet 736-0175

Washer, Spring, .265 x .562 x.025
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

12

Cub Cadet 736-0204

Washer, Flat, .344 ID x .62 OD

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

15

Cub Cadet 738-0137A

Screw, Shoulder, .340 x .285, 1/4-20

$10.99

$

In Stock, Qty 10

0

16

Cub Cadet 738-0296

Shoulder, Screw .437 x .286 Lg

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 738-1198

Screw, Shoulder, .50 x.50, 5/16-18

$

$

Not available

18

Cub Cadet 783-0209A

Bracket, Seat Lift
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

19

Cub Cadet 783-0611

Stop, Seat, Adjustment

$10.99

$

In Stock, only 3 left!

0

20

Cub Cadet 783-0738A

Bracket, Pivot, Seat
(Superseded to 783-0738D)

Variations

Cub Cadet 783-0738A-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0738A-0606

Seat Pivot Bracket - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0738A-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0738A-0650

USE 783-0738D-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0738A-0665

USE 783-0738D-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0738A-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

21

Cub Cadet 783-0739

Lever, Seat, Adjustment

Variations

Cub Cadet 783-0739-0498

Seat Adjust Lever - OLD CUB YELLOW (0498)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0739-0638

Seat Adjust Lever - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0739-0665

Seat Adjust Lever - YARDMAN GREEN (0665)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0739-0691

Seat Adjust Lever - BLACK JACK (0691)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0739-0716

Seat Adjust Lever - CUB YELLOW-99 (0716)

$25.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 783-0753

Selector, Seat, Adjustment

$15.99

$

In Stock, only 1 left!

0

23

Cub Cadet 757-04004

Seat, Mid-back, V-1480
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

Cub Cadet 777D06883

Graphic, Made in USA

$17.99

$

In Stock, only 2 left!

0

Cub Cadet 777D01782

Graphic, Cub Cadet

$

$

Not available
