1528 HD (1696504-00) - Briggs & Stratton 28" Snow Thrower, 14.5 Gross TP (2015) Auger Housing Parts Diagram

28" Snow Thrower, 14.5 Gross TP

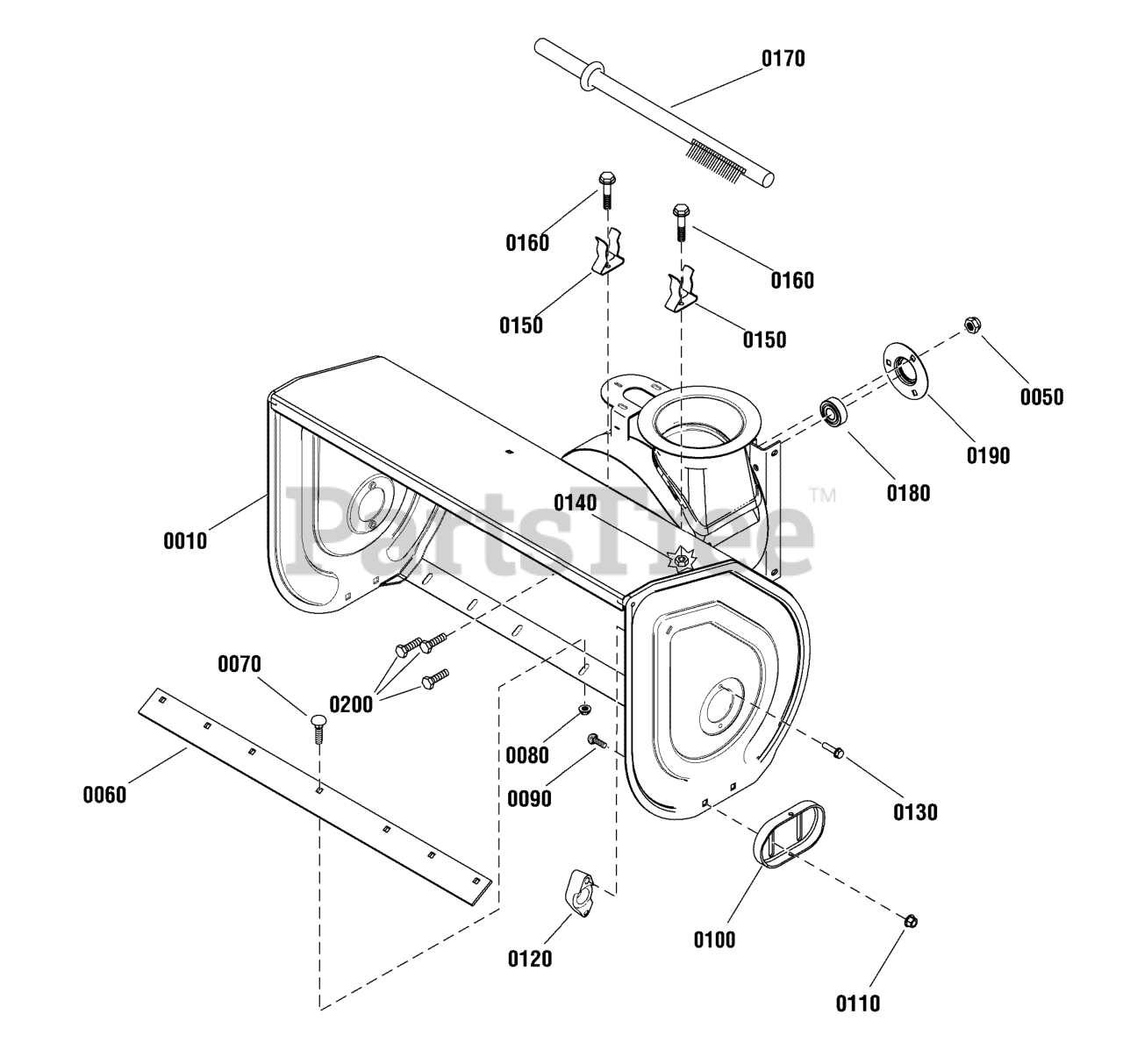

Auger Housing Parts Diagram

  • Title

0010

Murray 1687778YP

AUGER HOUSING KIT, 28"

$769.99

$

Usually ships in 2-12 days

0

0050

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0060

Murray 1709947BMYP

BLADE, Scraper, 28"

$45.99

$

In Stock, Qty 18

0

0070

Murray 703159

BOLT, Carriage, 5/16-18 x 5/8, G5

$3.99

$

In Stock, Qty 12

0

0080

Murray 704067

NUT, 5/16-18, Hex Flange, Center Lock

$3.99

$

In Stock, Qty 20+

0

0090

Murray 703130

BOLT, Carriage, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 13

0

0100

Murray 1750222YP

SKID, Height Adjust, Reversible

$37.99

$

In Stock, only 3 left!

0

0110

Murray 703158

NUT, 3/8-16 Hex Flange Lock

$3.49

$

Usually ships in 2-12 days

0

0120

Murray 53757MA

BEARING, Auger

$9.99

$

In Stock, only 2 left!

0

0130

Murray 703167

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4

$3.99

$

In Stock, only 3 left!

0

0140

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, only 2 left!

0

0150

Murray 1736620YP

CLAMP

$6.49

$

In Stock, only 2 left!

0

0160

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0170

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 3 left!

0

0180

Murray 2108202SM

BEARING, Ball, 3/4 ID x 1-3/4 OD

$11.99

$

In Stock, Qty 20+

0

0190

Murray 1665982SM

RETAINER, Bearing

$6.99

$

In Stock, Qty 16

0

0200

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0
