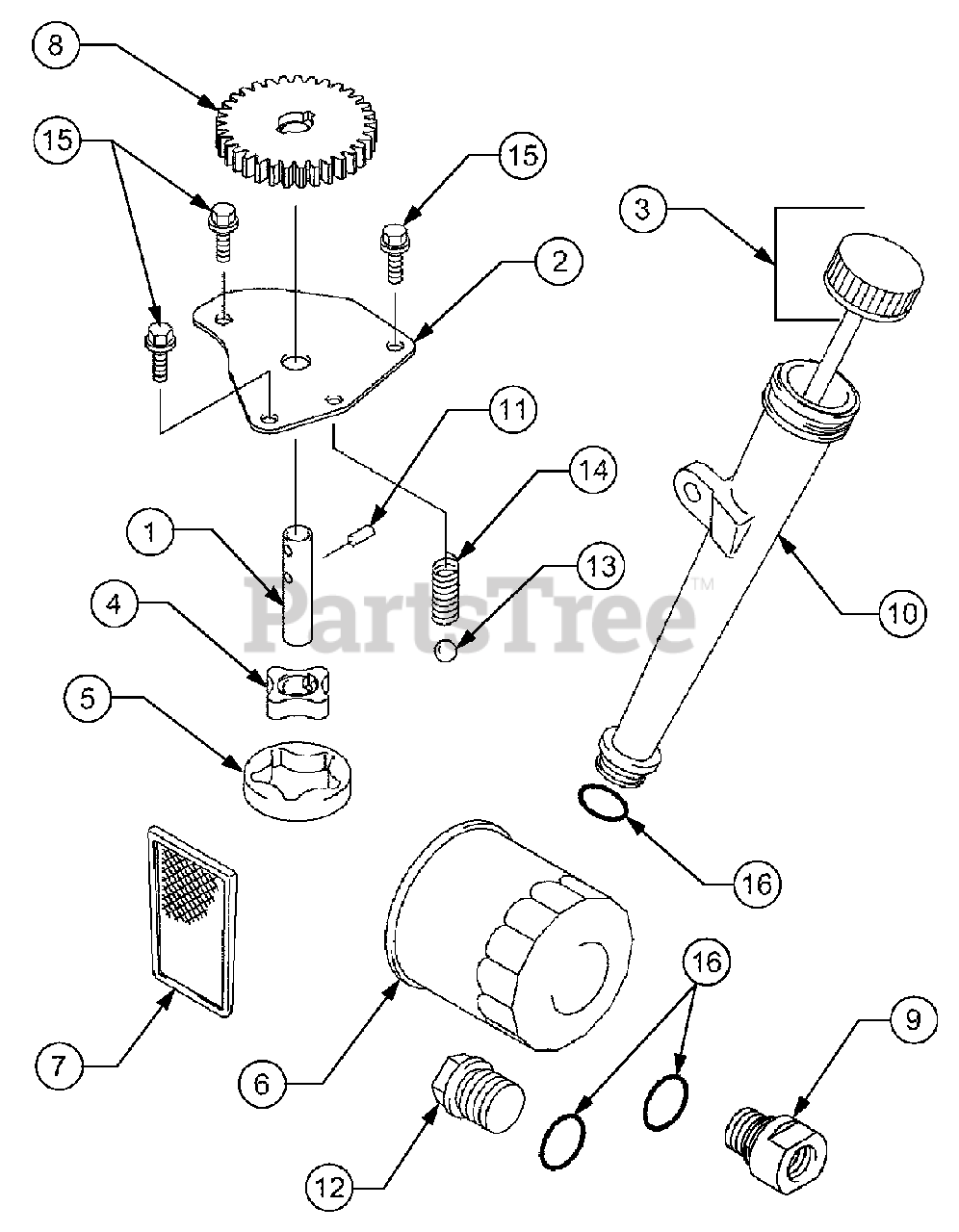

1527 (13A-241G100) - Cub Cadet Garden Tractor Lubrication Parts Diagram

Garden Tractor

Lubrication Parts Diagram

  • Title

1

Cub Cadet KM-13107-7009

Shaft
(Superseded to KM-13107-0858)

$2.49

$

In Stock, only 3 left!

0

2

Cub Cadet KM-13271-7017

Plate

$4.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-14075-7009

Cap Assy
(Superseded to KM-14075-0708)

$10.99

$

In Stock, Qty 11

0

4

Cub Cadet KM-16154-2053

Rotor, Pump - In

$12.99

$

In Stock, only 2 left!

0

5

Cub Cadet KM-16154-2054

Rotor, Pump - Out

$9.49

$

In Stock, only 2 left!

0

6

Cub Cadet KM-49065-2078

Filter, Oil
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-49065-7004

Filter, Oil
(Superseded to KM-49065-0718)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet KM-59051-7011

Gear, Spur

$65.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-59071-7004

Joint
(Superseded to KM-59071-7023)

$8.99

$

In Stock, Qty 11

0

10

Cub Cadet KM-59231-7005

Filler

$5.99

$

In Stock, Qty 5

0

11

Cub Cadet KM-92043-7003

Pin
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 11

0

12

Cub Cadet KM-92066-7003

Plug
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet KM-92140-7003

Ball

$1.49

$

In Stock, Qty 13

0

14

Cub Cadet KM-92145-7002

Spring

$

$

Not available

15

Cub Cadet KM-130B0612

Bolt, Flanged
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-670D2016

O Ring, 16mm

$1.99

$

In Stock, Qty 20+

0
