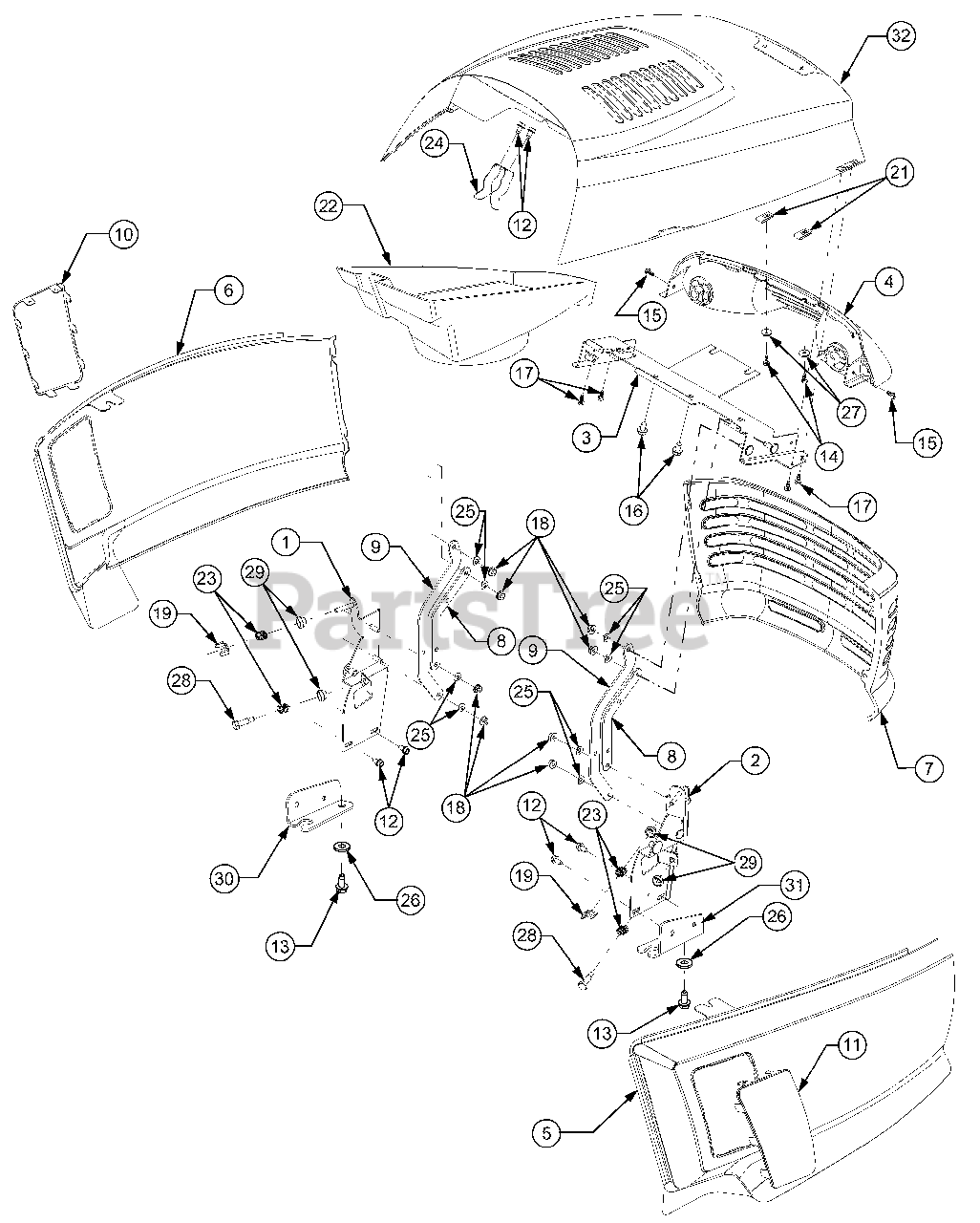

1527 (13A-241G100) - Cub Cadet Garden Tractor Hood & Grille Parts Diagram

Garden Tractor

Hood & Grille Parts Diagram

  • Title

1

Cub Cadet 603-0211A

Bracket Assembly, Grille LH

$

$

Not available

2

Cub Cadet 603-0212A

Bracket Assembly, Grille RH

$

$

Not available

3

Cub Cadet 603-04063

Bracket Assembly, Hood
(Superseded to 603-04191-0499)

Variations

Cub Cadet 603-04063-0499

Hood Bracket Assembly - CUB BEIGE (0499)

$

$

Not available

$

$

4

Cub Cadet 625-04001

Headlight Assembly, Front
(Superseded to 925-04001A)

$158.99

$

In Stock, Qty 9

0

Cub Cadet 725-0963

Lamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

Cub Cadet 725-1649

Socket, Lamp
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

5

Cub Cadet 703-2396

Side Panel, RH
(Superseded to 703-2396-0499)

Variations

Cub Cadet 703-2396-0499

Side Panel R/H - CUB BEIGE (0499)

$260.99

$

Usually ships in 3-6 days

0

$260.99

$

Usually ships in 3-6 days

0

Cub Cadet 777D06894

Graphic, 1527

$

$

Not available

Cub Cadet 777X40079

Strip, Protective

$

$

Not available

6

Cub Cadet 703-2397

Side Panel, LH
(Superseded to 703-2397-0499)

Variations

Cub Cadet 703-2397-0499

SIDE PANEL L/H - CUB BEIGE (0499)

$

$

Not available

$

$

Cub Cadet 777D06894

Graphic, 1527

$

$

Not available

Cub Cadet 777X40079

Strip, Protective

$

$

Not available

7

Cub Cadet 703-2398

Grille
(Superseded to 703-2398-0499)

Variations

Cub Cadet 703-2398-0499

Grille - CUB BEIGE (0499)

$159.99

$

Usually ships in 3-6 days

0

$159.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20314

Graphic, Warning HOT

$

$

Not available

8

Cub Cadet 703-2465

Link, Hood Front

Variations

Cub Cadet 703-2465-0637

Hood Link - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-2466A

Link, Hood, Rear
(Superseded to 703-2466B)

$

$

Not available

10

Cub Cadet 703-2495

Screen, LH Side Panel

Variations

Cub Cadet 703-2495-0499

SCREEN (LH) PANEL - CUB BEIGE (0499)

$

$

Not available

$

$

11

Cub Cadet 703-2496

Screen, RH Side Panel
(Superseded to 703-2496-0499)

Variations

Cub Cadet 703-2496-0499

PANEL SCREEN (RH) - CUB BEIGE (0499)

$

$

Not available

$

$

12

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1260A

Screw, Hx Wash. Hd Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0436

Screw, Hx Tapp, 10-16 x .625
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0456

Screw, Hx Wash. Hd Tapp, 10-16 x .5

$

$

Not available

16

Cub Cadet 710-0726

Screw, Hx Wash. Hd Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0779A

Screw, Truss Phillips Tapp, 10-16 x .5

$4.49

$

In Stock, Qty 12

0

18

Cub Cadet 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

19

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 726-0139

Nut, Speed, 10z U-type

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-04237

Plenum, Hood
(Superseded to 931-04237)

$

$

Not available

23

Cub Cadet 732-0334

Spring, Compression, .50 OD x .5 Lg

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 732-0855A

Spring, Latch, Hood

$

$

Not available

25

Cub Cadet 736-0175

Washer, Spring, .265 x.562 x.025
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

26

Cub Cadet 736-0258

Washer, Flat, .385 x 1.0 x .135

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0400

Washer, Flat, .194 x .62 OD x .063

$5.49

$

In Stock, Qty 12

0

28

Cub Cadet 738-3141

Screw, Shoulder, .31x .75, 1/4-20

$5.49

$

In Stock, Qty 20+

0

29

Cub Cadet 748-3055

Bushing, Tapered, .32 ID x .69 OD
(Superseded to 948-3055)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 783-1467

Bracket, Mounting, Grille LH
(Superseded to 783-1467-0499)

Variations

Cub Cadet 783-1467-0499

BRACKET-GRILLE LH MOUNTING - CUB BEIGE (0499)

$

$

Not available

$

$

31

Cub Cadet 783-1468

Bracket, Mounting, Grille RH
(Superseded to 783-1468-0499)

Variations

Cub Cadet 783-1468-0499

BRACKET-GRILLE RH MOUNTING - CUB BEIGE (0499)

$

$

Not available

$

$

32

Cub Cadet 959-3747B

Hood Assembly

$

$

Currently unavailable

Cub Cadet 777D03263

Graphic, Hood RH

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 777D03264

Graphic, Hood LH

$

$

Not available
