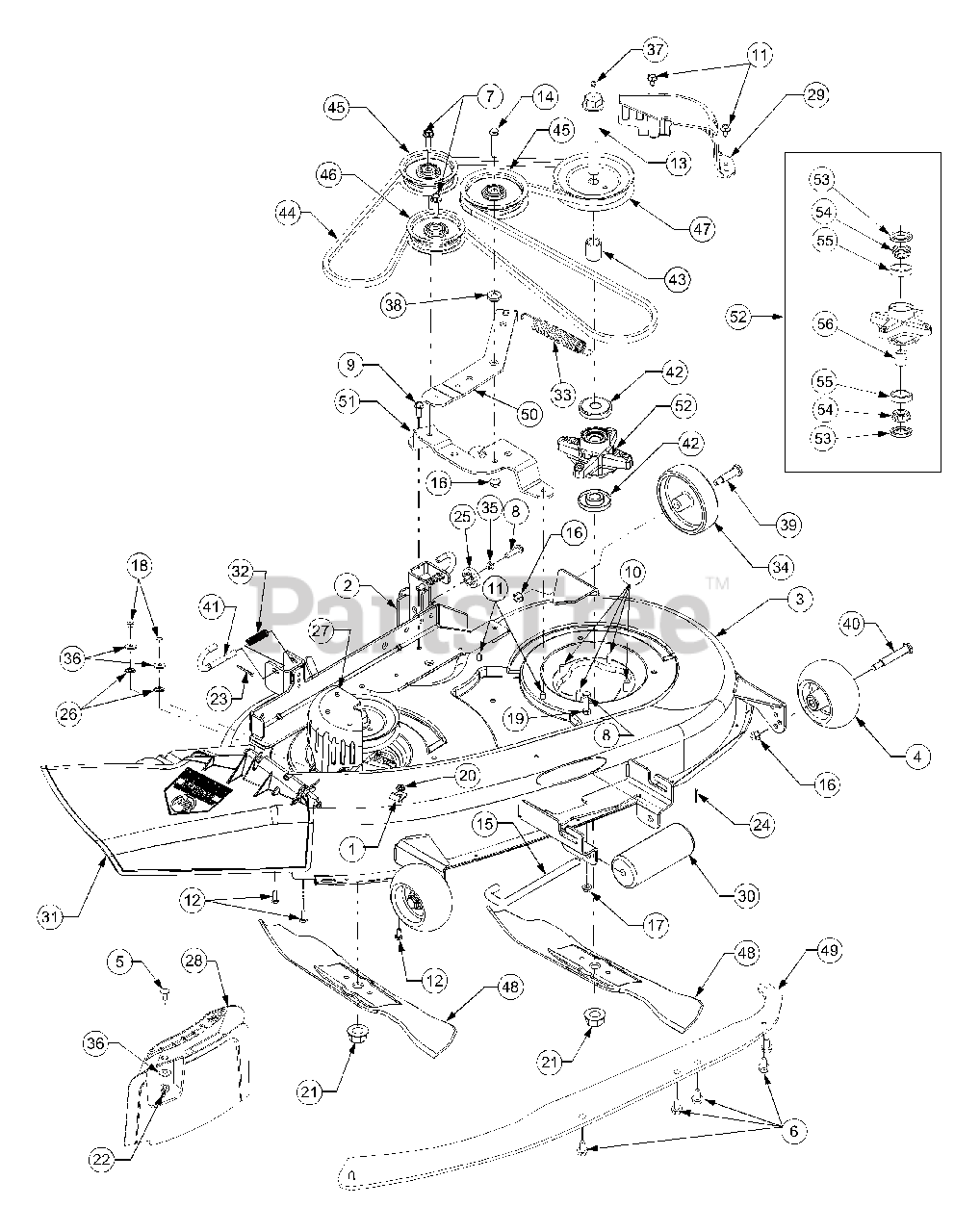

1525 (13A-221F100) - Cub Cadet Garden Tractor Mower Deck - 38 Inch Parts Diagram

Garden Tractor

Mower Deck - 38 Inch Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Hook, Retainer
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 683-0254

Bracket, Deck Hanger LH
(Superseded to 683-0254B)

Variations

Cub Cadet 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0650

USE 683-0254B-0650 BRACKET AS - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0665

USE 683-0254B-0665 BRACKET AS - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 683-0611

Deck Assembly, 38 inch

Variations

Cub Cadet 683-0611-0716

SHELL-DECK 38" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 703-1890

Wheel, Deck, 5.0 OD w/ Fitting
(Superseded to 703-1890A)

$39.99

$

In Stock, Qty 20+

0

Cub Cadet 741-0108

Bearing, Flange

$

$

Not available

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

In Stock, Qty 8

0

5

Cub Cadet 710-0134

Screw, Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

Screw, Hx. Wash, Hd,Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0502A

Screw, Hx. Wash, Hd, Sems Tapp 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0602

Screw, Hx. Wash, Hd, Tapp, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0650

Screw, Hx. Wash, Hd, Tapp, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0726

Screw, Hx. Wash, Hd, Tapp, 5/61-12 x .75

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0751

Screw, 1/4-20, .620, Gr5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-04226

Bolt, Spindle, 3/4-16, 5.85 (solid bolt, no grease fitting)

$25.99

$

In Stock, Qty 12

0

13

Cub Cadet 710-1889

Bolt, Spindle, 3/4-16, 5.85 Greaseable spindle (No longer available) replace with 710-04226, 618-04217 & 737-3000
(Superseded to 710-04226)

$25.99

$

In Stock, Qty 12

0

14

Cub Cadet 710-3144

Screw, Hx. Cap, 3/8-16, 2.00, Gr5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-3314

Roller Pin 1/2" x 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

16

Cub Cadet 712-0431

Nut, Hx. Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3004A

Nut, Hx. Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

19

Cub Cadet 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3027

Nut, Hx. Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

21

Cub Cadet 712-3078

Nut, Hx. Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

25

Cub Cadet 717-1553B

Adjustment Gear, Deck
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

26

Cub Cadet 726-0233

Nut, Push, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 731-2231B

Cover, Belt, Deck

$46.99

$

In Stock, only 3 left!

0

28

Cub Cadet 731-2363

Plug, Mulch

$29.99

$

In Stock, only 4 left!

0

29

Cub Cadet 731-2609A

Cover, Belt, Deck, LH

$

$

Not available

30

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

31

Cub Cadet 731-1032B

Chute Assembly, Side Discharge Includes the following parts
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

Cub Cadet 703-1693A

Bracket, Mounting

$23.99

$

In Stock, only 4 left!

0

Cub Cadet 711-0792

Pin, Hinge
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet 726-0106

Cap, Push

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 732-0602A

Spring, Torsion

$12.99

$

In Stock, Qty 5

0

32

Cub Cadet 732-0306

Spring, Compression, .406 x .531 x
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

33

Cub Cadet 732-0556

Spring, Extension .94 x 7.57
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 734-0973

Wheel Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0119

Washer, Lock, 5/16, Regular Duty
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0270

Washer, Belleville, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 737-3000

Fitting, 3/16 Drive Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 738-0372A

Spacer, Shoulder, 1.00 x .38 x .38
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

39

Cub Cadet 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

40

Cub Cadet 738-3056

Shoulder Screw - 1/2 Dia x 2.50 Lg.
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

41

Cub Cadet 747-1116

Rod, Handle, Deck Release .375 Dia

$12.99

$

In Stock, Qty 6

0

42

Cub Cadet 748-3065

Spacer, Spindle, Deck
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 14

0

43

Cub Cadet 750-1000

Spacer, .80 x 1.10 x 1.330

$4.49

$

In Stock, Qty 7

0

44

Cub Cadet 754-0641

Belt, V-Type
(Superseded to 954-0641)

$58.99

$

In Stock, only 4 left!

0

45

Cub Cadet 756-0627B

Pulley, Idler, 3.50 Dia.
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

46

Cub Cadet 756-1229

Pulley, Idler, 4.06 Dia. w/ Flange

$47.99

$

In Stock, Qty 20+

0

47

Cub Cadet 756-3106

Pulley, Spindle
(Superseded to 756-04459A)

$33.99

$

In Stock, only 1 left!

0

48

Cub Cadet 759-3829

Blade, 19.38 Lg, 3-in-1
(Superseded to 742P3032)

$36.99

$

In Stock, only 1 left!

0

49

Cub Cadet 783-1297

Deck Skirt, Mulching
(Superseded to 783-1297-0637)

Variations

Cub Cadet 783-1297-0637

Skirt Extension, 38" Deck - POWDER BLACK (0637)

$30.99

$

In Stock, only 3 left!

0

$30.99

$

In Stock, only 3 left!

0

50

Cub Cadet 783-1417A

Bracket, Idler, Arm

Variations

Cub Cadet 783-1417A-0716

Deck Idler Arm - CUB YELLOW-99 (0716)

$27.99

$

In Stock, only 3 left!

0

$27.99

$

In Stock, only 3 left!

0

51

Cub Cadet 783-1418

Bracket, Idler

Variations

Cub Cadet 783-1418-0637

Idler Deck Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-1418-0716

Idler Deck Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$

$

52

Cub Cadet 618-04217

Spindle Housing Assembly (Greaseable) Includes bearings and seals
(Superseded to 918-04217)

Note: Also furnish 737-3000 grease fitting for housing. Use with 710-04226 spindle bolt.

$153.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 618-3129A

Spindle Housing Assembly (Non Greaseable) Includes Ref. Nos. 53 thru 56
(Superseded to 918-3129C)

Note: use with 710-1889 greaseable spindle bolt

$112.99

$

In Stock, Qty 20+

0

53

Cub Cadet 721-3018A

Seal, Oil, Single Lip
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

54

Cub Cadet 741-3028

Bearing, Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

55

Cub Cadet 741-3029

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

56

Cub Cadet 750-3190A

Spacer, Bearing, .780 x 1.000 x

$13.99

$

In Stock, only 2 left!

0
