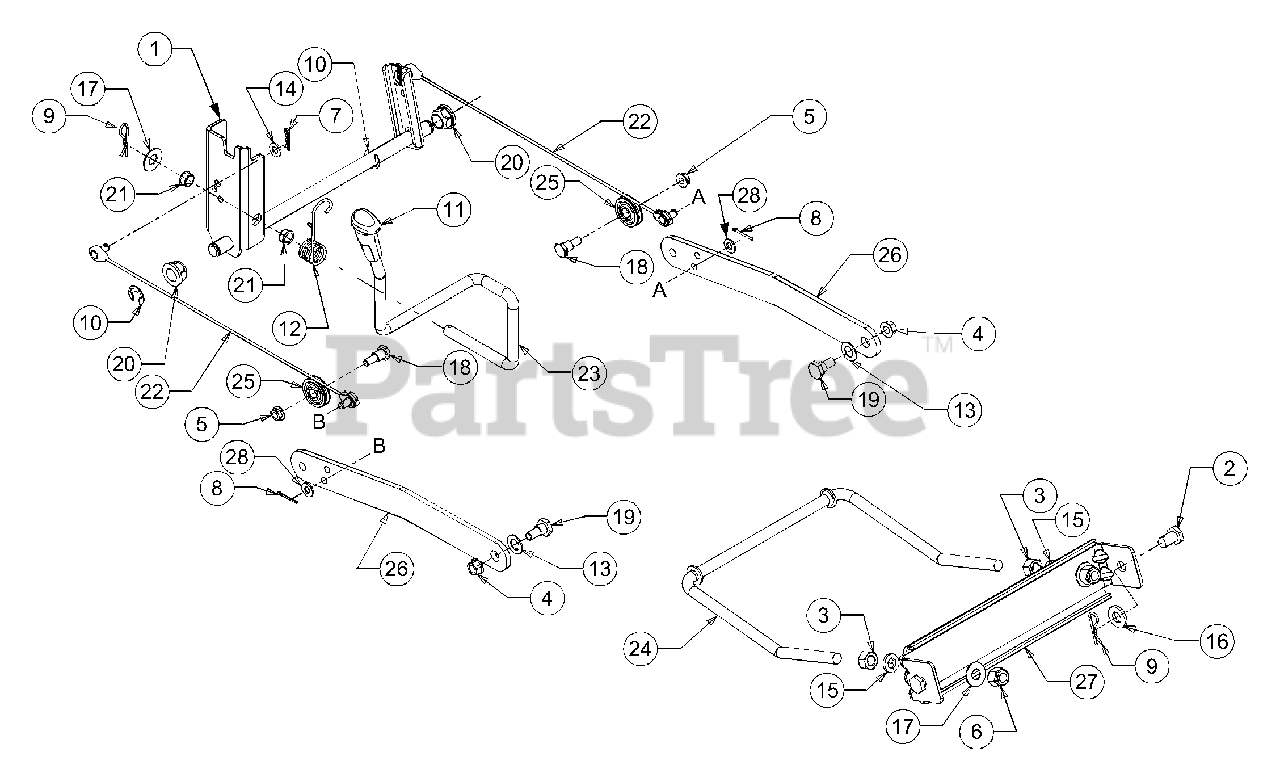

1525 (13A-221F100) - Cub Cadet Garden Tractor Lift Assembly Parts Diagram

Garden Tractor

Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 683-0197B

Shaft Assembly, Lift
(Superseded to 983-0197)

Variations

Cub Cadet 683-0197B-0637

USE 983-0197 SHAFT-LIFT ASM - POWDER BLACK (0637)

$51.99

$

In Stock, only 1 left!

0

$51.99

$

In Stock, only 1 left!

0

2

Cub Cadet 711-0332

Pin, Clevis, .50 Dia x .78 Lg
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 12

0

3

Cub Cadet 712-0206

Nut, Hex, 1/2-13, Gr5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3083

Nut, Hex Lock, 1/2-13, Gr8, Nylon

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

9

Cub Cadet 714-0145

Pin, Click, .092 x 1.64 Lg

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 716-0106

E-ring, .625 Dia. Shaft

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet 720-0311

Grip, Handle

$15.99

$

In Stock, only 1 left!

0

12

Cub Cadet 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 736-0160

Washer, Flat, .53 x .93 x .050

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0921

Washer, Lock, 1/2 , Regular Duty

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

17

Cub Cadet 736-3084

Washer, Flat, .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 738-0138A

Screw, Hex Cap, 5/16-18x.620 Gr2

$6.99

$

In Stock, only 2 left!

0

19

Cub Cadet 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

Cub Cadet 741-0715

Bearing,Flange, Snap .500 ID
(Superseded to 941-0715)

$

$

Not available

22

Cub Cadet 746-0968

Cable, Lift, 16.16 Lg

$19.99

$

In Stock, Qty 20+

0

23

Cub Cadet 747-1111A

Handle, Lift

$

$

Not available

24

Cub Cadet 747-1130B

Rod, Deck, Front Adjustment .5" Dia

$41.99

$

In Stock, only 3 left!

0

25

Cub Cadet 756-1154

Pulley, Roller

$7.99

$

In Stock, only 2 left!

0

26

Cub Cadet 783-0678A

Lift, Arm
(Superseded to 783-0678C)

Variations

Cub Cadet 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

Cub Cadet 783-0678A-4008

USE 783-0678C-4008 LINK-LIFT - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-0720A

Bracket, Adjustment, Front Deck Rod
(Superseded to 783-0720C)

Variations

Cub Cadet 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

Cub Cadet 783-0720A-4008

USE 783-0720C-4008 BRACKET-AD - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-0204

Washer, Flat, .344 x .62

$4.49

$

In Stock, Qty 20+

0
