1525 (13A-221F100) - Cub Cadet Garden Tractor Fuel Pump/Filter Parts Diagram

Garden Tractor

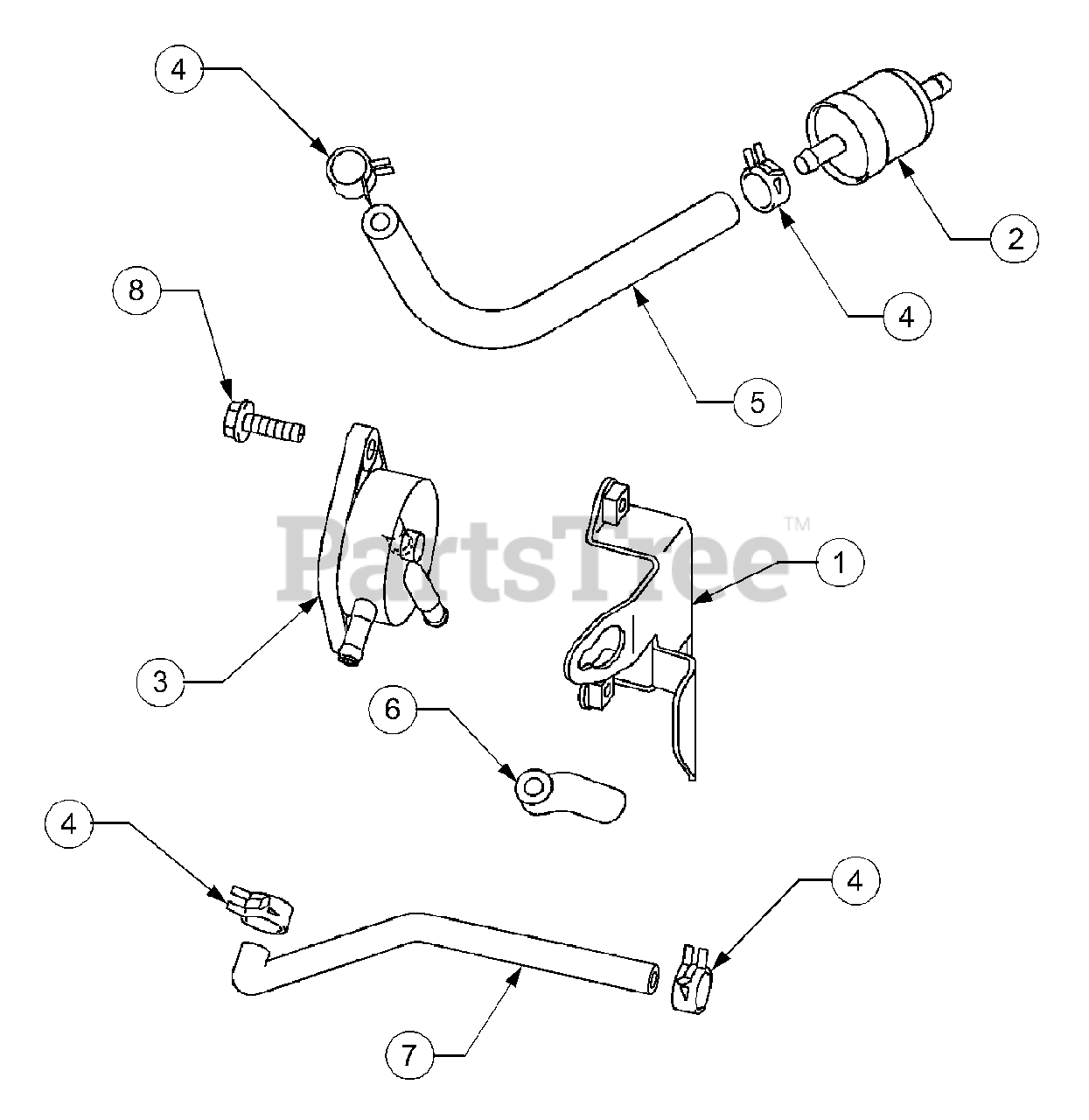

Fuel Pump/Filter Parts Diagram

  • Title
1

KM-23062-7004-9H

Bracket, Comp

$

$

Not available

2

Cub Cadet KM-49019-7001

Filter, Fuel
(Superseded to KM-49019-0027)

$9.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-49040-7001

Pump, Fuel
(Superseded to KM-49040-0769)

$37.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-92170-2088

Clamp
(Superseded to KM-92173-1582)

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-92191-7003

Tube, 6.35x12.7x160

$

$

Not available

$

$

Not available

$

$

Not available

8

Cub Cadet KM-130B0620

Bolt, Flanged

$

$

Not available
