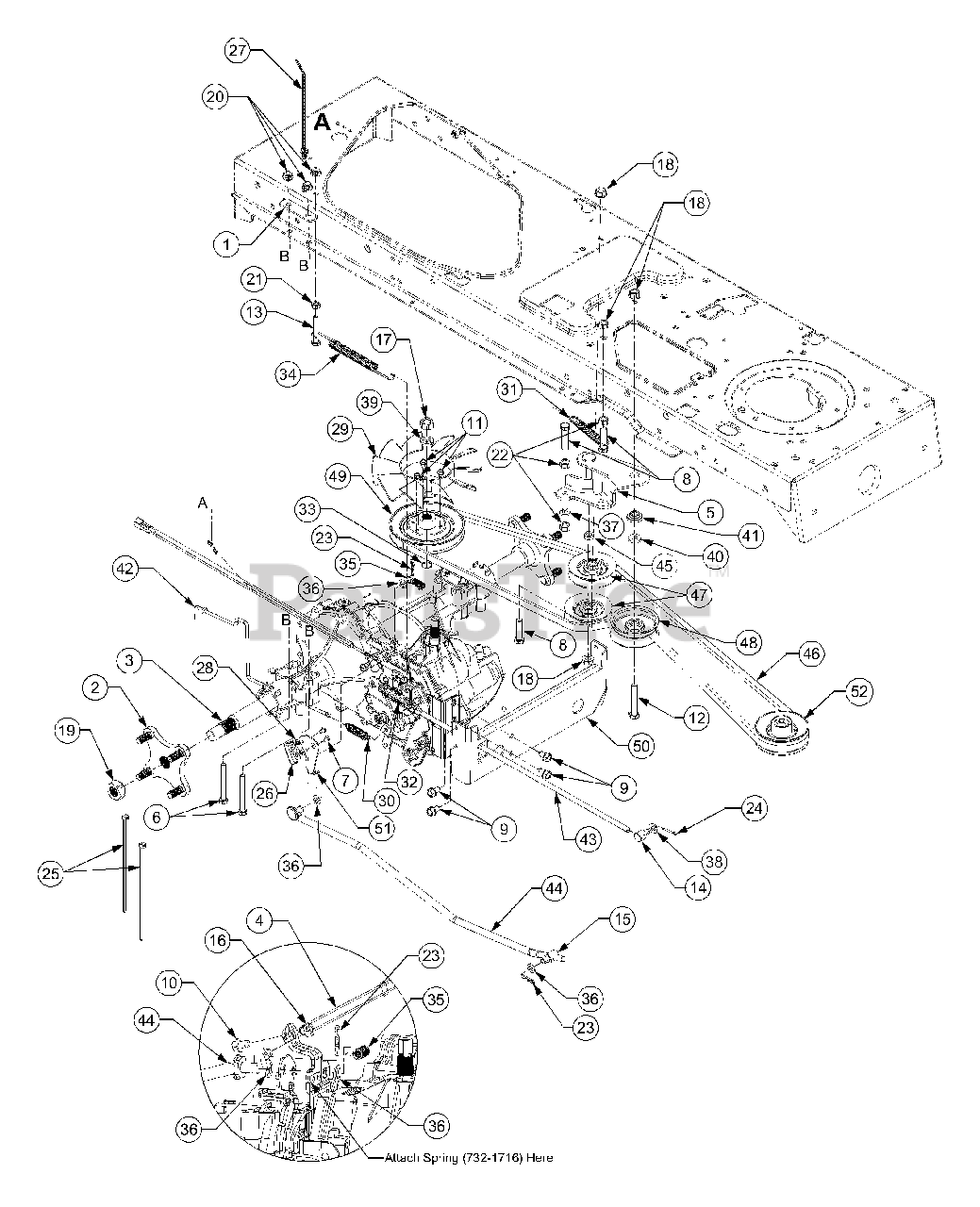

1525 (13A-221F100) - Cub Cadet Garden Tractor Drive System Parts Diagram

Garden Tractor

Drive System Parts Diagram

  • Title

1

Cub Cadet 17840

Bracket, Mounting, Transaxle
(Superseded to 17840-0637)

Variations

Cub Cadet 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-0365

Hub Assembly, Wheel
(Superseded to 618P0579B)

$77.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-0667

Transmission, Hydrostatic
(Superseded to 918-0667A)

$

$

Not available

4

Cub Cadet 629-0949A

Harness Assembly, Ground & Reverse
(Superseded to 629-0949B)

$43.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 683-0251

Bracket Assembly, Idler, Center Dbl

$

$

Not available

6

Cub Cadet 710-0176

Hex Cap Screw, 5/16-18, 2.75, Gr5

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 15

0

8

Cub Cadet 710-0344

Hex Cap Screw, 3/8-16, 1.50, Gr5

$5.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-0726

Screw, 5/16-12, 0.75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0599

Screw, 1/4-20, 0.5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3007

Screw, #12-24, 0.375

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16, 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3103

Hex Cap Screw, 5/16-18, 2.00, Gr5

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 711-0677

Ferrule, 5/16-18 x .312 Dia
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

15

Cub Cadet 711-0832

Ferrule, 3/8-24 x .375 Dia
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

16

Cub Cadet 712-0291

Nut, Hex Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

17

Cub Cadet 712-0333

Nut, Hex, 1/2-20, Gr2
(Superseded to 912-0333)

$

$

Not available

18

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-1329

Nut, 3/4-16, Grb, Hx

$12.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3017

Nut, Hex, 3/8-16, Gr8

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

25

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

26

Cub Cadet 725-1644

Switch, Spring, Short

$9.99

$

In Stock, only 1 left!

0

27

Cub Cadet 726-0154

Tie, Cable, Push Mount 7.5 Lg
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 726-0320

Plate, Insulator Nut
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

29

Cub Cadet 731-1449A

Fan, Blade, 10"
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 10

0

30

Cub Cadet 732-0209

Spring, .48 OD x 2.03 Extension
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

31

Cub Cadet 732-0429A

Spring, Extension, .50 Dia x 3.97 Lg
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

32

Cub Cadet 732-0716

Spring, Extension, .59 OD x 4.00 Lg
(Superseded to 732-0716D)

$13.99

$

In Stock, only 2 left!

0

33

Cub Cadet 732-0729

Ring, Wire

$4.99

$

In Stock, Qty 5

0

34

Cub Cadet 732-0994

Spring, Extension, .500 Dia x 7.0 Lg

$10.99

$

In Stock, Qty 7

0

35

Cub Cadet 732-3118

Spring, Extension, 3/8 OD x 1.44 Lg

$10.99

$

In Stock, only 3 left!

0

36

Cub Cadet 736-0140

Washer, Flat, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

37

Cub Cadet 736-0169

Washer, Lock, 3/8 , Regular Duty

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0921

Washer, Lock, 1/2 , Regular Duty

$4.49

$

In Stock, Qty 5

0

40

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135 Hdn

$4.99

$

In Stock, only 2 left!

0

41

Cub Cadet 738-0372B

Spacer, Shoulder, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

42

Cub Cadet 747-1149

Rod, Hydro Bypass

$24.99

$

In Stock, only 1 left!

0

43

Cub Cadet 747-1150

Rod, Brake, Hydro

$

$

Not available

44

Cub Cadet 747-1151

Rod, Control, Hydro

$

$

Not available

45

Cub Cadet 750-0535

Spacer, .376 ID x .625 OD x .22
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

46

Cub Cadet 754-0640

Belt, V Type, Poly
(Superseded to 954-0640)

$53.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 756-0116

Pulley, Idler, V Type x 3.06 Dia
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

48

Cub Cadet 756-0981A

Pulley, Idler, Flat 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

49

Cub Cadet 756-1166

Pulley, Input, 5.0 Dia

$

$

Not available

50

Cub Cadet 783-0810

Bracket, Transmission, Torque Hydro
(Superseded to 783-0810B-0637)

Variations

Cub Cadet 783-0810-0637

USE 783-0810B-0637 BRACKET-TR - POWDER BLACK (0637)

$

$

Not available

$

$

51

Cub Cadet 783-1019

Bracket, Actuator, Switch
(Superseded to 783-1019B)

$10.99

$

In Stock, only 1 left!

0

52

Cub Cadet 756-0978A

Pulley, Engine, 3.56 Dia.
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 15

0

732-1716

Cub Cadet 732-1716

Spring

$

$

Currently unavailable
