1525 (13A-221F100) - Cub Cadet Garden Tractor Cylinder/Crankcase Parts Diagram

Garden Tractor

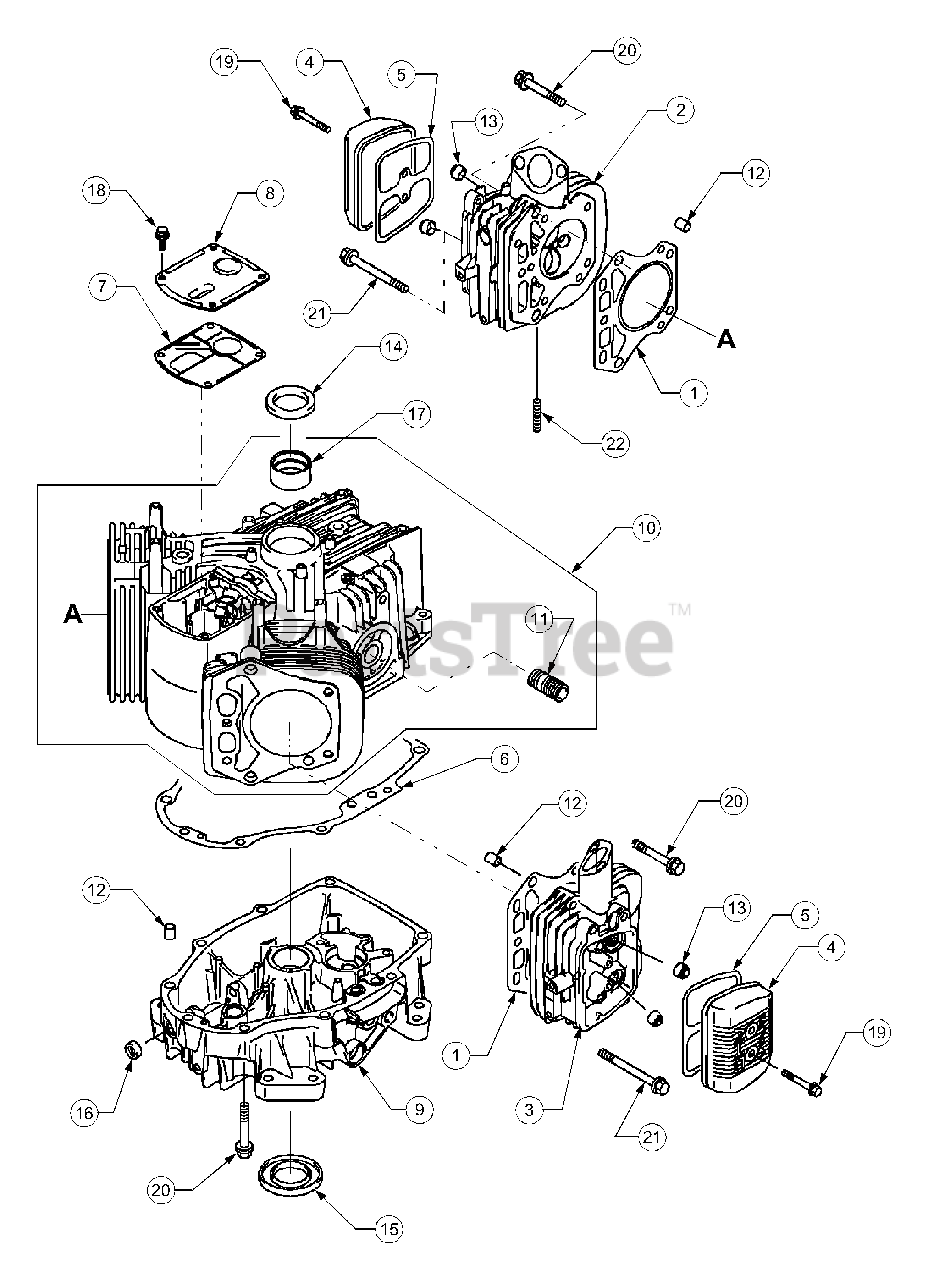

Cylinder/Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7008

Gasket, Head
(Superseded to KM-11004-7018)

$12.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-11008-7010

Head, Cylinder #1 Complete
(Superseded to KM-11008-7022)

$233.99

$

In Stock, only 1 left!

0

3

Cub Cadet KM-11008-7011

Head, Cylinder #2 Complete
(Superseded to KM-11008-7021)

$234.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-11022-7003

Case, Rocker

$14.99

$

In Stock, only 3 left!

0

5

Cub Cadet KM-11060-7001

Gasket, Rocker Case

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11061-7007

Gasket, Crankcase Cover

$13.99

$

In Stock, only 1 left!

0

7

Cub Cadet KM-11061-7008

Gasket, Breather
(Superseded to KM-99996-6099)

$11.99

$

In Stock, Qty 7

0

8

Cub Cadet KM-14091-7007

Cover

$8.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-49015-7009

Cover, Crankcase

$

$

Not available

10

Cub Cadet KM-49120-7015

Crankcase, Complete

$549.99

$

In Stock, only 1 left!

0

11

Cub Cadet KM-59071-2079

Joint

$6.49

$

In Stock, Qty 8

0

12

Cub Cadet KM-92043-7001

Pin

$0.99

$

In Stock, Qty 7

0

13

Cub Cadet KM-92049-7001

Seal, Oil rvc2 6x11x10.2

$8.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92049-7002

Seal, Oil 35-48-8 Tc
(Superseded to KM-92049-7010)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet KM-92049-7004

Seal, Oil 35-62-8 Tc
(Superseded to KM-92049-7011)

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92049-7005

Seal, Oil 8x14x5 Hs
(Superseded to KM-92049-7019)

$2.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92139-7002

Bushing
(Superseded to KM-92139-7008)

$13.99

$

In Stock, only 1 left!

0

18

Cub Cadet KM-130B0612

Bolt, Flanged
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-130B0640

Bolt, Flanged
(Superseded to KM-130BA0640)

$1.49

$

In Stock, only 3 left!

0

20

Cub Cadet KM-130T0850

Bolt, Flanged
(Superseded to KM-130CA0850)

$1.99

$

In Stock, Qty 6

0

21

Cub Cadet KM-130T0875

Bolt, Flanged
(Superseded to KM-130CA0875)

$2.49

$

In Stock, Qty 9

0

22

Cub Cadet KM-172G0818

Bolt, Stud
(Superseded to KM-172BA0818)

$1.99

$

In Stock, only 3 left!

0
