1517 (13A-231G100) - Cub Cadet Garden Tractor Wheels Parts Diagram

Garden Tractor

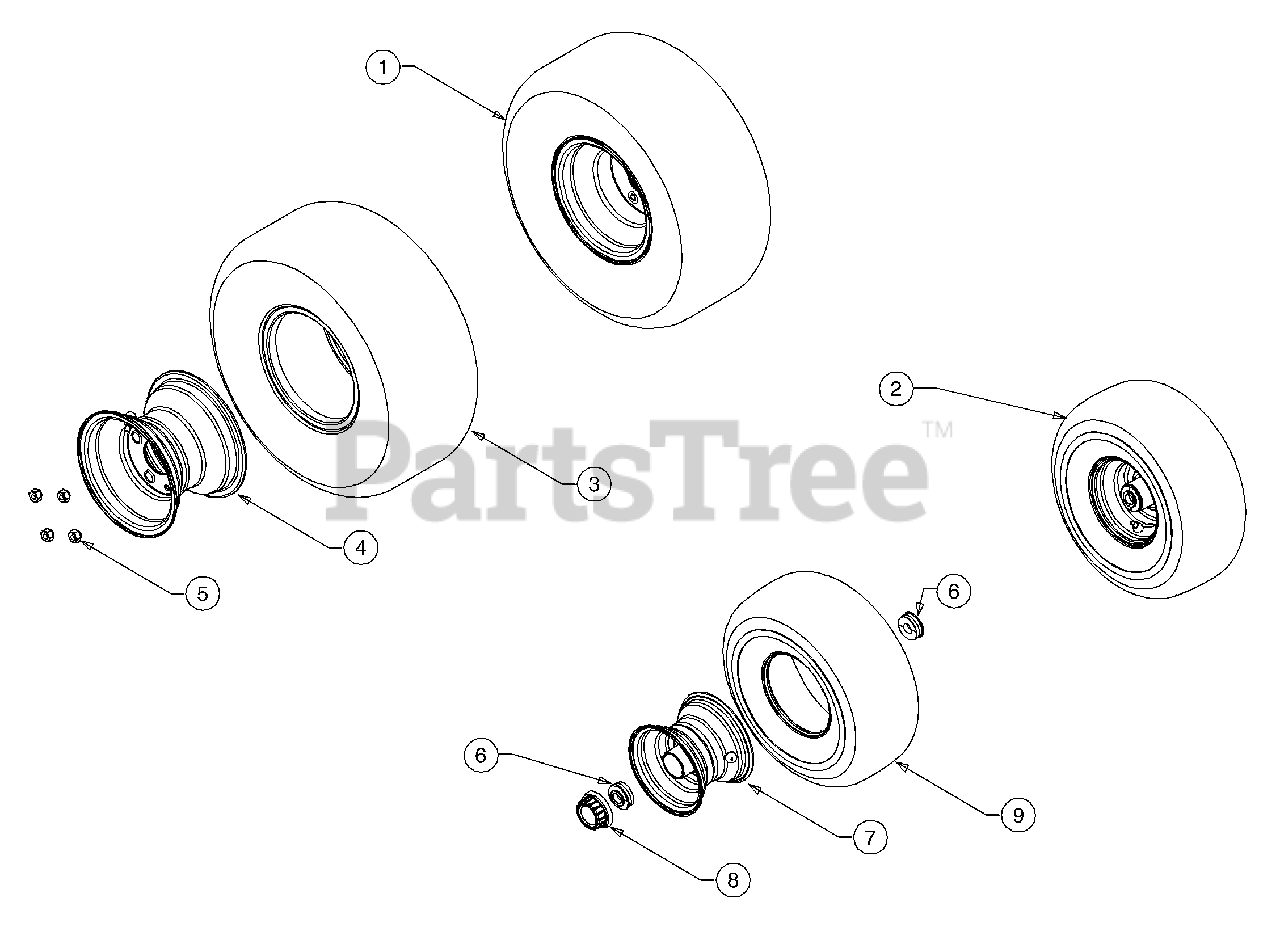

Wheels Parts Diagram

  • Title

1

~NA

Rim/Wheel Assembly, 20 x 9 x 8 (4-Lug)

Note: (Not available as Assembly)

$

$

Not available

2

~NA

Wheel, Complete, 15 x 6 x 6

Note: (Not available as Assembly)

$

$

Not available

3

Cub Cadet 734-3189

Tire, Turf, Cub Cadet 20 x 9 x 8
(Superseded to 734-1873-0901)

$106.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 634-0246

Rim Assembly, 8.0 x 6.19 (4-Lug)
(Superseded to 934-0246A)

Variations

Cub Cadet 634-0246-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$134.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 5

0

6

Cub Cadet 741-3032

Bearing, Ball, .75 ID x 1.75 OD
(Superseded to 941-3032)

$47.99

$

In Stock, only 2 left!

0

7

Cub Cadet 634-3015

Rim Assembly, Bead Lock, 6 x 4.5
(Superseded to 634-3015-0499)

Variations

Cub Cadet 634-3015-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$140.99

$

Usually ships in 3-6 days

0

$140.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-3020

Hub Cap
(Superseded to 931-3020)

$8.99

$

In Stock, Qty 20+

0

9

Cub Cadet 734-3186

Tire, Turf, Cub Cadet 15 x 6 x 6
(Superseded to 734-3186A)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 737-0224

Grease Fitting

$7.49

$

In Stock, only 3 left!

0

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
