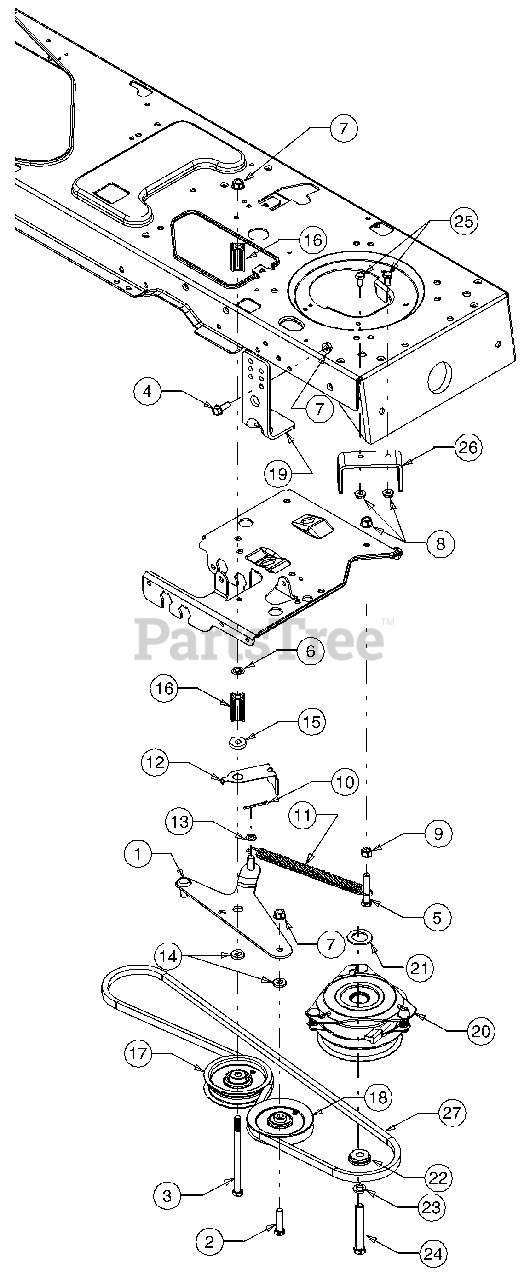

1517 (13A-231G100) - Cub Cadet Garden Tractor Power Take-Off (PTO) System Parts Diagram

Garden Tractor

Power Take-Off (PTO) System Parts Diagram

  • Title

1

Cub Cadet 683-0450

Plate Assembly, Engagement (Model 1517)

Variations

Cub Cadet 683-0450-0637

Engage Plate Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-0520

Screw, 3/8-16, 1.5 (Model 1517)

$4.49

$

In Stock, Qty 6

0

3

Cub Cadet 710-0831

Screw, 3/8-16, 5.5 (Model 1517)

$

$

Not available

4

Cub Cadet 710-1238

Screw, 5/16-18, .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3144

Screw, 3/8-16, 2.0 (Model 1517)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0229

Push Nut, 3/8 (Model 1517)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3017

Nut, 3/8-16 (Model 1517)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 714-0470

Cotter Pin, 1/8 x 1.25 (Model 1517)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 732-0384

Spring, Extension .62 x 6.12 (Model 1517)
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

12

Cub Cadet 732-0991A

Belt Guard (Model 1517)

$14.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0140

Washer, Flat .385 x .62 x .063 (Model 1517)

$7.49

$

In Stock, Qty 7

0

14

Cub Cadet 736-3010

Washer, Flat .407 x .812 x .135 (Model 1517)

$4.99

$

In Stock, only 1 left!

0

15

Cub Cadet 738-0372

Shoulder Spacer, .380
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

16

Cub Cadet 748-0415A

Spacer, 3/8 x 1.54
(Superseded to 748-0415B)

$7.49

$

In Stock, Qty 10

0

17

Cub Cadet 756-0627B

Pulley, Idler, 3.5 (Model 1517)
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

18

Cub Cadet 756-1208

Pulley, Idler, 4.0 (Model 1517)

$35.99

$

In Stock, Qty 5

0

19

Cub Cadet 783-0891B

Deck Stop

Variations

Cub Cadet 783-0891B-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0665

Deck Up-Stop Bracket - YARDMAN GREEN (0665)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0498

USE 783-04467 BRACKET-DECK UP - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0650

USE 783-04467-0650 BRACKET-DE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0891B-0716

USE 783-04467-0716 BRACKET-DE - CUB YELLOW-99 (0716)

$

$

Not available

$30.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 717-1773

Clutch, Electric PTO, 6" (Model 1515)
(Superseded to 917-1773)

$531.99

$

Usually ships in 3-6 days

0

Cub Cadet 717-1708

Clutch, Electric PTO (Model 1517)
(Superseded to 917-1708)

$621.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0277

Washer, Flat, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 738-0785

Spacer, Shoulder, 1.38 x .445 x .36
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 9

0

23

Cub Cadet 736-0171

Washer, Lock, 7/16, Regular Duty

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet 710-3157

Screw, 7/16-20, 3.25, Gr5
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3025

Screw, 5/16-18, .625, Gr5

$3.99

$

In Stock, Qty 8

0

26

Cub Cadet 783-1003

Bracket, Clutch
(Superseded to 783-1003-0637)

Variations

Cub Cadet 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 754-0644

Belt, V-type (Model 1517)
(Superseded to 954-0644)

$39.99

$

In Stock, only 1 left!

0
