1517 (13A-231G100) - Cub Cadet Garden Tractor Dash Panel Parts Diagram

Garden Tractor

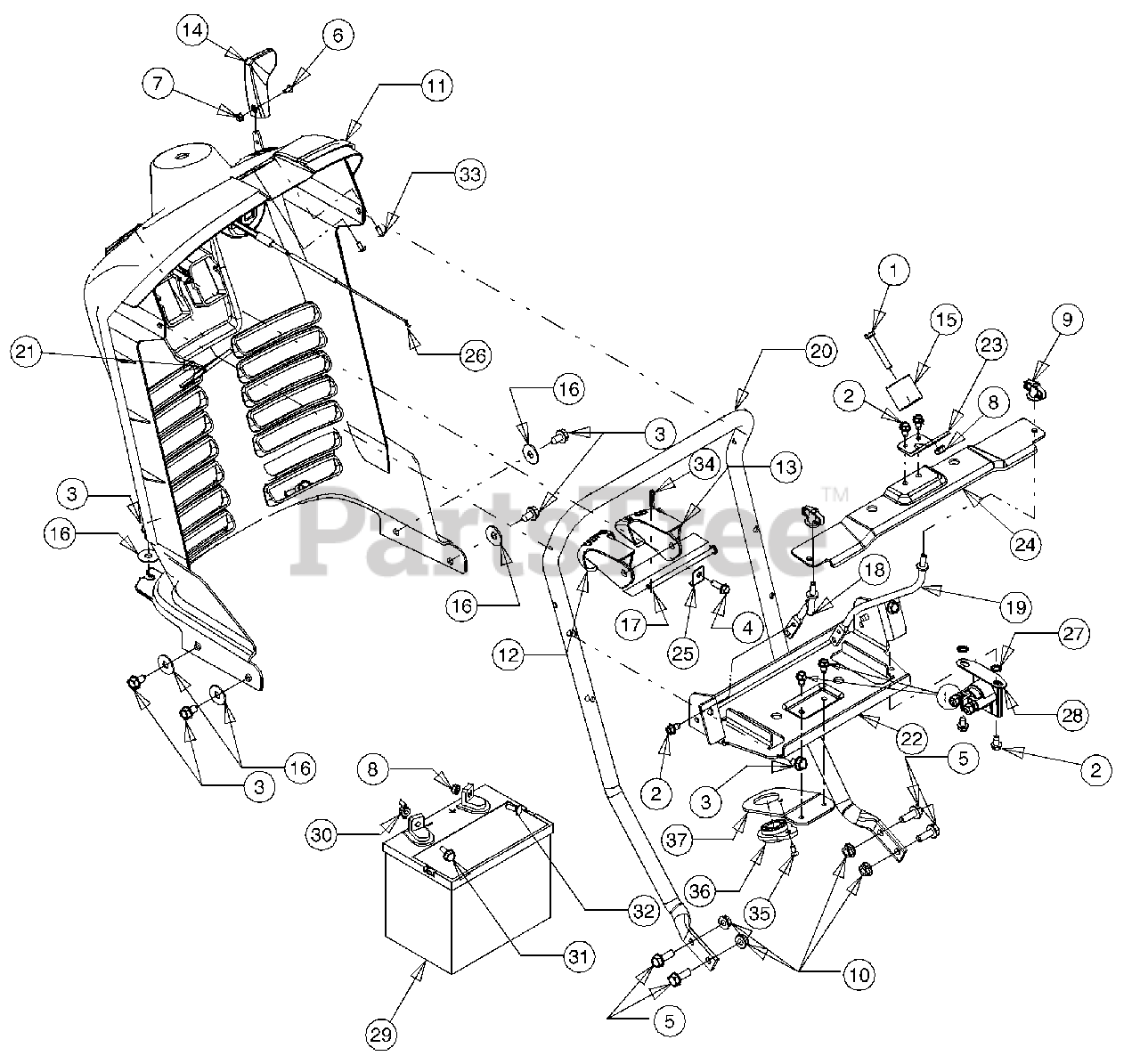

Dash Panel Parts Diagram

  • Title

1

Cub Cadet 710-0136

Screw, 1/4-20, 1.75, Gr5

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0895

Screw, 1/4-15, 0.750

$6.49

$

In Stock, Qty 10

0

5

Cub Cadet 710-1238

Screw, 5/16-18, .875, Gr5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3217

Screw, Machine, #8-32, 0.375, Trus Phillips

$6.99

$

In Stock, Qty 7

0

7

Cub Cadet 712-0142

Nut, 8-32

$4.49

$

In Stock, Qty 10

0

8

Cub Cadet 712-0271

Nut, Hex, 1/4-20, Sems

$4.49

$

In Stock, Qty 19

0

9

Cub Cadet 712-0397

Nut, Wing, 1/4-20 w/ Bell Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 731-2615

Dash

$

$

Not available

12

Cub Cadet 731-2620

Lever, Dash, Cruise
(Superseded to 731-04294A)

$17.99

$

In Stock, only 1 left!

0

13

Cub Cadet 731-2621

Lever, Dash, Brake
(Superseded to 731-04293B)

$30.99

$

In Stock, only 1 left!

0

14

Cub Cadet 731-3161

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

15

Cub Cadet 731-3232

Roller, Latch, Hood

$8.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-3078

Washer, Flat, .349 x 1.00 x .063

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 747-1323A

Rod, .250 Dia x 4.25 Lg.

$11.99

$

In Stock, only 3 left!

0

18

Cub Cadet 747-2130

Rod, Support, Side Panel RH

$

$

Not available

19

Cub Cadet 747-2131

Rod, Support, Side Panel LH

$

$

Not available

20

Cub Cadet 749-04000

Tube, Dash, Support

Variations

Cub Cadet 749-04000-0637

TUBE-DASH - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available

22

Cub Cadet 783-1447

Bracket, Support, Battery
(Superseded to 783-1447C-0716)

Variations

Cub Cadet 783-1447-0716

SUPPORT BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$

$

23

Cub Cadet 783-1448

Bracket, Support, Hood Latch

Variations

Cub Cadet 783-1448-0716

SUPPORT-HO - CUB YELLOW-99 (0716)

$

$

Not available

$

$

24

Cub Cadet 783-1449

Bracket, Battery, Hold Down

Variations

Cub Cadet 783-1449-0716

HOLD DOWN- - CUB YELLOW-99 (0716)

$

$

Not available

$

$

25

Cub Cadet 783-1499

Bracket, Rod, Dash
(Superseded to 783-1499-0637)

Variations

Cub Cadet 783-1499-0637

Lever Rod Retainer - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 746-1149

Control, Choke, 23 Lg.

$45.99

$

In Stock, only 1 left!

0

27

Cub Cadet 736-0222

Washer, External Lock, 1/4

$5.99

$

In Stock, only 3 left!

0

28

Cub Cadet 725-1426

Solenoid, 12V, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

29

Cub Cadet 725-1706

Battery, 270 CCA, Wet
(Superseded to 925-1707D)

$

$

Not available

30

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 738-1132

Screw, Shoulder, 1/4-20, .25 x .15

$5.49

$

In Stock, only 2 left!

0

32

Cub Cadet 710-0751

Screw, 1/4-20, .620, Gr5

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 710-0192

Screw, #10-24 X .375

$3.99

$

In Stock, Qty 12

0

34

Cub Cadet 714-0104

Internal Cotter Pin, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 710-0837

Screw, Oval Countersunk, #10-16 X .625

$4.49

$

In Stock, Qty 5

0

36

Cub Cadet 741-0501

Bearing, Steering Column, .634 ID x 1.36
(Superseded to 941-0501)

$

$

Not available

37

Cub Cadet 783-04003

Steering Bracket
(Superseded to 783-04003A-0637)

$24.99

$

Usually ships in 3-6 days

0
