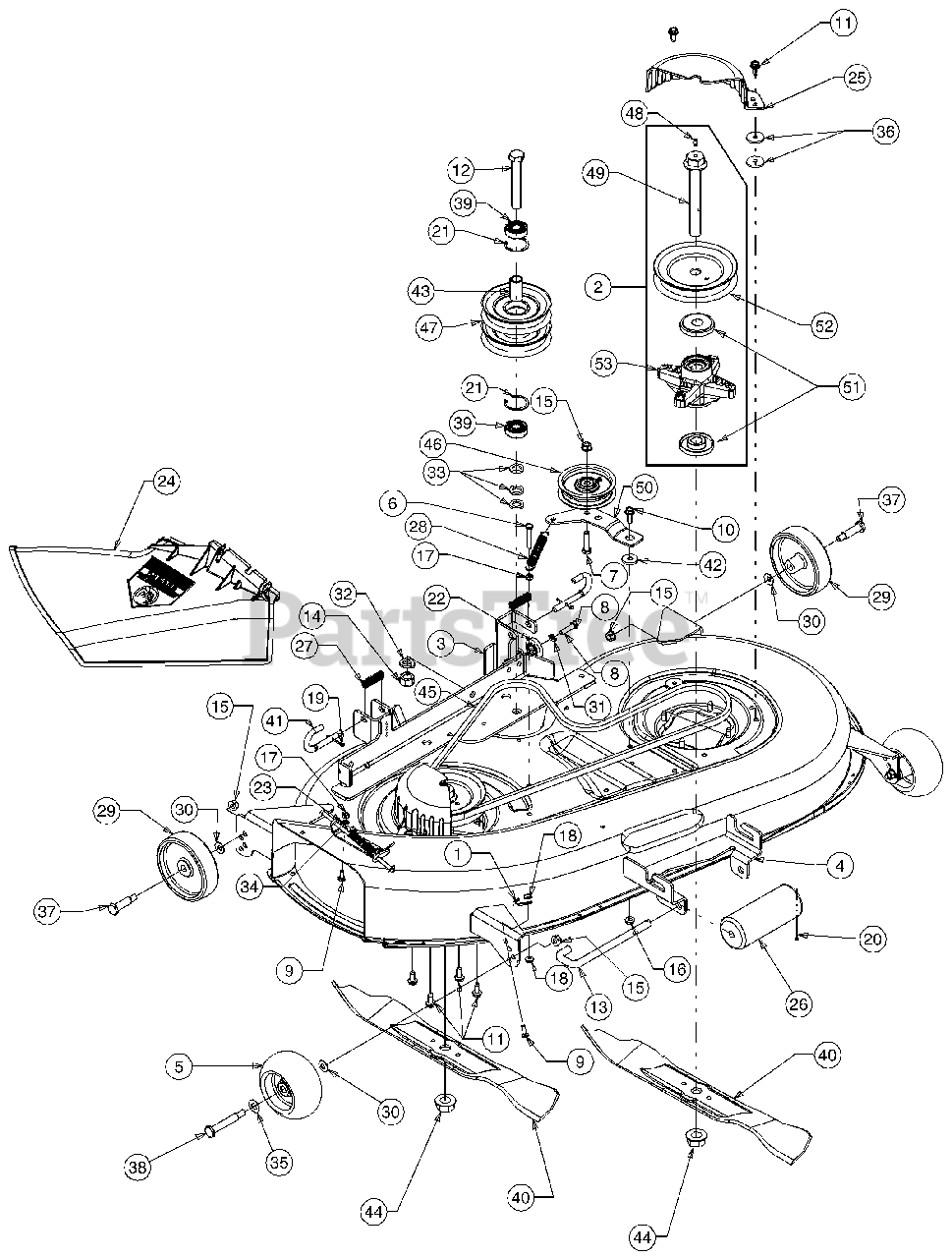

1517 (13A-231G100) - Cub Cadet Garden Tractor 42-Inch Cutting Deck Parts Diagram

Garden Tractor

42-Inch Cutting Deck Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Hook, Retainer
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Spindle Assembly, 42"

Note: (Not Available as Assembly)

$

$

Not available

3

Cub Cadet 683-0254

Bracket Assembly, Deck, Hanger LH
(Superseded to 683-0254B)

Variations

Cub Cadet 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0650

USE 683-0254B-0650 BRACKET AS - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0665

USE 683-0254B-0665 BRACKET AS - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 683-0607

Deck Assembly, 42"
(Superseded to 983-0607B-4021)

Variations

Cub Cadet 683-0607-0716

Mower Deck Shell, 42" - CUB YELLOW-99 (0716)

$521.99

$

Usually ships in 3-6 days

0

$521.99

$

Usually ships in 3-6 days

0

Cub Cadet 731-2363

Plug, Mulch

$29.99

$

In Stock, only 4 left!

0

Cub Cadet 783-1146A

Skirt, Deck
(Superseded to 753-0884)

Variations

Cub Cadet 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-1890

Wheel, Deck, 5.0 OD w/ Fitting
(Superseded to 703-1890A)

$39.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0136

Screw, 1/4-20, 1.75, Gr5

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0520

Screw, 3/8-16, 1.50, Gr5

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0751

Screw, 1/4-20, .620, Gr5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1238

Screw, 5/16-18, .875, Gr5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1260A

Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3151

Screw, 5/8-18, 4.25, Gr5

$20.99

$

In Stock, Qty 12

0

13

Cub Cadet 711-3314

Roller Pin, 1/2" x 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

14

Cub Cadet 712-0337

Nut, Hex, 5/8-18, Gr5

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

18

Cub Cadet 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

19

Cub Cadet 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

21

Cub Cadet 716-3020

Snap Ring, Internal
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 717-1553B

Adjustment Gear, Deck
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

23

Cub Cadet 726-0233

Nut, Push, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 731-1032B

Chute Assembly, Side Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

25

Cub Cadet 731-2486A

Cover, Belt, 42" Deck

$22.99

$

In Stock, only 1 left!

0

26

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

27

Cub Cadet 732-0306

Spring, Compression, .406 x .531 x 1.75 Lg
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

28

Cub Cadet 732-0470A

Spring, Extension .530 OD x 4.74 Lg
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 5

0

29

Cub Cadet 734-0973

Wheel Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0105

Washer, Bell, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0119

Washer, Lock, 5/16, Regular Duty
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0158

Washer, Lock, 5/8, Regular Duty

$4.49

$

In Stock, Qty 11

0

33

Cub Cadet 736-0162

Washer, Flat .64 ID x 1.00 OD x .12

$4.49

$

In Stock, Qty 14

0

Cub Cadet 783-04013-0637

Bracket, Stabilizer
(Superseded to 783-04013A-0637)

Note: (Not Shown)

$22.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0272

Washer, Flat, .510 x 1.00 x .060

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0343

Washer, Flat, .330 x 1.25 x .120

$4.49

$

In Stock, Qty 7

0

37

Cub Cadet 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

38

Cub Cadet 738-3056

Shoulder Screw - 1/2 Dia x 2.50 Lg.
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

39

Cub Cadet 741-0524

Bearing, .625 ID x 1.574 OD x .470
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

40

Cub Cadet 759-3830

Blade, 21.20 Lg, 3-in-1
(Superseded to 742P3033)

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3969

Blade, Low Lift
(Superseded to 742-3039-0637)

$55.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 747-1116

Rod, Handle, Deck Release .375 Dia

$12.99

$

In Stock, Qty 6

0

42

Cub Cadet 748-0331

Spacer, Shoulder .625 Dia x .324 Dia
(Superseded to 948-0331)

$

$

Not available

43

Cub Cadet 750-0932A

Spacer, .635 ID x .88 x 1.72
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11

0

44

Cub Cadet 712-3078

Nut, Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

45

Cub Cadet 754-0645

Belt, V-Type
(Superseded to 954-0645A)

$42.99

$

In Stock, only 2 left!

0

46

Cub Cadet 756-0627B

Pulley, Idler, 3.50 Dia.
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

47

Cub Cadet 756-1202

Pulley, Double, 5.0 x 5.0

$95.99

$

In Stock, only 2 left!

0

48

Cub Cadet 737-3000

Fitting, 3/16 Drive Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

49

Cub Cadet 710-1336A

Bolt, Spindle, 3/4-16, 4.25

$24.99

$

In Stock, Qty 8

0

50

Cub Cadet 783-1291

Bracket, Idler
(Superseded to 783-1291A-0637)

Variations

Cub Cadet 783-1291-0637

Idler Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 4 left!

0

$12.99

$

In Stock, only 4 left!

0

51

Cub Cadet 748-3065

Spacer, Spindle, Deck
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 14

0

52

Cub Cadet 756-3106

Pulley
(Superseded to 756-04459A)

$33.99

$

In Stock, only 1 left!

0

53

Cub Cadet 618-3129A

Spindle Housing Assembly
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

Cub Cadet 750-3190A

Spacer, Bearing, .780 x 1.000 x 1.0425

$13.99

$

In Stock, only 2 left!

0

Cub Cadet 721-3018A

Seal, Oil, Single Lip
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

Cub Cadet 741-3029

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet 741-3028

Bearing, Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

Cub Cadet 719-3118A

Housing, Spindle, Deck

$

$

Currently unavailable

Cub Cadet 753-0884

Kit, Deck Skirt with hardware

Note: (Not Shown)

$82.99

$

Usually ships in 3-6 days

0
