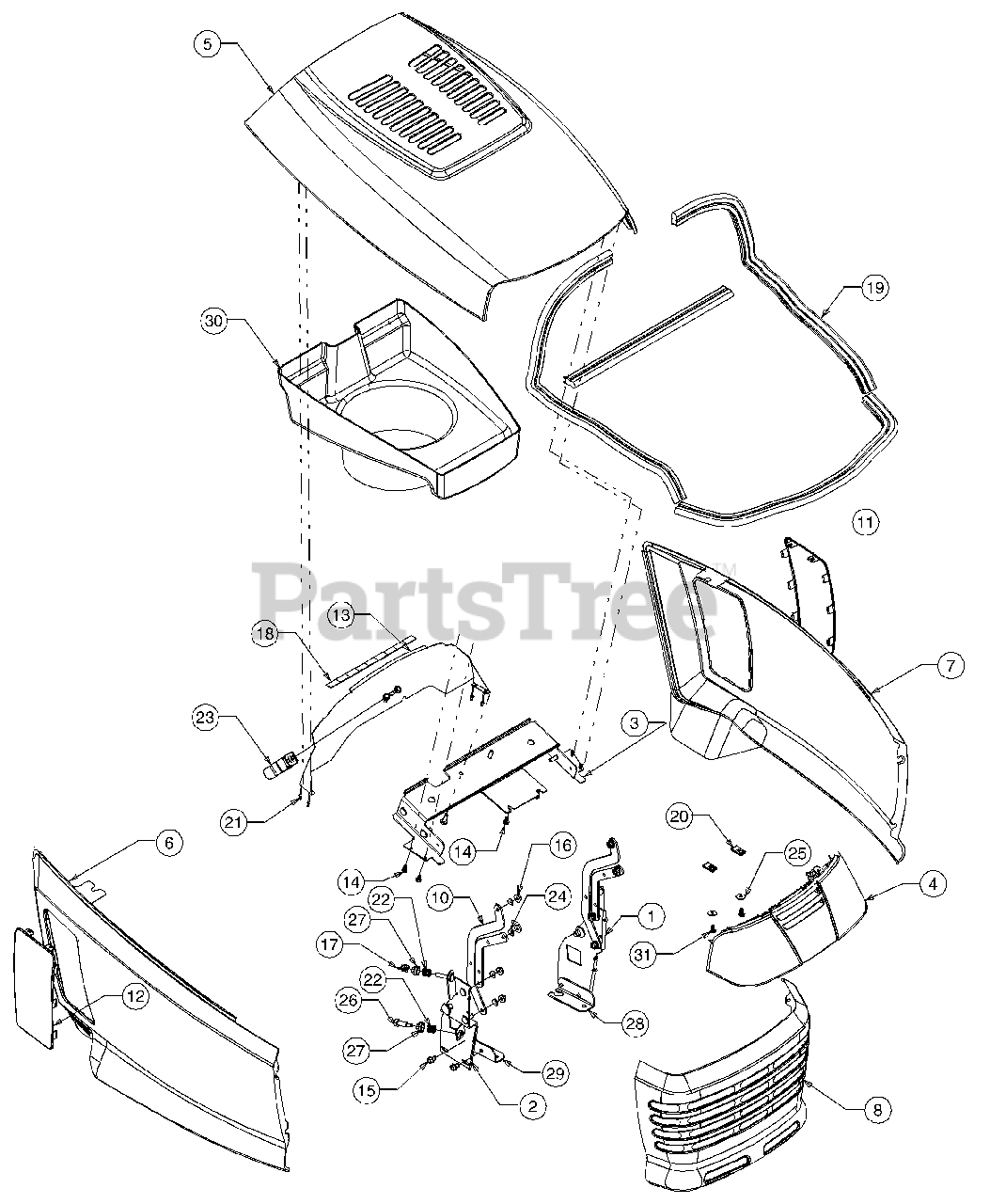

1515 (13A-201F100) - Cub Cadet Garden Tractor Hood & Grille Parts Diagram

Garden Tractor

Hood & Grille Parts Diagram

  • Title
1

Cub Cadet 603-0211

Bracket Assembly, Grille LH

$

$

Not available

2

Cub Cadet 603-0212

Bracket Assembly, Grille RH
(Superseded to 603-0212A)

$

$

Not available

3

Cub Cadet 603-0583A

Bracket Assembly, Hood

$

$

Currently unavailable

4

Cub Cadet 625-0053

Headlight Assembly, Front
(Superseded to 925-04001A)

$158.99

$

In Stock, Qty 9

0

Cub Cadet 725-0963

Miniature Lamp, 12V Socket-type
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

Cub Cadet 725-1649

Socket,Lamp, Nylon 1/4-Turn
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

Cub Cadet 731-3138A

Lens
(Superseded to 759-3947)

$179.99

$

In Stock, only 3 left!

0

Cub Cadet 731-3295

Reflector, Headlight

$

$

Currently unavailable

5

Cub Cadet 703-05000

Hood
(Superseded to 703-05000A-0499)

Variations

Cub Cadet 703-05000-0499

USE 703-05000A-0499 HOOD-3000 - CUB BEIGE (0499)

$270.99

$

Usually ships in 3-6 days

0

$270.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-2396

Side Panel, RH
(Superseded to 703-2396-0499)

Variations

Cub Cadet 703-2396-0499

Side Panel R/H - CUB BEIGE (0499)

$260.99

$

Usually ships in 3-6 days

0

$260.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2397

Side Panel, LH
(Superseded to 703-2397-0499)

Variations

Cub Cadet 703-2397-0499

SIDE PANEL L/H - CUB BEIGE (0499)

$

$

Not available

$

$

8

Cub Cadet 703-2398

Grille
(Superseded to 703-2398-0499)

Variations

Cub Cadet 703-2398-0499

Grille - CUB BEIGE (0499)

$159.99

$

Usually ships in 3-6 days

0

$159.99

$

Usually ships in 3-6 days

0

?9

Cub Cadet 703-2465

Link, Hood Upper 6.06

Variations

Cub Cadet 703-2465-0637

Hood Link - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-2466A

Link, Hood, Rear
(Superseded to 703-2466B)

$

$

Not available

11

Cub Cadet 703-2495

Screen, LH Side Panel

Variations

Cub Cadet 703-2495-0499

SCREEN (LH) PANEL - CUB BEIGE (0499)

$

$

Not available

$

$

12

Cub Cadet 703-2496

Screen, RH Side Panel
(Superseded to 703-2496-0499)

Variations

Cub Cadet 703-2496-0499

PANEL SCREEN (RH) - CUB BEIGE (0499)

$

$

Not available

$

$

13

Cub Cadet 703-2563A

Bulkhead, Hood, Upper

$

$

Not available

14

Cub Cadet 710-0351

Screw, #10-16, 0.500, Pan Phillips

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

17

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 722-3021

Tape, Two-sided Adhesive Foam

$

$

Currently unavailable

19

Cub Cadet 723-3061

Seal, Heat Baffle

$2.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 726-0139

Nut, Speed, 10z U-type

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 728-0117

Rivet, Pop, .125 OD, #42

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-0334

Spring, Compression, .50 OD x .5 Lg

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 732-0855A

Spring, Latch, Hood

$

$

Not available

24

Cub Cadet 736-0175

Washer, Spring, .265 x.562 x.025
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

25

Cub Cadet 736-0400

Washer, Flat, .194 x .62 OD x .063

$5.49

$

In Stock, Qty 12

0

26

Cub Cadet 738-3141

Screw, Shoulder, .31 x .75, 1/4-20

$5.49

$

In Stock, Qty 20+

0

27

Cub Cadet 748-3055

Bushing, Tapered, .32 ID x .69 OD
(Superseded to 948-3055)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 783-1467A

Bracket, Mounting, Grille LH
(Superseded to 783-1467-0499)

Variations

Cub Cadet 783-1467A-0499

USE 783-1467-0499 BRACKET-GRI - CUB BEIGE (0499)

$

$

Not available

$

$

29

Cub Cadet 783-1468A

Bracket, Mounting, Grille RH
(Superseded to 783-1468-0499)

Variations

Cub Cadet 783-1468A-0499

USE 783-1468-0499 BRACKET-GRI - CUB BEIGE (0499)

$

$

Not available

$

$

30

Cub Cadet 731-04009

Plenum, Hood

$

$

Not available

31

Cub Cadet 710-0436

Hex Screw, #10-16 x 0.625
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0
