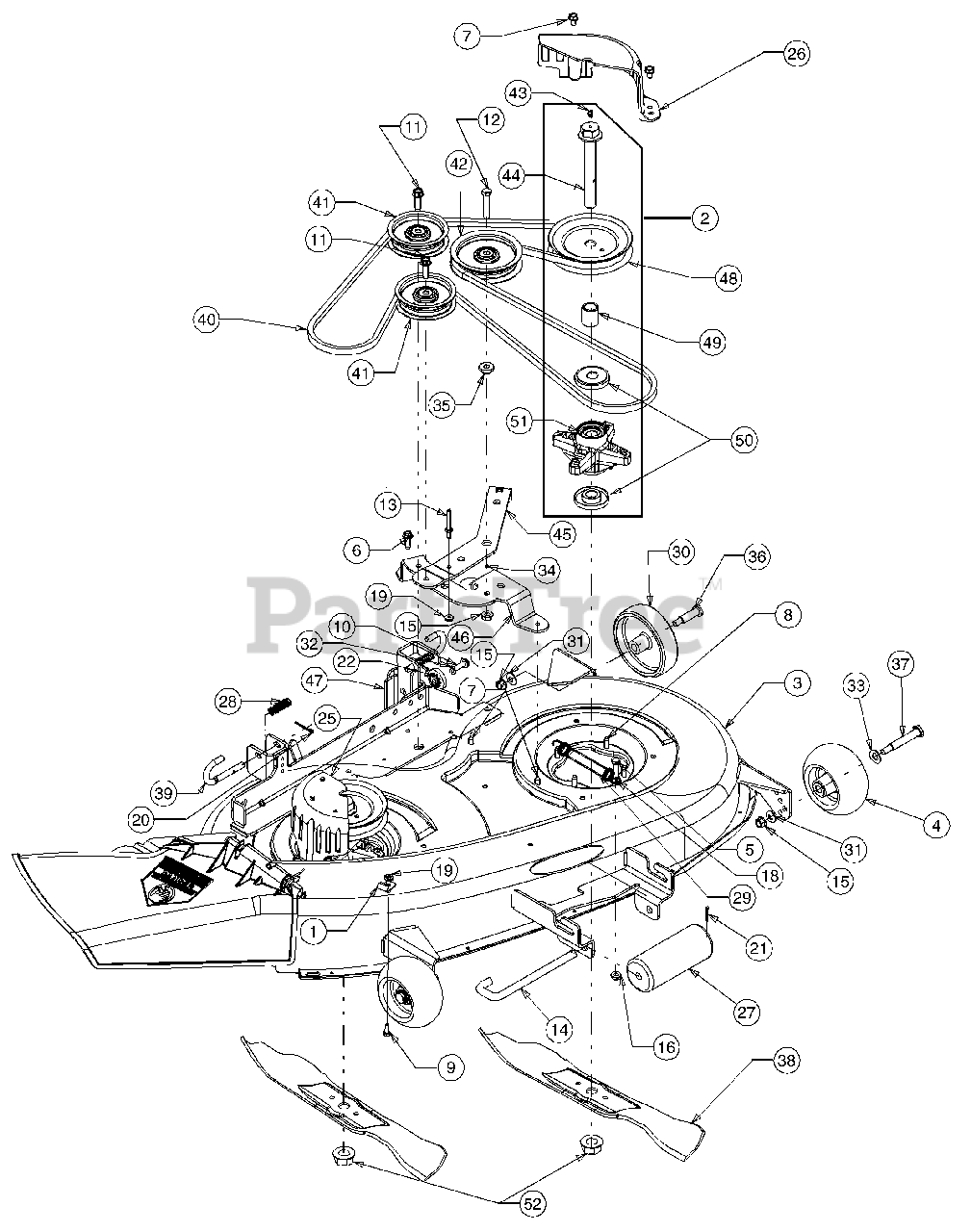

1515 (13A-201F100) - Cub Cadet Garden Tractor 38-Inch Cutting Deck Parts Diagram

Garden Tractor

38-Inch Cutting Deck Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Hook, Retainer
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Spindle Assembly, 38" (Not available as assembly)

$

$

Not available

3

Cub Cadet 683-0611

Deck Assembly, 38" (Shell)

Variations

Cub Cadet 683-0611-0716

SHELL-DECK 38" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 731-1032B

Chute Assembly, Side Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

Cub Cadet 731-2363

Plug, Mulch

$29.99

$

In Stock, only 4 left!

0

Cub Cadet 783-1297

Skirt, Deck
(Superseded to 783-1297-0637)

Variations

Cub Cadet 783-1297-0637

Skirt Extension, 38" Deck - POWDER BLACK (0637)

$30.99

$

In Stock, only 3 left!

0

$30.99

$

In Stock, only 3 left!

0

4

Cub Cadet 703-1890

Wheel, Deck, 5.0 OD w/ Fitting
(Superseded to 703-1890A)

$39.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0602

Screw, Self-tapping, 5/16-18, 1.000

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0650

Screw, Self-tapping, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0751

Screw, 1/4-20, .620, Gr5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0817

Screw, Self-tapping, 5/16-18, 1.250

$6.99

$

In Stock, Qty 15

0

11

Cub Cadet 710-1315

Screw, Self-tapping, 3/8-16, 1.250

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3144

Screw, 3/8-16, 2.00, Gr5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 711-0747

Pin, Guide, .250 Dia x 1.68 Lg

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 711-3314

Roller Pin 1/2" x 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

15

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

18

Cub Cadet 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

22

Cub Cadet 717-1553B

Adjustment Gear, Deck
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 14

0

23

Cub Cadet 726-0233

Nut, Push, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 731-1032B

Chute Assembly, Side Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

25

Cub Cadet 731-2231B

Cover, Belt, Deck

$46.99

$

In Stock, only 3 left!

0

26

Cub Cadet 731-2609A

Cover, Belt, Deck, LH

$

$

Not available

27

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

28

Cub Cadet 732-0306

Spring, Compression, .406 x .531 x 1.75 Lg
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

29

Cub Cadet 732-0556

Spring, Extension .94 x 7.57
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 734-0973

Wheel Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0105

Washer, Bell, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0119

Washer, Lock, 5/16, Regular Duty
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0272

Washer, Flat, .510 x 1.00 x .060

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 737-3007

Grease, Alvania Ep 2

$

$

Currently unavailable

35

Cub Cadet 738-0372A

Spacer, Shoulder, 1.00 x .38 x .38
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

36

Cub Cadet 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-3056

Shoulder Screw - 1/2 Dia x 2.50 Lg.
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

38

Cub Cadet 759-3829

Blade, 19.38 Lg, 3-in-1
(Superseded to 742P3032)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 759-3970

Blade, Low Lift

$42.99

$

In Stock, only 1 left!

0

39

Cub Cadet 747-1116

Rod, Handle, Deck Release .375 Dia

$12.99

$

In Stock, Qty 6

0

40

Cub Cadet 754-0641

Belt, V-Type
(Superseded to 954-0641)

$58.99

$

In Stock, only 4 left!

0

41

Cub Cadet 756-0627B

Pulley, Idler, 3.50 Dia.
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

42

Cub Cadet 756-1229

Pulley, Idler, 4.06 Dia. w/ Flange

$47.99

$

In Stock, Qty 20+

0

43

Cub Cadet 737-3000

Fitting, 3/16 Drive Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 710-04226

Bolt, Spindle, 3/4-16, 5.85 (solid bolt, no grease fitting)

$25.99

$

In Stock, Qty 12

0

44

Cub Cadet 710-1889

Bolt, Spindle, 3/4-16, 5.85 Greaseable spindle (No longer available) replace with 710-04226, 618-04217 & 737-3000
(Superseded to 710-04226)

$25.99

$

In Stock, Qty 12

0

45

Cub Cadet 783-1417

Bracket, Idler, Arm
(Superseded to 783-1417A)

Variations

Cub Cadet 783-1417-0716

Deck Idler Arm - CUB YELLOW-99 (0716)

$27.99

$

In Stock, only 3 left!

0

$27.99

$

In Stock, only 3 left!

0

46

Cub Cadet 783-1418

Bracket, Idler

Variations

Cub Cadet 783-1418-0637

Idler Deck Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-1418-0716

Idler Deck Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$

$

47

Cub Cadet 783-1433

Bracket, Deck, Hanger Adjustment

Variations

Cub Cadet 783-1433-0716

BRACKET-DECK ADJUS(CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

48

Cub Cadet 756-3106

Pulley
(Superseded to 756-04459A)

$33.99

$

In Stock, only 1 left!

0

49

Cub Cadet 750-1000

Spacer, .80 x 1.10 x 1.330

$4.49

$

In Stock, Qty 7

0

50

Cub Cadet 748-3065

Spacer, Spindle, Deck
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 14

0

51

Cub Cadet 618-04217

Spindle Housing Assembly (Greaseable) Includes bearings and seals
(Superseded to 918-04217)

Note: Also furnish 737-3000 grease fitting for housing. Use with 710-04226 spindle bolt.

$153.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 618-3129A

Spindle Housing Assembly (Non Greaseable) Includes bearings and seals
(Superseded to 918-3129C)

Note: use with 710-1889 greaseable spindle bolt

$112.99

$

In Stock, Qty 20+

0

Cub Cadet 750-3190A

Spacer, Bearing, .780 x 1.000 x 1.0425

$13.99

$

In Stock, only 2 left!

0

Cub Cadet 721-3018A

Seal, Oil, Single Lip
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

Cub Cadet 741-3029

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet 741-3028

Bearing, Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

52

Cub Cadet 712-3078

Nut, Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

Cub Cadet 783-1297-0637

Skirt, Extension (Not Shown)

$30.99

$

In Stock, only 3 left!

0

Cub Cadet 710-0599

Screw, Hex (Not Shown)

$4.49

$

In Stock, Qty 20+

0
