1512 (147-882-100) - Cub Cadet Garden Tractor Fuel Filters, Electric Pump & Hoses Parts Diagram

Garden Tractor

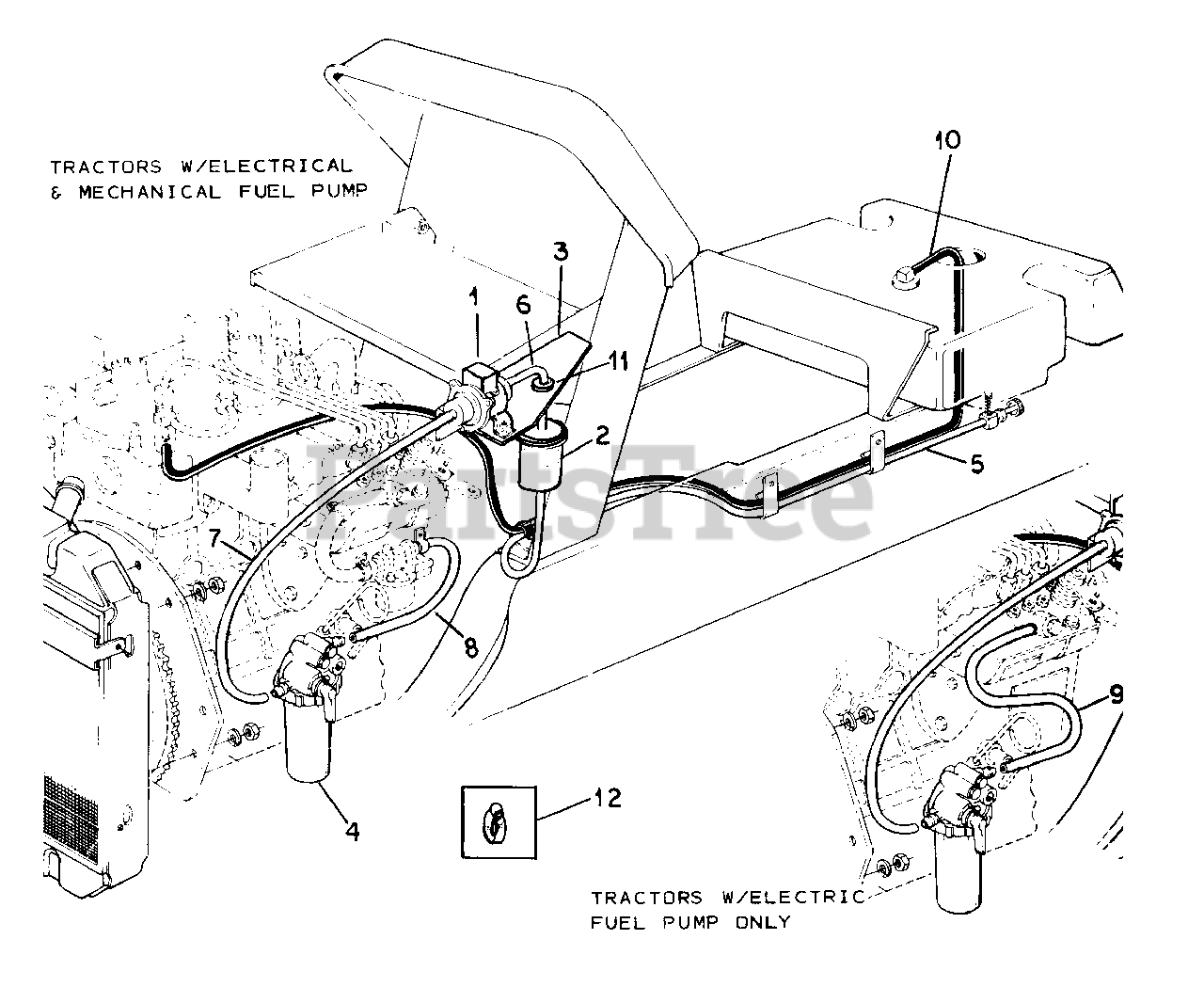

Fuel Filters, Electric Pump & Hoses Parts Diagram

  • Title

1

Cub Cadet KB-68371-51210

Pump, Fuel, Electric

$498.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0751

Bolt, 1/4 X 5/8 Type 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-3006

Washer, 1/4 Ext-Int Tooth Lock

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 736-0329

Washer, 1/4 Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.99

$

In Stock, Qty 19

0

Cub Cadet 710-3100

Bolt, 5/16 X 5/8 Type 5

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet KB-13351-43010

Filter, Fuel, Pre-Filter
(Superseded to KB-12581-43012)

$44.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-1080

Support, Fuel Pump

$

$

Not available

Cub Cadet 710-0751

Bolt, 1/4 X 5/8 Type 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, 1/4 Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet KB-19204-43010

Filter, Fuel
(Superseded to KB-1G313-43010)

$114.99

$

Usually ships in 3-6 days

0

5

Hose, Fuel Tank to Pre-Filter

Note: (Furnish 980MM of Hose); Fuel Hoses are 1/2 OD and furnished from bulk roll marked 759-3330, 10 ft lg

$

$

Not available

6

Hose, Fuel Pre-Filter to Electric Pump

Note: (Furnish 115MM of Hose); Fuel Hoses are 1/2 OD and furnished from bulk roll marked 759-3330, 10 ft lg

$

$

Not available

7

Hose, Fuel-Electric Pump to Fuel Filter

Note: (Furnish 410MM of Hose); Fuel Hoses are 1/2 OD and furnished from bulk roll marked 759-3330, 10 ft lg

$

$

Not available

8

Hose, Fuel-Filter to Mechanical Pump

Note: (Furnish 255MM of Hose); Fuel Hoses are 1/2 OD and furnished from bulk roll marked 759-3330, 10 ft lg

$

$

Not available

9

Hose, Fuel Filter to Injection Pump

Note: (For Tractors w/o Mechanical Pump); (Furnish 205MM of Hose); Fuel Hoses are 1/2 OD and furnished from bulk roll marked 759-3330, 10 ft lg

$

$

Not available

10

Hose, Fuel-Engine to Tank Return

Note: (Furnish 1700MM of Hose); Fuel Hoses are 1/2 OD and furnished from bulk roll marked 759-3330, 10 ft lg

$

$

Not available

11

Cub Cadet 723-3041

Grommet

$

$

Currently unavailable

12

Cub Cadet 726-0146

Clamp, Hose

$

$

Not available

Cub Cadet IH-223330-C1

Clamp, Hose
(Superseded to 726-0205)

Note: (Return Line at Fuel Tank)

$3.99

$

In Stock, Qty 20+

0
