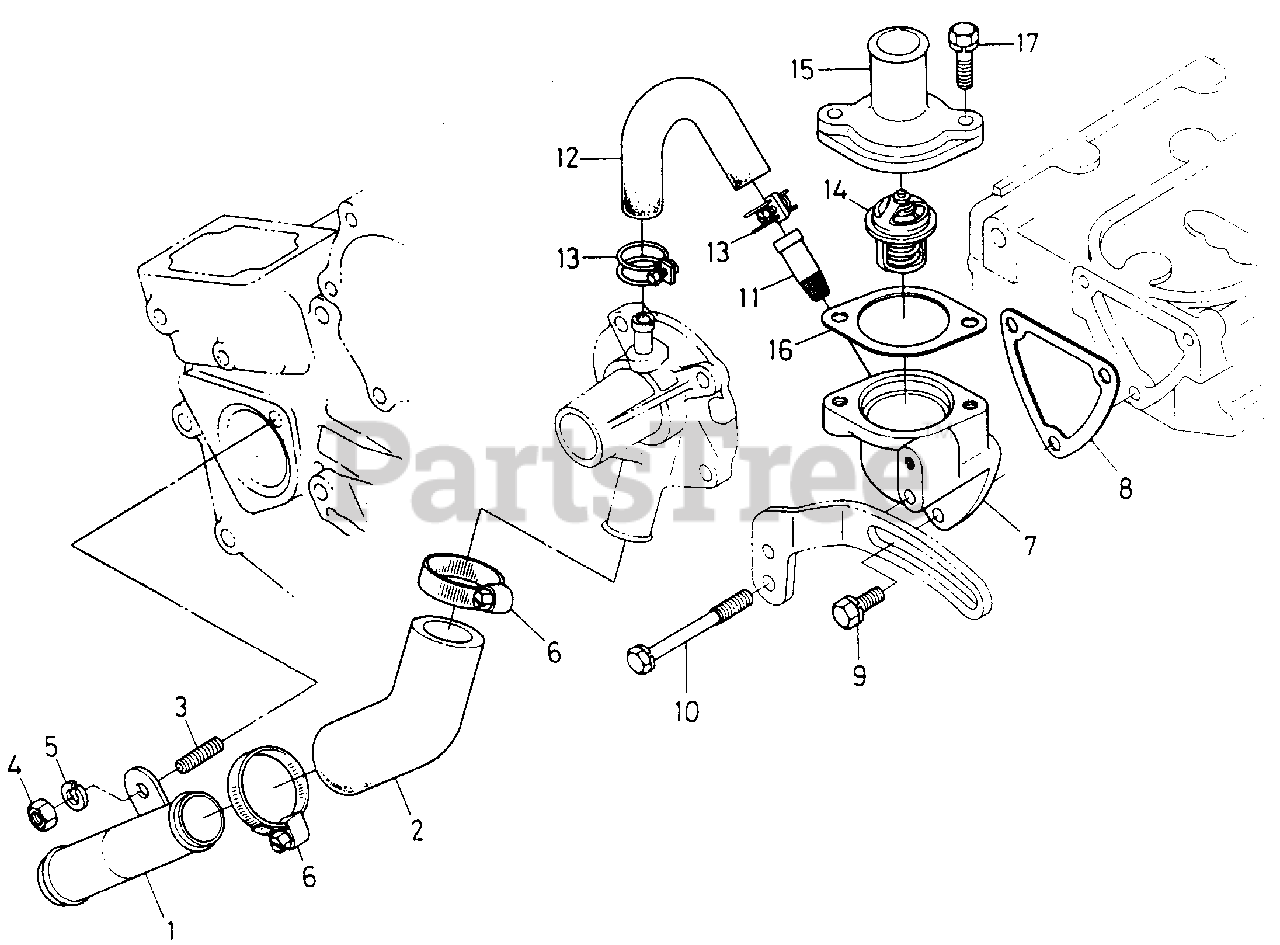

1512 (146-882-100) - Cub Cadet Garden Tractor Water Pump Hoses & Thermostat Parts Diagram

Garden Tractor

Water Pump Hoses & Thermostat Parts Diagram

  • Title

1

Cub Cadet KB-15841-72860

Pipe, Water 2

$

$

Not available

2

Cub Cadet KB-15841-72870

Pipe, Water 3

$

$

Not available

3

Cub Cadet KB-15841-91510

Stud

$

$

Not available

4

Cub Cadet KB-02056-50060

Nut, M6 Znd Class 8

$

$

Not available

5

Cub Cadet KB-04512-50060

Washer, 6MM Lock
(Superseded to KB-04512-70060)

$

$

Not available

6

Cub Cadet 726-3037

Clamp. No. 16 Type F Hose

$

$

Not available

7

Cub Cadet KB-15841-72910

Housing, Thermostat

$

$

Not available

8

Cub Cadet KB-15841-72920

Gasket
(Superseded to KB-15841-72923)

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet KB-01023-50616

Bolt, M6 X 16 Class 8.8

$

$

Not available

Cub Cadet KB-04512-50060

Washer, 6MM Lock
(Superseded to KB-04512-70060)

$

$

Not available

10

Cub Cadet KB-15841-91040

Bolt

$

$

Not available

11

Cub Cadet KB-15531-73340

Pipe, Water Return 1

$

$

Not available

12

Cub Cadet KB-15841-73350

Pipe, Water Return 2

$

$

Not available

13

Cub Cadet IH-274085-R91

Clamp, No. 10 Type F Hose

$

$

Currently unavailable

14

Cub Cadet KB-15531-73010

Thermostat
(Superseded to KB-15531-73014)

$

$

Not available

15

Cub Cadet KB-15841-73260

Cover, Thermostat

$

$

Not available

16

Cub Cadet KB-15531-73270

Gasket, Thermostat
(Superseded to KB-16851-73270)

$31.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KB-01023-50622

Bolt

$

$

Not available
