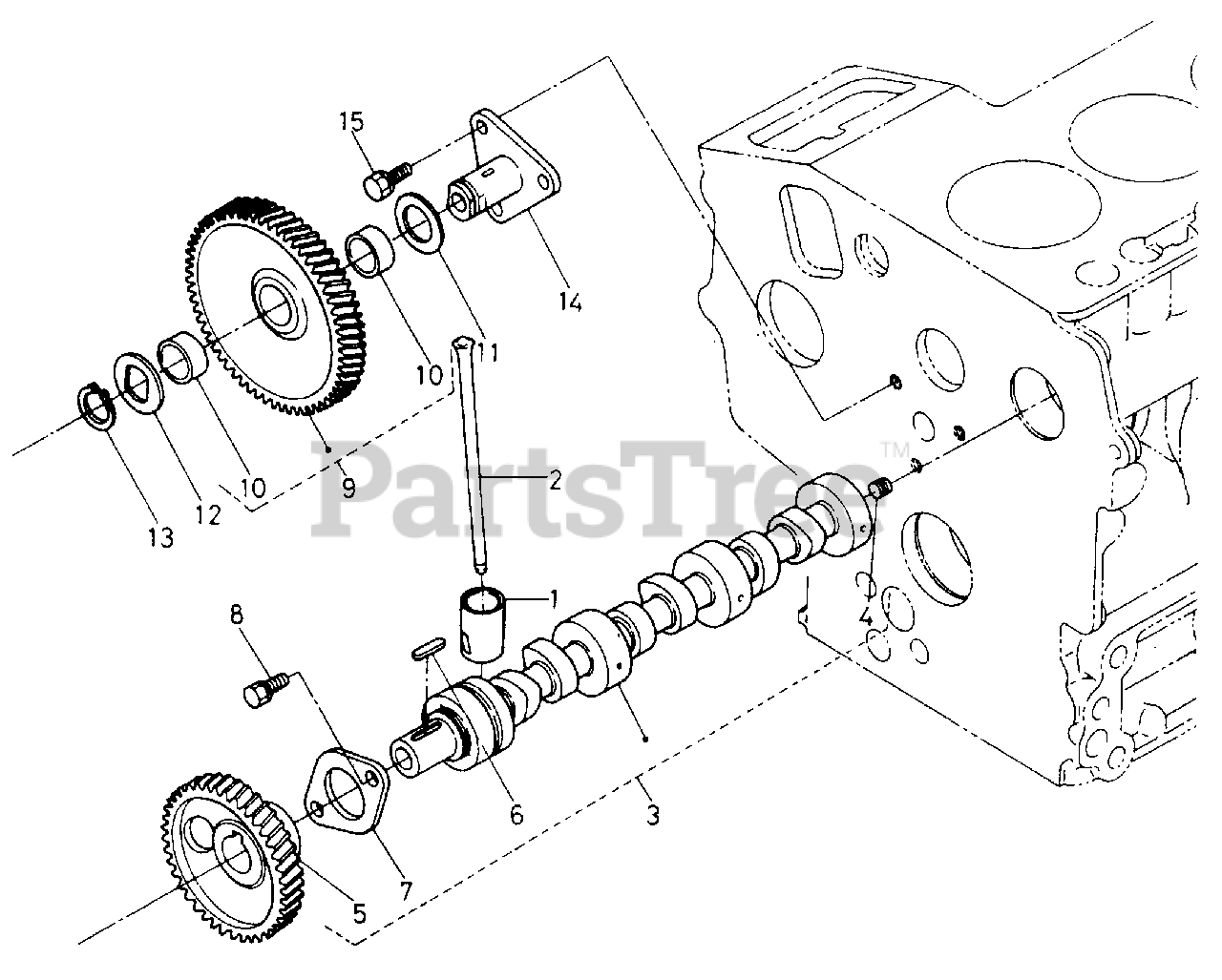

1512 (146-882-100) - Cub Cadet Garden Tractor Camshaft & Push Rod Parts Diagram

Garden Tractor

Camshaft & Push Rod Parts Diagram

  • Title

$

$

Not available

$

$

Not available

3

Cub Cadet KB-15861-16010

Camshaft w/Gear

Note: (Includes Ref No. 4, 5, 6 & 7)

$

$

Not available

$

$

Not available

5

Cub Cadet KB-15841-16510

Gear, Camshaft

$

$

Not available

$

$

Not available

7

Cub Cadet KB-15841-16270

Stop, Camshaft

$

$

Not available

8

Cub Cadet KB-01023-50612

Bolt, M6 X 12 Class 8.8

$

$

Not available

Cub Cadet KB-04512-50060

Washer, 6MM Lock
(Superseded to KB-04512-70060)

$

$

Not available

9

Cub Cadet KB-15841-24010

Gear Assy, Idler

Note: (Includes Ref No. 10)

$

$

Currently unavailable

$

$

Not available

11

Cub Cadet KB-14541-24360

Collar, Idler Gear

$

$

Currently unavailable

12

Cub Cadet KB-14541-24370

Collar, Idler Gear

$

$

Not available

13

Cub Cadet KB-15841-24320

Ring, Retaining

$

$

Currently unavailable

14

Cub Cadet KB-15841-24250

Shaft, Idler Gear

$

$

Not available

15

Cub Cadet KB-01053-50614

Bolt, M6 X 14MM Class 8.8

$

$

Currently unavailable

Cub Cadet KB-04512-50060

Washer, 6MM Lock
(Superseded to KB-04512-70060)

$

$

Not available
