1512 (146-882-100) - Cub Cadet Garden Tractor Air Cleaner & Connections Parts Diagram

Garden Tractor

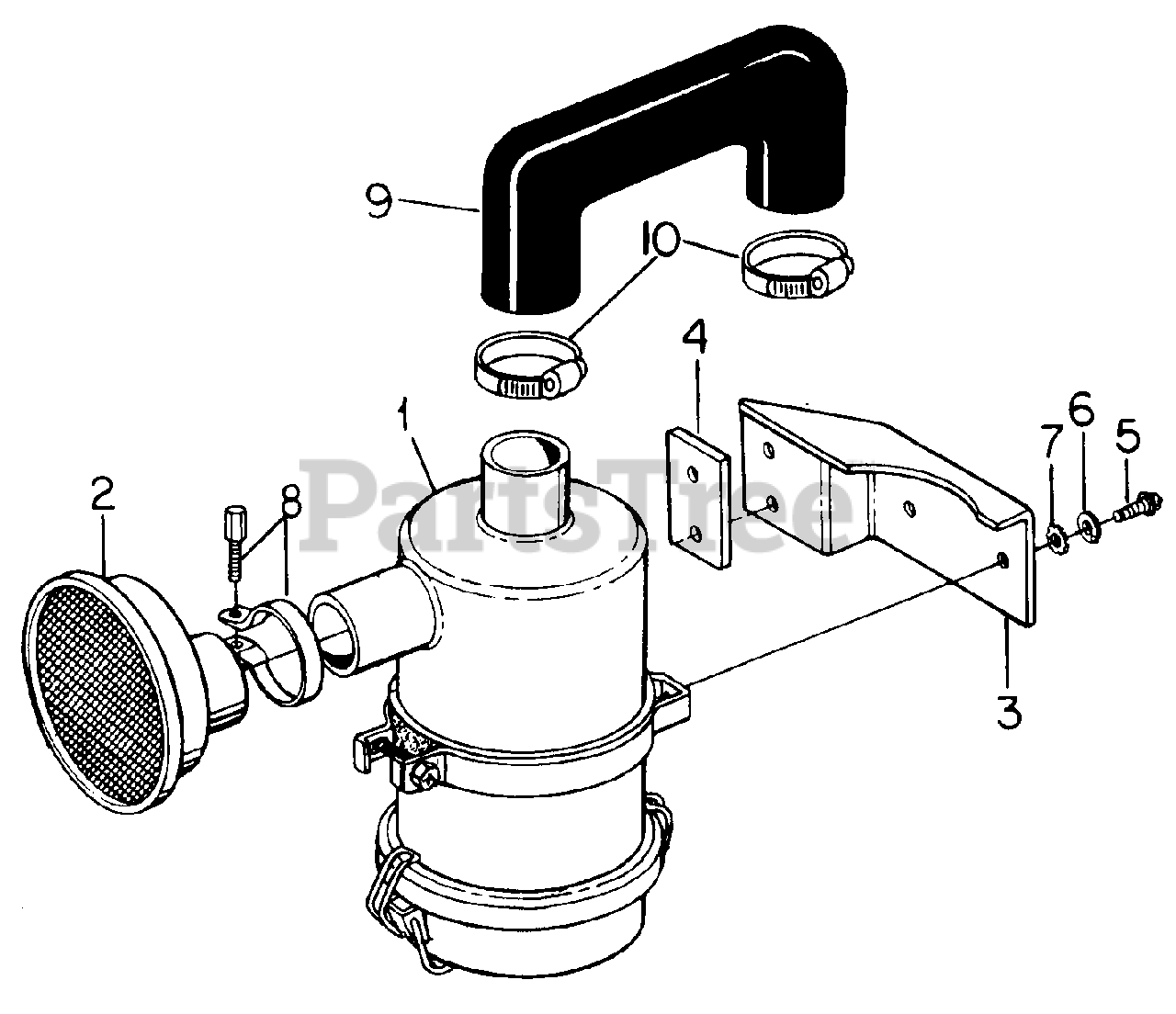

Air Cleaner & Connections Parts Diagram

  • Title
1

Cub Cadet KB-15372-11010

Cleaner Assy, Air

Note: (For Components See Separate Listing)

$

$

Not available

2

Cub Cadet 703-0953

Intake Assy, Air

$

$

Not available

3

Cub Cadet 703-0983

Bracket, Air Cleaner

$

$

Not available

4

Cub Cadet 735-3021

Pad, Isomount

$

$

Not available

5

Cub Cadet 710-3137

Bolt, M8 X 20 Phc Class 8.8

$

$

Not available

6

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-3007

Washer, 5/16 Ext-Int Tooth Lock

$

$

Not available

8

Cub Cadet 726-3033

Clamp, Air Cleaner Screen

$

$

Not available

9

Cub Cadet 735-3018

Hose, Air Cleaner to Intake Manifold

$

$

Not available

10

Cub Cadet 726-3033

Clamp, Air Cleaner Hose

$

$

Not available
