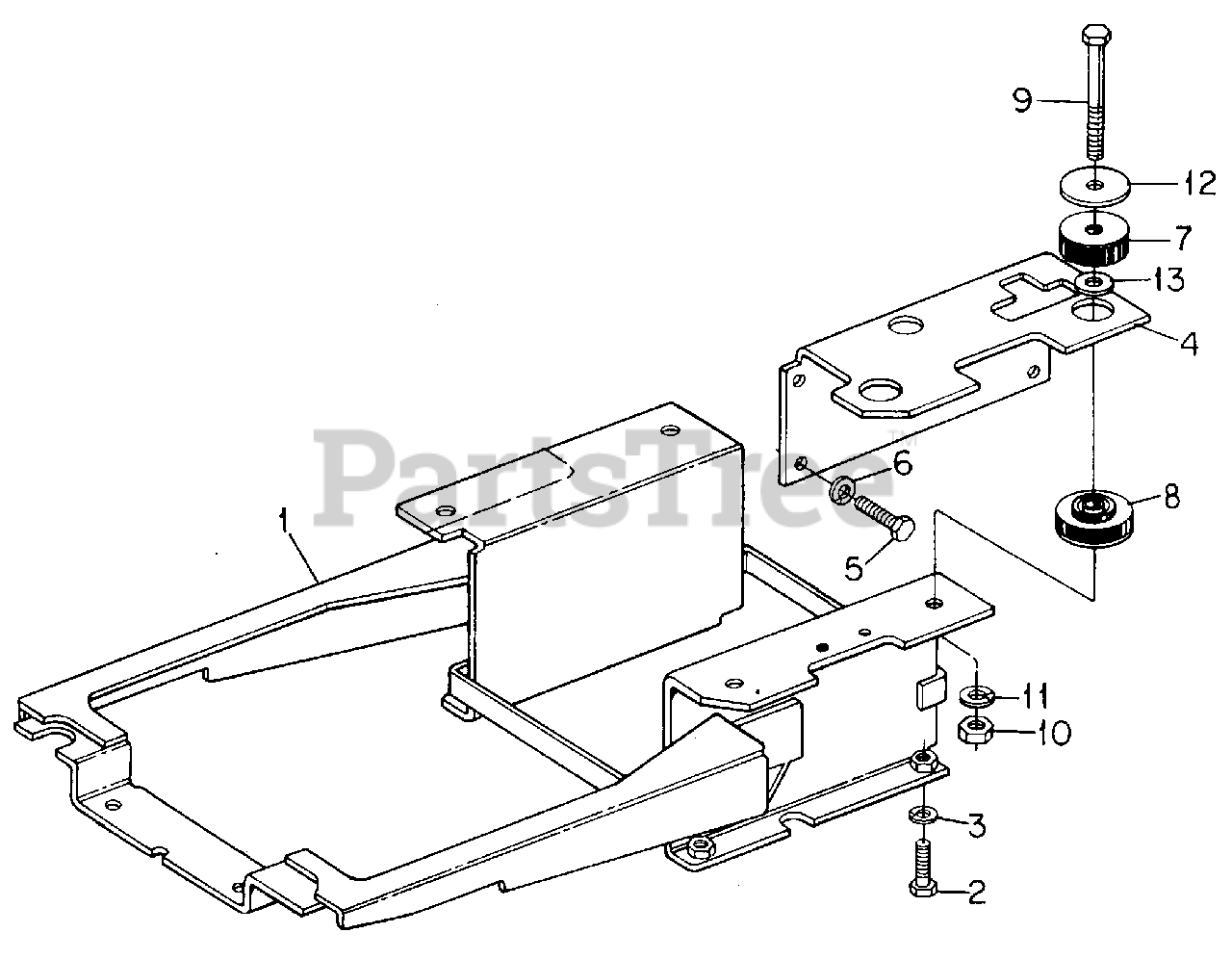

1512 (145-882-100) - Cub Cadet Garden Tractor Engine & Mounting Parts Diagram

Garden Tractor

Engine & Mounting Parts Diagram

  • Title

Cub Cadet KB-D600B-1

Engine Assy

$

$

Currently unavailable

1

Cub Cadet 703-0981

Mount, Engine & Radiator

$

$

Not available

2

Cub Cadet 710-3005

Bolt, 3/8 X 1-1/4 Type 5

$3.99

$

In Stock, Qty 10

0

3

Cub Cadet 736-0169

Washer, 3/8 Lock

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 703-0959

Plate, Engine, LH

Variations

Cub Cadet 703-0959-0498

ENGINE PLATE (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-0959-0637

ENGINE PLATE (LH)(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 703-0960

Plate, Engine RH

Note: (Not Shown)

Variations

Cub Cadet 703-0960-0637

ENGINE PLATE (RH)(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 710-3136

Bolt, M10 X 1.25 X 25-8.8

$

$

Not available

6

Cub Cadet 736-3076

Washer, 10MM Lock

$

$

Not available

7

Cub Cadet 722-3006

Mount, Engine
(Superseded to 922-3006)

$

$

Not available

8

Mount, Engine Load

Note: (Included in Ref No. 7)

$

$

Not available

9

Cub Cadet 710-3011

Bolt, 3/8 X 2-1/4 Type 5

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet 736-0169

Washer, 3/8 Lock

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0227

Washer, .406 X 1.500 X .105

$6.49

$

In Stock, Qty 13

0

13

Cub Cadet 736-3072

Washer, Flat

$4.49

$

In Stock, Qty 20+

0
