1510 PS (1691725) - Simplicity Walk-Behind Mower Handles & Controls Group Parts Diagram

Walk-Behind Mower

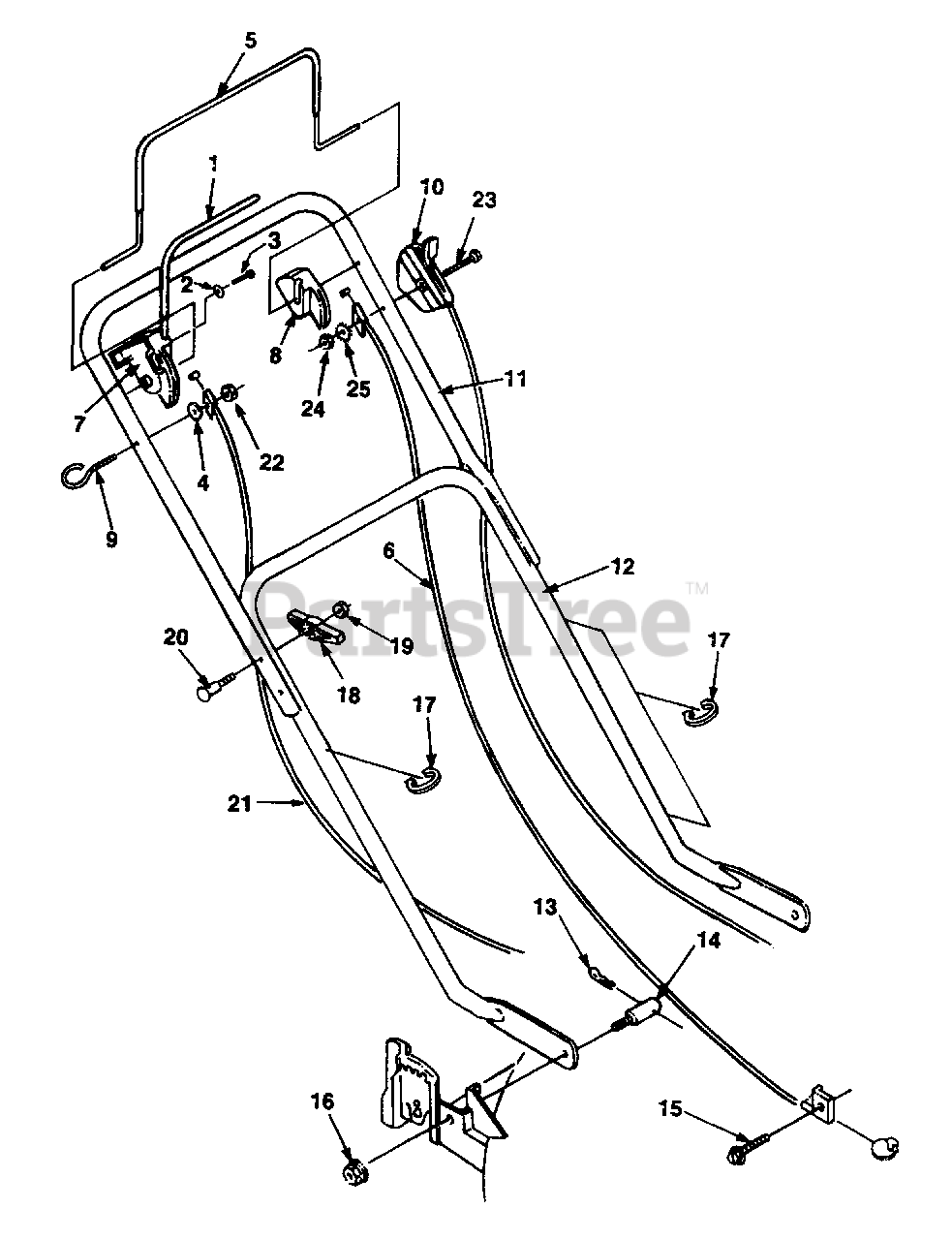

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 1612404

TRACTION LEVER

Note: Used on Mfg. No. 1691726

$

$

Not available

2

Simplicity 1910531SM

WASHER, Flat, 1/4"

Note: Used on Mfg. No. 1691726

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960001SM

SCREW, Hex Hd., 10-16 x 1/2"
(Superseded to 703062)

Note: Used on Mfg. No. 1691726

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 1717312SM

WASHER

Note: Used on Mfg. No. 1691725

$

$

Not available

5

Simplicity 1612359

BAIL, Brake Control

Note: Used on Mfg. No. 1691725

$

$

Not available

5

Simplicity 1612360

BAIL, Brake Control

Note: Used on Mfg. No. 1691726

$

$

Not available

6

Simplicity 1612362

CONTROL, Manual Start

$

$

Not available

7

Simplicity 1612364

ACTUATOR, R.H.

Note: Used on Mfg. No. 1691726

$

$

Not available

8

Simplicity 1612365

ACTUATOR, L.H.

$

$

Not available

9

Simplicity 1612366

EYEBOLT, 1/4-20 x 1-3/4"

$

$

Not available

10

Simplicity 1612396

CONTROL, Throttle

$

$

Not available

11

Simplicity 1612361

HANDLE, Upper

$

$

Not available

12

Simplicity 1612372

HANDLE, Lower

$

$

Not available

13

Simplicity 1960221SM

PIN, Cotter
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

14

Simplicity 1612233

STUD

$

$

Not available

15

Simplicity 1929477SM

SCREW, 10-24 x 1 /2"

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1935048SM

NUT, Flanged, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1701011SM

CLAMP, Cable

$5.49

$

In Stock, only 2 left!

0

18

Simplicity 1612220

KNOB, Handle

$

$

Not available

19

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1960273SM

BOLT
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

21

Simplicity 1612363SM

CABLE, Traction Control

Note: Used on Mfg. No. 1691726

$

$

Not available

22

Simplicity 1923358SM

NUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1921963SM

BOLT

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 1916621SM

NUT, Hex, 1/4-20

$3.49

$

In Stock, Qty 11

0

25

Simplicity 1921880SM

WASHER, External Tooth, 1/4"

$3.49

$

Usually ships in 2-12 days

0
