151 (151315) - Cub Cadet 21" Snow Thrower (1985) Snow Thrower Parts Diagram

21" Snow Thrower

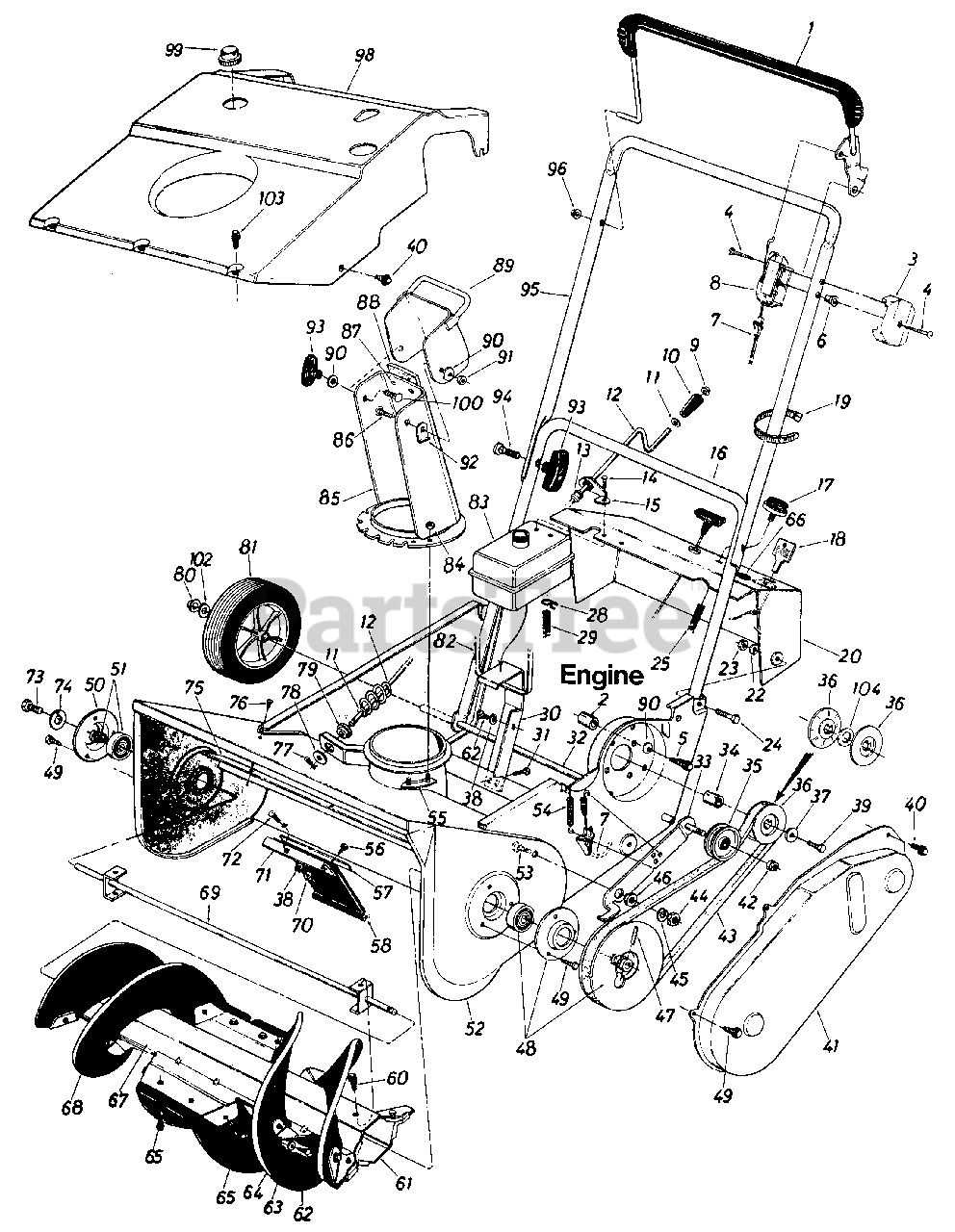

Snow Thrower Parts Diagram

  • Title

1

Cub Cadet 731-0609

BAIL-LH

$

$

Not available

2

Cub Cadet 750-0589

SPACER
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-0525

PANEL HALF-CONTROL

$

$

Not available

4

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

7

Cub Cadet 746-0506

CABLE-CLUTCH
(Superseded to 946-0506)

$37.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-0526

PANEL HALF-CONTROL

$

$

Not available

9

Cub Cadet 726-0100

NUT-PUSH

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 720-0171

KNOB W/38 HOLE-BLACK
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

11

Cub Cadet 736-0140

WASHER-FL-.385 ID X .62 OD X .063

$7.49

$

In Stock, Qty 7

0

12

Cub Cadet 784-5179

CRANK ASSY-CHUTE

$

$

Not available

13

Cub Cadet 735-0218

GROMMET
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0895

SCREW-HEX TAP 1/4 HI LO X .75

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 784-5178

BRACKET-CHUTE CRANK
(Superseded to 784-5178A)

$

$

Not available

16

Cub Cadet 749-0604

HANDLE-LOWER

$

$

Currently unavailable

17

Cub Cadet 751-0354

PRIMER
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 8

0

18

Cub Cadet 725-0954

KEY-STARTER-TEC
(Superseded to TC-35062)

$3.99

$

Usually ships in 3-12 days

0

19

Cub Cadet 726-0188

CLAMP-CABLE 7/8

$

$

Not available

20

Cub Cadet 784-5168

PANEL-DASH

$

$

Currently unavailable

22

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 723-0354

HOSE-PRIMER
(Superseded to TC-32180C)

$6.99

$

In Stock, Qty 6

0

28

Cub Cadet 726-0207

CLAMP-HOSE

$

$

Not available

29

Cub Cadet 751-0173

FUEL LINE-15IN
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

30

Cub Cadet 784-5177

BRACKET-ENG SUP

Variations

Cub Cadet 784-5177-0637

BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 710-0892

SCREW-HEX L-WASH HD
(Superseded to 910-0892)

$

$

Not available

32

Cub Cadet 749-0605

AXLE-WHEEL

$

$

Not available

33

Cub Cadet 784-5180

BRACKET ASSY-IDLER
(Superseded to 753-05156)

$

$

Not available

34

Cub Cadet 748-0192

SPACER-.635 ID X .890 OD X .80

$7.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 756-0313

PULLEY-IDLER

$26.99

$

In Stock, Qty 6

0

36

Cub Cadet 756-0416

PULLEY-HALF-V
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

37

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

39

Cub Cadet 710-0157

SCREW-HEX 5/16-24 X .75

$4.49

$

In Stock, Qty 18

0

40

Cub Cadet 710-0892

SCREW-HEX L-WASH HD
(Superseded to 910-0892)

$

$

Not available

41

Cub Cadet 784-5176

COVER-BELT
(Superseded to 790-00045C-0637)

Variations

Cub Cadet 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0650

USE 790-00045A COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0662

USE 790-00045A COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0674

USE 790-00045A COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0691

USE 790-00045C-0691 COVER-BEL - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5176-0665

USE 790-00045C-0665 COVER-BEL - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 712-0296

NUT-HEX LOCK 3/8-24
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

43

Cub Cadet 754-0285

BELT-V 1/2 X 34
(Superseded to 954-0285)

$

$

Not available

44

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 748-0234

SPACER-SHLD

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 715-0151

PIN-SPRING SPIR

$

$

Not available

48

Cub Cadet 753-0398

KIT-BRG CUP & PULLEY

$

$

Not available

49

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 784-5174

CUP-BEARING
(Superseded to 784-5174-0637)

Variations

Cub Cadet 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

51

Cub Cadet 753-0374

KIT-BRG & COLLAR

$

$

Not available

52

Cub Cadet 784-5150

HOUSING ASSY-BLOWER

$

$

Not available

53

Cub Cadet 710-0323

SCREW-TRUSS MACH 5/16-18 X .75

$4.99

$

In Stock, only 2 left!

0

54

Cub Cadet 732-0357

SPRING-EXTENSION
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

55

Cub Cadet 05783

GUARD ASSY-CHUTE FLANGE

$

$

Not available

56

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 14531

STRIP-RETAINING

$

$

Currently unavailable

58

Cub Cadet 731-0587

FLAP-RR

$

$

Not available

60

Cub Cadet 710-0892

SCREW-HEX L-WASH HD
(Superseded to 910-0892)

$

$

Not available

61

Cub Cadet 784-5171

AUGER HALF-21 IN

$

$

Currently unavailable

62

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 736-0173

WASHER-FL-.28 ID X .74 OD X .063

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 731-0700

SPIRAL-RUBBER

$

$

Not available

65

Cub Cadet 710-0896

SCREW-HEX B-TAP 1/4-.62

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 731-0496

PLUG

$

$

Not available

67

Cub Cadet 784-5171

AUGER HALF-21 IN

$

$

Currently unavailable

68

Cub Cadet 731-0700

SPIRAL-RUBBER

$

$

Not available

69

Cub Cadet 784-5172

AXLE ASSY-AUGER

$

$

Currently unavailable

70

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

71

Cub Cadet 784-5166

KIT-SHAVE PLATE
(Superseded to 753-0451)

$67.99

$

In Stock, only 1 left!

0

72

Cub Cadet 710-0167

BOLT-CARRIAGE 1/4-20 X .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

73

Cub Cadet 710-0875

SCREW-HEX WASH 1/4-20X.75

$3.99

$

In Stock, only 2 left!

0

74

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

75

Cub Cadet 784-5159

ANGLE-THROWER HSG

$

$

Currently unavailable

76

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, Qty 12

0

78

Cub Cadet 736-0234

WASHER-FL-.390 ID X 1.50 OD X .075

$6.49

$

Usually ships in 3-6 days

0

79

Cub Cadet 741-0403

BUSHING-HEX

$

$

Not available

80

Cub Cadet 726-0221

CAP-PUSH

$6.49

$

In Stock, only 2 left!

0

81

Cub Cadet 734-0831

WHEEL ASSY W/TIRE-6 X 1.5

$

$

Not available

82

Cub Cadet 726-0225

TIE-CABLE

$

$

Not available

83

Cub Cadet 751-0352

TANK-GAS
(Superseded to TC-32660A)

$

$

Not available

84

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

85

Cub Cadet 784-5160

CHUTE ASSY

$

$

Not available

86

Cub Cadet 710-0260

BOLT-CARRIAGE 5/16-18 X .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

87

Cub Cadet 728-0481

RIVET

$

$

Currently unavailable

88

Cub Cadet 721-0198

SEAL-CHUTE

$

$

Currently unavailable

89

Cub Cadet 784-5163

CHUTE ASSY-TOP

$

$

Not available

90

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

91

Cub Cadet 712-0158

NUT-HEX CENTER L-5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

92

Cub Cadet 784-5170

STOP-TOP CHUTE

$

$

Currently unavailable

93

Cub Cadet 09966

KNOB-HANDLE ASSY
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

94

Cub Cadet 710-0405

BOLT-CARRIAGE 5/16-18 X 1.75
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

95

Cub Cadet 749-0538

HANDLE-UPPER
(Superseded to 749-0538E-0637)

$

$

Not available

96

Cub Cadet 726-0135

NUT-SPEED

$6.99

$

In Stock, only 1 left!

0

98

Cub Cadet 731-0702

SHROUD

$

$

Not available

99

Cub Cadet 751-0353

CAP-GAS
(Superseded to TC-410240)

$9.49

$

Usually ships in 3-12 days

0

100

Cub Cadet 710-0276

BOLT-CARRIAGE 5/16-18 X 1.00

$3.99

$

In Stock, Qty 10

0

102

Cub Cadet 736-0108

WASHER-FL-.510 ID X .75 OD X .033

$6.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 710-0351

SCREW-TRUSS MACH

$4.49

$

Usually ships in 3-6 days

0

104

Cub Cadet 736-0116

WASHER-FL-.635 ID X .93 OD X .060
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

Cub Cadet 751-0355

KIT-STARTER 3 HP TEC

$

$

Currently unavailable
