150Z (SC 26520) (7800630) - Snapper 52" Zero-Turn Mower, 26hp Frame, Body & Seat Group Parts Diagram

52" Zero-Turn Mower, 26hp

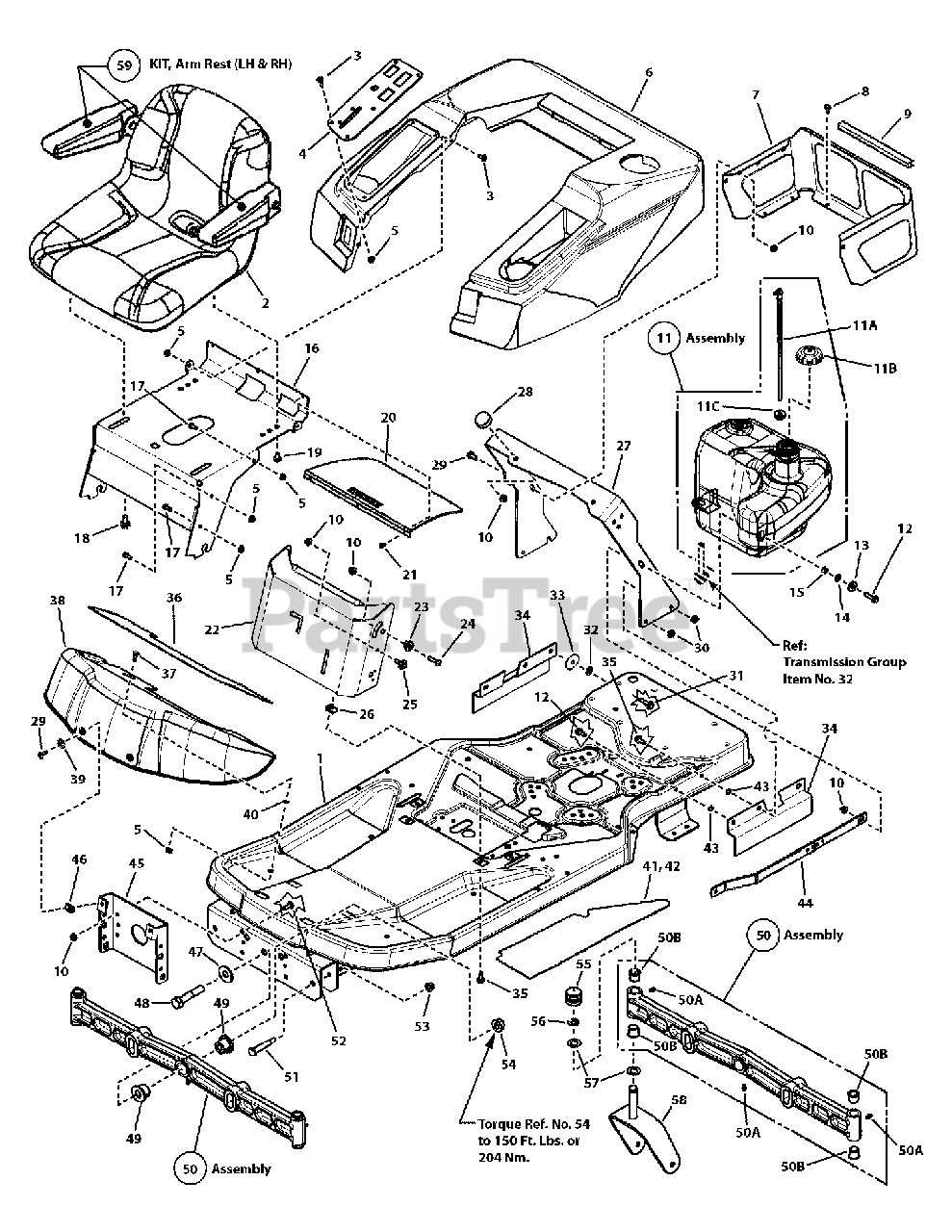

Frame, Body & Seat Group Parts Diagram

  • Title

1

Snapper 1733227A

WELDMENT, ZT Frame
(Superseded to 1733227ASM)

$866.99

$

Usually ships in 2-12 days

0

2

Snapper 1726018

ASSEMBLY, Seat w/Arm Rests, ZTR
(Superseded to 1726018SM)

$744.99

$

In Stock, only 1 left!

0

3

Snapper 1960715

SCREW, 1/4-20 x 3/4" Truss Head Torx, Black
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

4

Snapper 7301055BM

PLATE, Control, Choke-A-Matic
(Superseded to 7301055BMYP)

$17.99

$

Usually ships in 2-12 days

0

5

Snapper 1960694

NUT, 1/4-20 Hex Flange Nyloc, Black
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 1734145

SEAT DECK, Red Poly, ZTS - Red
(Superseded to 1734143SM)

$

$

Not available

7

Snapper 7301146A

BRACKET, Rear Shroud, ZTR, Black
(Superseded to 7301146AYP)

$68.99

$

Usually ships in 2-12 days

0

8

Snapper 1925003

SCREW, 1/4-20 x 1/2" Hex Washer Head Screw Black (Taptite)
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

9

Snapper 7070814

TRIM, 8"
(Superseded to 1735680SM)

$8.99

$

Usually ships in 2-12 days

0

10

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7102860

ASSEMBLY, Fuel Tank (incl. Items 11A, 11B & 11C)
(Superseded to 7102860YP)

$372.99

$

Usually ships in 2-12 days

0

11A

Snapper 7102690

ASSEMBLY, Elbow/Pick-up Tube
(Superseded to 7102690YP)

$14.99

$

Usually ships in 2-12 days

0

11B

Snapper 1734320

ASSEMBLY, Fuel Cap (Vented)
(Superseded to 1734320SM)

$31.99

$

Usually ships in 2-12 days

0

11C

Snapper 1726400

BUSHING, Fuel
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

12

Snapper 1921977

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5, Black
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

13

Snapper 1919381

WASHER, 5/16" Flat (.341 I.D. x 1.00 O.D. x .13 Thick) Black
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7090189

WASHER, 5/16" Internal/External Tooth Lock, BZ
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

15

Snapper 7024340

SPACER, .316 x .375 x .300/.310
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

16

Snapper 1733965A

SUPPORT, Seat
(Superseded to 1733965ASM)

$289.99

$

In Stock, only 1 left!

0

17

Snapper 1930594

SCREW, 1/4-20 x 3/4" Hex Whiz Lock Flange
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 1716654

BOLT, 5/16-18 Shoulder
(Superseded to 1716654SM)

$5.49

$

In Stock, only 3 left!

0

19

Snapper 1960738

SCREW, 5/16-18 x 3/4" Hex Flange Lock Dog Point
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

20

Snapper 7102141

SCREEN, Deck Top
(Superseded to 7102141SM)

$42.99

$

In Stock, only 1 left!

0

21

Snapper 1673320

RIVET, .188 x .617 Large Flange
(Superseded to 1673320SM)

$4.49

$

In Stock, Qty 8

0

22

Snapper 7300752A

PANEL, Front - Manual Brake & Deck Lift
(Superseded to 7300752AYP)

$72.99

$

Usually ships in 2-12 days

0

23

Snapper 1728086

PIVOT, Hood (Powdered Metal)
(Superseded to 1728086SM)

$5.99

$

In Stock, Qty 7

0

24

Snapper 1960223

BOLT, 5/16-18 x 1-1/4" Round Head Short Square Neck GR5, Black
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

25

Snapper 720107

SHOULDER BOLT, 5/16-18
(Superseded to 009X67MA)

$5.49

$

In Stock, only 3 left!

0

26

Snapper 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 2 left!

0

27

Snapper 1733393A

SUPPORT, Seat Deck
(Superseded to 1733393ASM)

$307.99

$

Usually ships in 2-12 days

0

28

Snapper 1726390

BUMPER, Rubber 1.50 DIA 0.5 Thick
(Superseded to 1726390SM)

$9.99

$

Usually ships in 2-12 days

0

29

Snapper 1921333

SCREW, 5/16-18 x 1" Hex Head Cap
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

30

Snapper 1960686

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 1920415

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, GR5, Black
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 1931942

PUSH NUT, .375 Dia. Thread .781 O.D., Black (Pal)
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 1960534

WASHER, .375 Flat (0.41 I.D. x 1.50 O.D. x .25 Thick) Black
(Superseded to 1960534SM)

$

$

Not available

34

Snapper 1734392BM

GUARD, Debris, ZTR - Black
(Superseded to 1734392ASM)

$20.99

$

Usually ships in 2-12 days

0

35

Snapper 7091591

BOLT, 5/16-18 x 1" Hex Flange Lock YZ
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

36

Snapper 1726306

PAD, Footrest Center Black Vinyl
(Superseded to 1726306SM)

$119.99

$

Usually ships in 2-12 days

0

37

Snapper 1931317

BOLT, 1/4-20 x 2" Round Head Short Square Neck, GR5, Black

$3.99

$

In Stock, only 3 left!

0

38

Snapper 1726025D

PANEL, Footrest, 18 Ga ZT 7000, Red
(Superseded to 1726025ZSM)

$159.99

$

Usually ships in 2-12 days

0

39

Snapper 2820426

WASHER, 5/16" External Tooth Lock Washer, Yellow
(Superseded to 2820426SM)

$4.49

$

In Stock, only 1 left!

0

40

Snapper 1960518

RETAINER, 1/4" Bolt
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

41

Snapper 1728986

PAD, Footrest RH Black Vinyl w/Adhesive
(Superseded to 1728986SM)

$10.99

$

Usually ships in 2-12 days

0

42

Snapper 1728987

PAD, Footrest LH Black Vinyl w/Adhesive
(Superseded to 1728987SM)

$10.99

$

In Stock, only 1 left!

0

43

Snapper 1933988

PUSH NUT, 5/16" Dia. Thread .625 O.D. Black (Pal)
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

44

Snapper 1734323BM

STRAP, Fuel Tank Brace
(Superseded to 1734323ASM)

$28.99

$

Usually ships in 2-12 days

0

45

Snapper 1737339A

BRACKET, Footrest Support, Black
(Superseded to 1737339AYP)

$38.99

$

Usually ships in 2-12 days

0

46

Snapper 1960368

SPEED NUT, 1/4-20 Lug Type .025/.150, Black
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

47

Snapper 1960035

WASHER, 0.64 I.D. x 1.75 O.D. x .11 Thick, Black
(Superseded to 1960035SM)

$4.49

$

In Stock, only 2 left!

0

48

Snapper 2860744

SCREW, 5/8-11 x 3-1/4" Hex Head Cap, GR5, Yellow
(Superseded to 2860744SM)

$8.49

$

Usually ships in 2-12 days

0

49

Snapper 1730186

BUSHING, Axle Pivot PM, Yellow
(Superseded to 1730186SM)

$6.99

$

In Stock, Qty 12

0

50

Snapper 1733426

ASSEMBLY, AXLE, Front Iron Casting Machined ZT (Incl. Items 50A & 50B)
(Superseded to 1733426SM)

$243.99

$

Usually ships in 2-12 days

0

50A

Snapper 1704314

LUBE FITTING, .250 Drive Type
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

50B

Snapper 2176440

BUSHING
(Superseded to 2176440SM)

$4.99

$

In Stock, Qty 20+

0

51

Snapper 1733571

SHOULDER BOLT, 3/8-16 x 3" Long .50 Sh GR5, Black
(Superseded to 703427)

$5.99

$

Usually ships in 2-12 days

0

52

Snapper 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck Carriage, GR5
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

53

Snapper 1960687

NUT, 3/8-16 Hex Flange Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

54

Snapper 2860646

NUT, Hex Flange 5/8-11 Two Way Lock, Yellow
(Superseded to 2860646SM)

$10.99

$

In Stock, Qty 6

0

55

Snapper 1734135

CAP, Hub 1.481 I.D. x .62 Long Red Poly
(Superseded to 1734135SM)

$5.99

$

In Stock, Qty 20+

0

56

Snapper 1611710

KLIPRING, External for .750 Dia. Shaft
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 20+

0

57

Snapper 1960160

WASHER, .75 ID x 1.60 OD x .05 Thick Flat (Black)
(Superseded to 1960160SM)

$4.99

$

In Stock, Qty 9

0

58

Snapper 1733448BM

WELDMENT, Caster Yoke & Spindle - Black
(Superseded to 1733448BMYP)

$152.99

$

In Stock, only 3 left!

0

59

Snapper 1687021

KIT, Arm Rest L.H. & R.H.
(Superseded to 1687021SM)

Note: (Arm Rest components not available separately)

$240.99

$

Usually ships in 2-12 days

0
