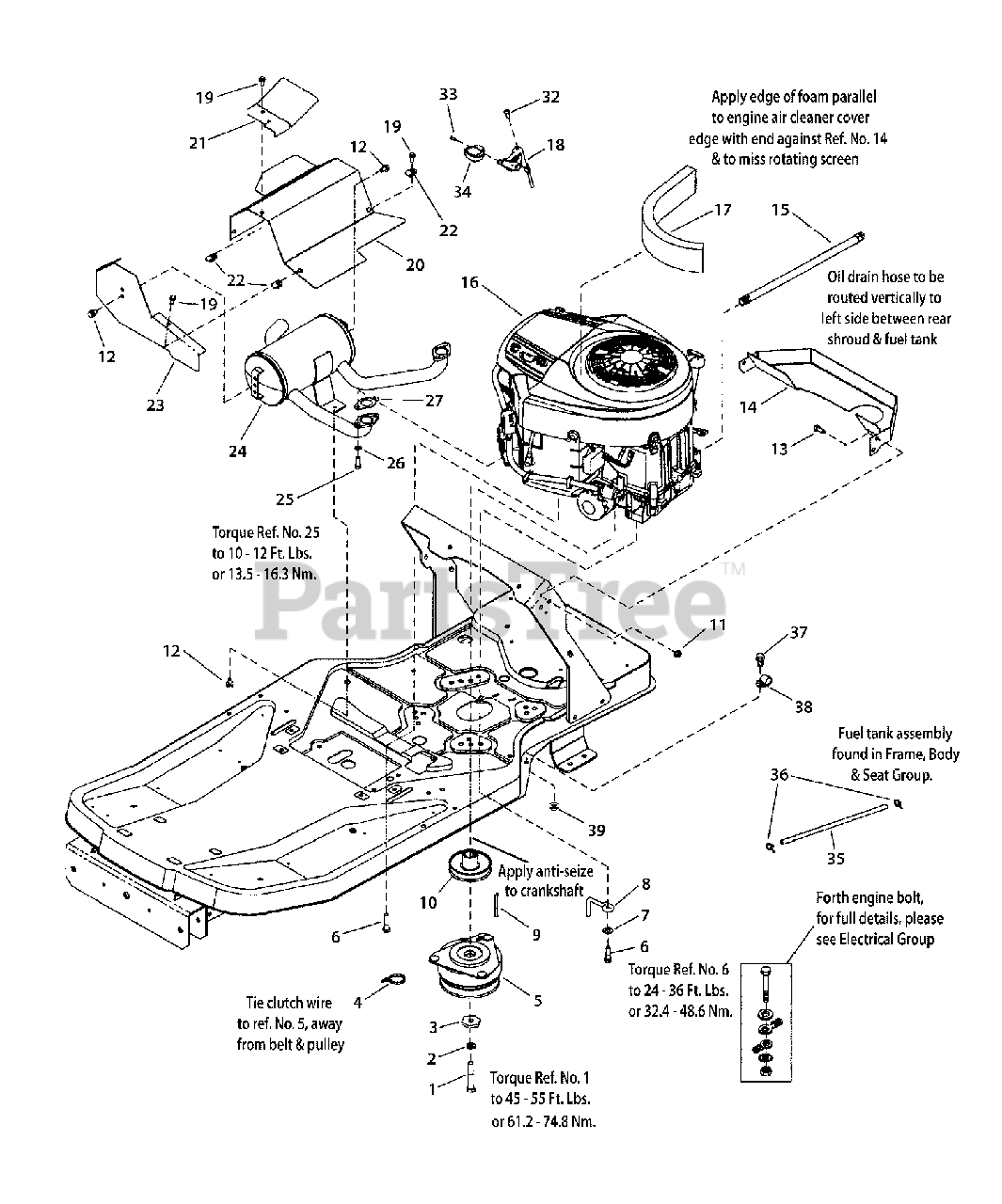

150Z (SC 26520) (7800630) - Snapper 52" Zero-Turn Mower, 26hp Engine Group, 26 HP B&S, PRO Parts Diagram

52" Zero-Turn Mower, 26hp

Engine Group, 26 HP B&S, PRO Parts Diagram

  • Title

1

Snapper 7027266

SCREW, 7/16-20 x 3" Hex Head Cap, GR5 (w/Nyloc Patch)
(Superseded to 7027266SM)

$7.49

$

Usually ships in 2-12 days

0

2

Snapper 1918199

LOCKWASHER, Spring, .438
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1708264

WASHER, Hex, .453 I.D. x 1-1/2"
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 5

0

4

Snapper 2832747

TIE, Self Locking 3-5/8" Long
(Superseded to 2832747SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 1717664

CLUTCH, Ogura JD-11
(Superseded to 1757359)

$290.99

$

In Stock, only 1 left!

0

6

Snapper 2828635

SCREW, 3/8-16 x 1-1/4" Hex Washer Head Taptite
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 1924940

WASHER, 3/8", (.41 I.D. x .87 O.D. x .08 Thick)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7101717

RETAINER, Clutch
(Superseded to 7101717SM)

$

$

Not available

9

Snapper 2154096

KEY, Square, 1/4 x 1/4 x 29/32 Hardened
(Superseded to 2154096SM)

$6.99

$

In Stock, only 2 left!

0

10

Snapper 7101716

PULLEY, Engine - ZT, 3.75" OD
(Superseded to 7101716SM)

$50.99

$

In Stock, only 2 left!

0

11

Snapper 1931277

NUT, 5/16-18 Hex Whiz Lock Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Snapper 1924856

SCREW, 5/16-18 x 1/2" Hex Washer Head Taptite
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

13

Snapper 1921332

SCREW, 5/16-18 x 3/4" Hex Head Cap, Black
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

14

Snapper 1733414A

AIR DUCT, Inlet
(Superseded to 1733414ASM)

$70.99

$

Usually ships in 2-12 days

0

15

Snapper 1726498

HOSE, Oil Drain, 16-1/2" Long
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

16

Snapper 44P777-0167-B1

* ENGINE, 26 HP B&S, PRO (early models)

$

$

Not available

16

Snapper 44P777-2167-G1

* ENGINE, 26 HP B&S, PRO

$

$

Not available

17

Snapper 1734169

SEAL, Foam Air Inlet
(Superseded to 1734169SM)

$32.99

$

In Stock, only 1 left!

0

18

Snapper 7103123

ASSEMBLY, Choke-A-Matic Control, B&S 26 HP
(Superseded to 7103123YP)

$43.99

$

Usually ships in 2-12 days

0

19

Snapper 1960295

SCREW, 1/4-20 x 5/8" Hex Whiz Lock Flange
(Superseded to 1960295SM)

$4.49

$

In Stock, only 1 left!

0

20

Snapper 1734246A

HEAT SHIELD, Muffler Top
(Superseded to 1734246ASM)

$56.99

$

Usually ships in 2-12 days

0

21

Snapper 1728017

HEAT SHIELD, Throttle
(Superseded to 1728017SM)

$7.99

$

Usually ships in 2-12 days

0

22

Snapper 1960368

NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1727939A

HEAT SHIELD, Muffler Side
(Superseded to 1727939ASM)

$29.99

$

Usually ships in 2-12 days

0

24

Snapper 1734061

MUFFLER, 24 HP V-Twin ELS
(Superseded to 1734061SM)

$384.99

$

In Stock, only 1 left!

0

25

Snapper 1936228

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR8
(Superseded to 1936228SM)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 1917356

LOCKWASHER, Spring 5/16", Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Snapper 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7090999

SCREW, 1/4-20 x 5/8" Pan Head Taptite Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper 7091195

SCREW, #10-16 x 3/4" Pan Head Taptite Combo
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7100529

KNOB, Throttle, Red
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

35

Snapper 1734995

** HOSE, Fuel, Low Perm, 1/4" I.D. x 19-1/2" Long
(Superseded to 1734995SM)

$11.99

$

Usually ships in 2-12 days

0

36

Snapper 7012222

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

37

Snapper 1930591

SCREW, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

38

Snapper 7900020

CLIP, Harness, 5/8"
(Superseded to 7900020SM)

$4.49

$

Usually ships in 2-12 days

0

39

Snapper 1932377

NUT, 5/16-18 Hex Whiz Lock Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
