150Z (SC 26520) (7800630) - Snapper 52" Zero-Turn Mower, 26hp Controls Group, ZT Parts Diagram

52" Zero-Turn Mower, 26hp

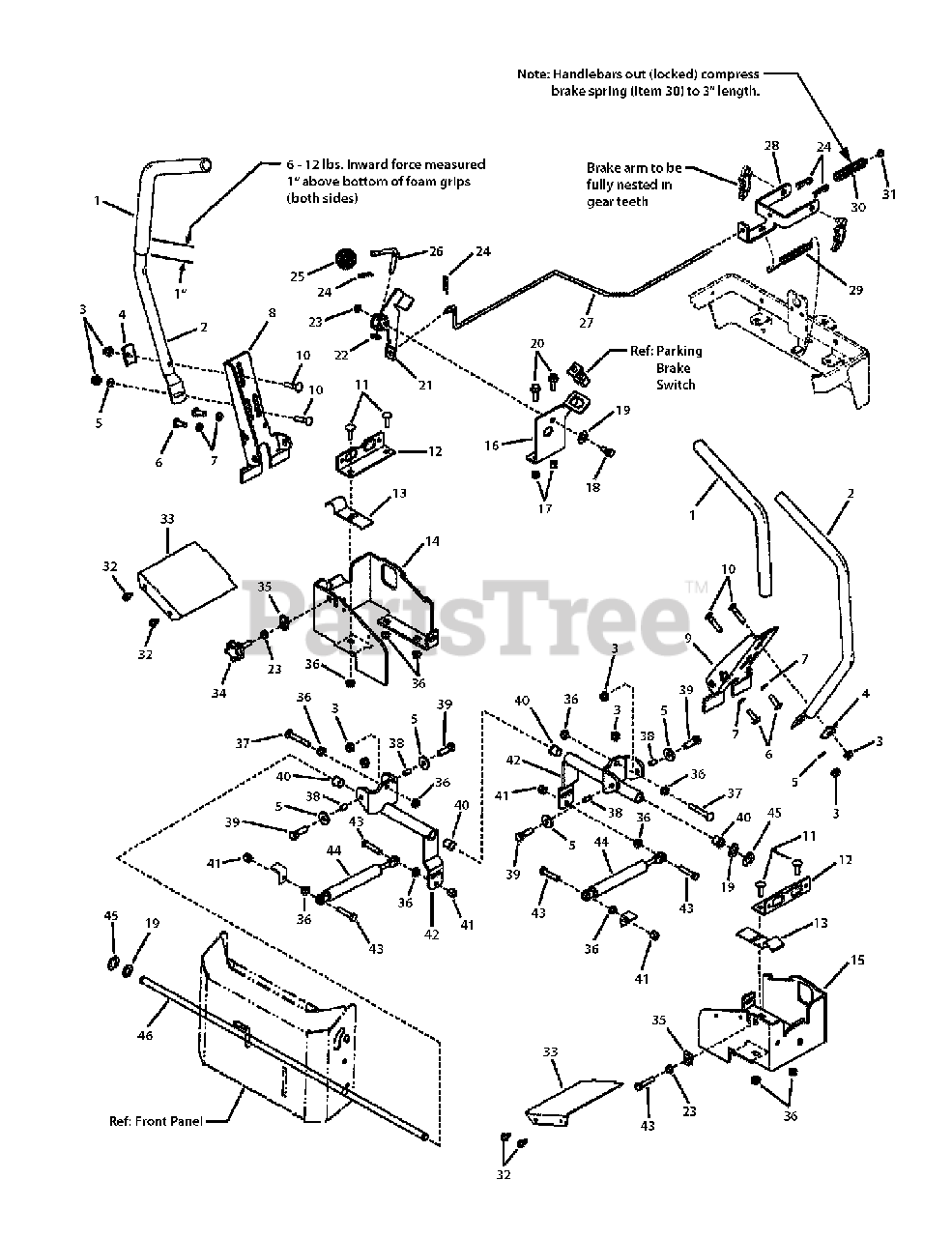

Controls Group, ZT Parts Diagram

  • Title

1

Snapper 1726410

GRIP, Foam Handle Bar
(Superseded to 1726410SM)

$11.99

$

In Stock, only 1 left!

0

2

Snapper 1727796A

TUBE, Handle
(Superseded to 1727796ASM)

$70.99

$

Usually ships in 2-12 days

0

3

Snapper 1960686

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 1720452BM

CLAMP, Tube, Saddle
(Superseded to 1720452SM)

$12.99

$

In Stock, only 1 left!

0

5

Snapper 1919381

WASHER, 5/16" Flat (.341 I.D. x 1.00 O.D. x .13 Thick) Black
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 1960086

SCREW, 5/16-18 x 7/8" Truss Head Torx, Black
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

7

Snapper 1917356

LOCKWASHER, Spring 5/16", Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 1727926A

BRACKET, Tube Mount LH
(Superseded to 1727926ASM)

$49.99

$

Usually ships in 2-12 days

0

9

Snapper 1727927A

BRACKET, Tube Mount RH
(Superseded to 1727927BMYP)

$60.99

$

Usually ships in 2-12 days

0

10

Snapper 1931338

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck, GR5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

11

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

12

Snapper 1727663BM

BRACKET, "L" Switch
(Superseded to 1727663ASM)

$9.99

$

Usually ships in 2-12 days

0

13

Snapper 1727919

CLIP, Brake
(Superseded to 1727919SM)

$7.49

$

In Stock, only 2 left!

0

14

Snapper 1728010A

BRACKET, RH Mounting Handle Pivot
(Superseded to 1728010ASM)

$86.99

$

Usually ships in 2-12 days

0

15

Snapper 1728009A

BRACKET, LH Mounting Handle Pivot, Black
(Superseded to 1728009ASM)

$64.99

$

Usually ships in 2-12 days

0

16

Snapper 7300992BM

BRACKET, Brake Pivot- ZT
(Superseded to 7300992BMYP)

$11.99

$

Usually ships in 2-12 days

0

17

Snapper 7091298

NUT, 5/16-18-3B Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7015761

SHOULDER BOLT, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

19

Snapper 80003590

WASHER, 1/2" Flat
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091591

BOLT, 5/16-18 x 1" Hex Flange Lock YZ
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 7300993BM

ARM, Brake Pivot- ZT
(Superseded to 7300993BMYP)

$9.49

$

Usually ships in 2-12 days

0

22

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

23

Snapper 1920161

NUT, 5/16-18 Hex Jam, Black
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

24

Snapper 1722460

HAIR PIN
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

25

Snapper 7072403

KNOB, w/5/16-18 NILN (Brake/Clutch)
(Superseded to 7072403YP)

$8.49

$

In Stock, only 1 left!

0

26

Snapper 7102567

ROD, Park Brake- ZT (5/16-18 thread)
(Superseded to 7102567YP)

$9.99

$

Usually ships in 2-12 days

0

27

Snapper 7102551

ROD, Manual Parking Brake (1/4-20 threads)
(Superseded to 7102551YP)

$26.99

$

In Stock, only 1 left!

0

28

Snapper 1727814BM

BRACKET, Dual Brake
(Superseded to 1727814BMYP)

$16.99

$

Usually ships in 2-12 days

0

29

Snapper 1709314

SPRING, Extension
(Superseded to 1709314SM)

$8.99

$

Usually ships in 2-12 days

0

30

Snapper 1729277

SPRING, Compression
(Superseded to 1729277SM)

$6.99

$

In Stock, only 1 left!

0

31

Snapper 1960694

NUT, 1/4-20 Hex Flange Nyloc, Black
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 1925003

SCREW, 1/4-20 x 1/2" Hex Washer Head Screw Black (Taptite)
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

33

Snapper 1727933A

COVER, Lower Handle
(Superseded to 1727933ASM)

$16.99

$

Usually ships in 2-12 days

0

34

Snapper 1726839

KNOB, 5/16-18 x 1-1/4" Extension Thread
(Superseded to 1726839SM)

$7.49

$

In Stock, only 2 left!

0

35

Snapper 1960717

NUT, 5/16-18 Speed (Lug Type .050/.200, Black)
(Superseded to 1960717SM)

$6.49

$

Usually ships in 2-12 days

0

36

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

37

Snapper 1960723

BOLT, 5/16-18 x 2-1/4" Round Head Square Neck, GR5, Black
(Superseded to 1960723SM)

$3.99

$

In Stock, Qty 18

0

38

Snapper 1666697

SPACER, Powdered Metal
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

39

Snapper 1921977

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5, Black
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

40

Snapper 1715025

BUSHING
(Superseded to 1715025SM)

$4.49

$

Usually ships in 2-12 days

0

41

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

42

Snapper 1727603BM

WELDMENT, Pivot Control
(Superseded to 1727603BMYP)

$62.99

$

Usually ships in 2-12 days

0

43

Snapper 1921221

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR5, Black
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

44

Snapper 1727918

SHOCK ABSORBER
(Superseded to 1727918SM)

$

$

Not available

45

Snapper 1703805

RING, Klipring Extension (for .500 Dia. Shaft)
(Superseded to 1703805SM)

$3.49

$

In Stock, Qty 12

0

46

Snapper 1725927

SHAFT, Cross
(Superseded to 1725927SM)

$33.99

$

Usually ships in 2-12 days

0
