150Z (SC 26520) (7800630) - Snapper 52" Zero-Turn Mower, 26hp 52" Mower Deck - Housing & Arbor Group Parts Diagram

52" Zero-Turn Mower, 26hp

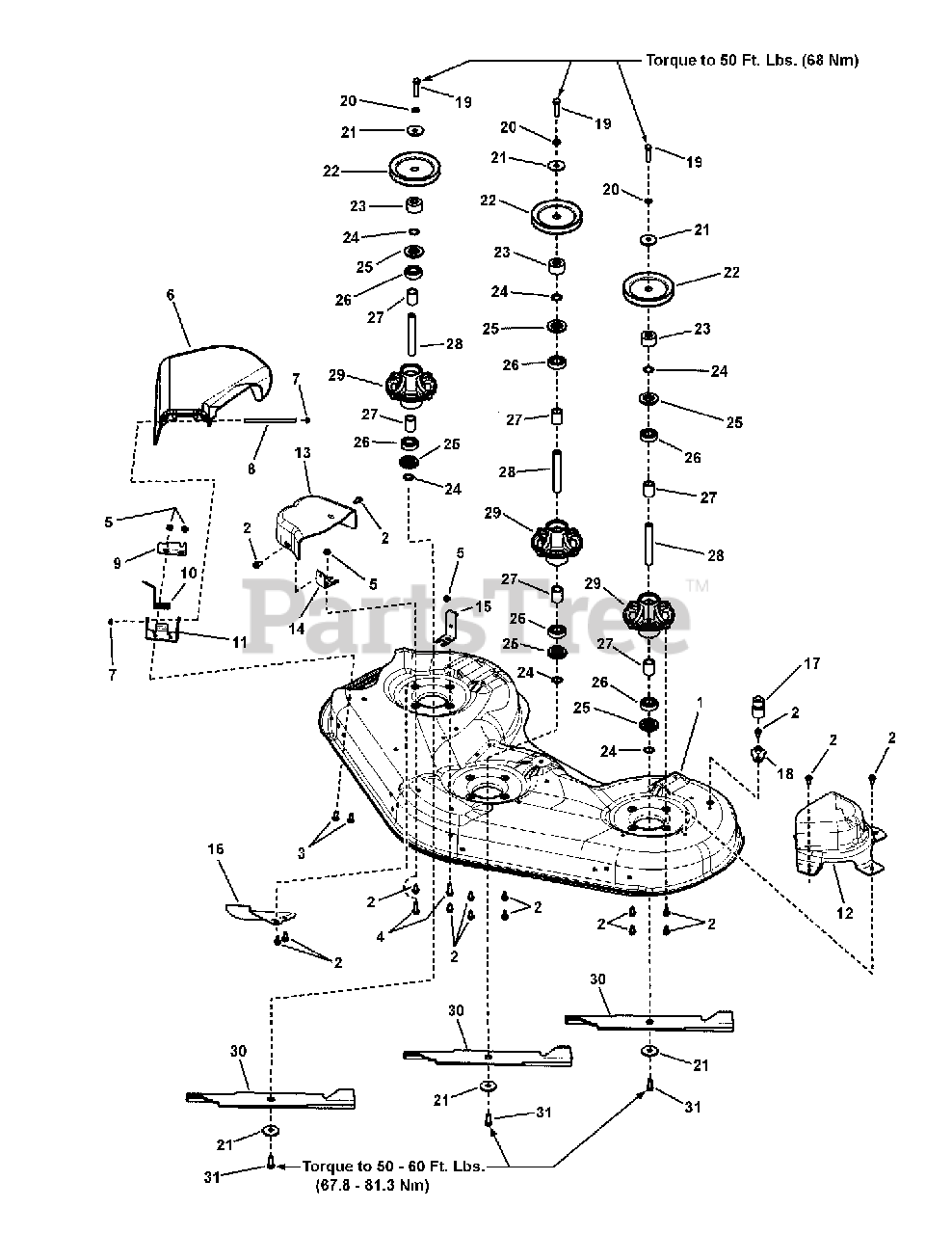

52" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

1

Snapper 1735735D

HOUSING, 52" Mower, Snapper Red
(Superseded to 1735735DYP)

$1122.99

$

Usually ships in 2-12 days

0

2

Snapper 1664847

SCREW, 5/16-18 x 3/4" Hex Washer Taptite
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck Carriage, GR5
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

4

Snapper 7091151

SCREW, 5/16-18 x 1-1/4" Hex Washer Self-Tap
(Superseded to 703167)

$3.99

$

In Stock, Qty 5

0

5

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Snapper 1735447

DEFLECTOR, Discharge
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

7

Snapper 7012542

PUSH NUT, 5/16"
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

8

Snapper 1736366

ROD, Deflector
(Superseded to 1736366YP)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 1737359BM

PLATE, Deflector Closeoff
(Superseded to 1737359BMYP)

$8.49

$

In Stock, only 3 left!

0

10

Snapper 1736364

SPRING, Torsion Deflector
(Superseded to 1736364YP)

$8.49

$

Usually ships in 2-12 days

0

11

Snapper 1737418BM

HINGE, Deflector, 52"
(Superseded to 1737418BMYP)

$28.99

$

In Stock, only 1 left!

0

12

Snapper 1736505

BELT COVER, 52" Mower, LH
(Superseded to 1736505YP)

$42.99

$

Usually ships in 2-12 days

0

13

Snapper 1735752

BELT COVER, 52" Mower, RH
(Superseded to 1735752YP)

$29.99

$

Usually ships in 2-12 days

0

14

Snapper 1736518BM

BRACKET, Belt Cover, Front
(Superseded to 1736518BMYP)

$14.99

$

Usually ships in 2-12 days

0

15

Snapper 1736519BM

BRACKET, Belt Cover, Rear
(Superseded to 1736519BMYP)

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 1737279BM

BAFFLE, Pinchoff
(Superseded to 1737279BMYP)

$16.99

$

In Stock, only 1 left!

0

17

Snapper 1736898

CONNECTOR, Washout Port
(Superseded to 1756246YP)

$15.99

$

In Stock, only 1 left!

0

18

Snapper 1735716

ADAPTER, Washout Port, 52" Deck
(Superseded to 1756247YP)

$6.49

$

Usually ships in 2-12 days

0

19

Snapper 1923027

SCREW, 7/16-14 x 1-3/4" Hex Head Cap, GR5
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

20

Snapper 1918199

LOCKWASHER, Spring, .438
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

22

Snapper 1735733

PULLEY, 5.5 OD x 11 Ga. Split
(Superseded to 1735733YP)

$20.99

$

In Stock, Qty 5

0

23

Snapper 1736445

SPACER, Pulley, Powdered Metal
(Superseded to 1736445YP)

$13.99

$

In Stock, only 1 left!

0

24

Snapper 1960766

RING, Self-Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 1735323

SHIELD, Arbor, 2"
(Superseded to 1735323YP)

$6.99

$

In Stock, Qty 8

0

26

Snapper 1735399

BALL BEARING, 20mm
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

27

Snapper 1735328

SPACER, Bearing, Powder Metal
(Superseded to 1735328YP)

$6.49

$

In Stock, only 3 left!

0

28

Snapper 1735326

SHAFT, Spindle, 20mm
(Superseded to 1735326YP)

$27.99

$

In Stock, only 4 left!

0

29

Snapper 1735573

HOUSING, Arbor Bottom w/Lube Fitting
(Superseded to 1735573YP)

Note: (includes 1704314 Lube Fitting)

$43.99

$

In Stock, Qty 9

0

30

Snapper 1737252A

BLADE, Mower
(Superseded to 1737252BZYP)

$18.99

$

In Stock, Qty 20+

0

31

Snapper 1920676

SCREW, 7/16-14 x 1" Hex Head Cap, GR5
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 12

0
