150Z (SC 26520) (7800630) - Snapper 52" Zero-Turn Mower, 26hp 52" Mower Deck - Clutch & Support Group Parts Diagram

52" Zero-Turn Mower, 26hp

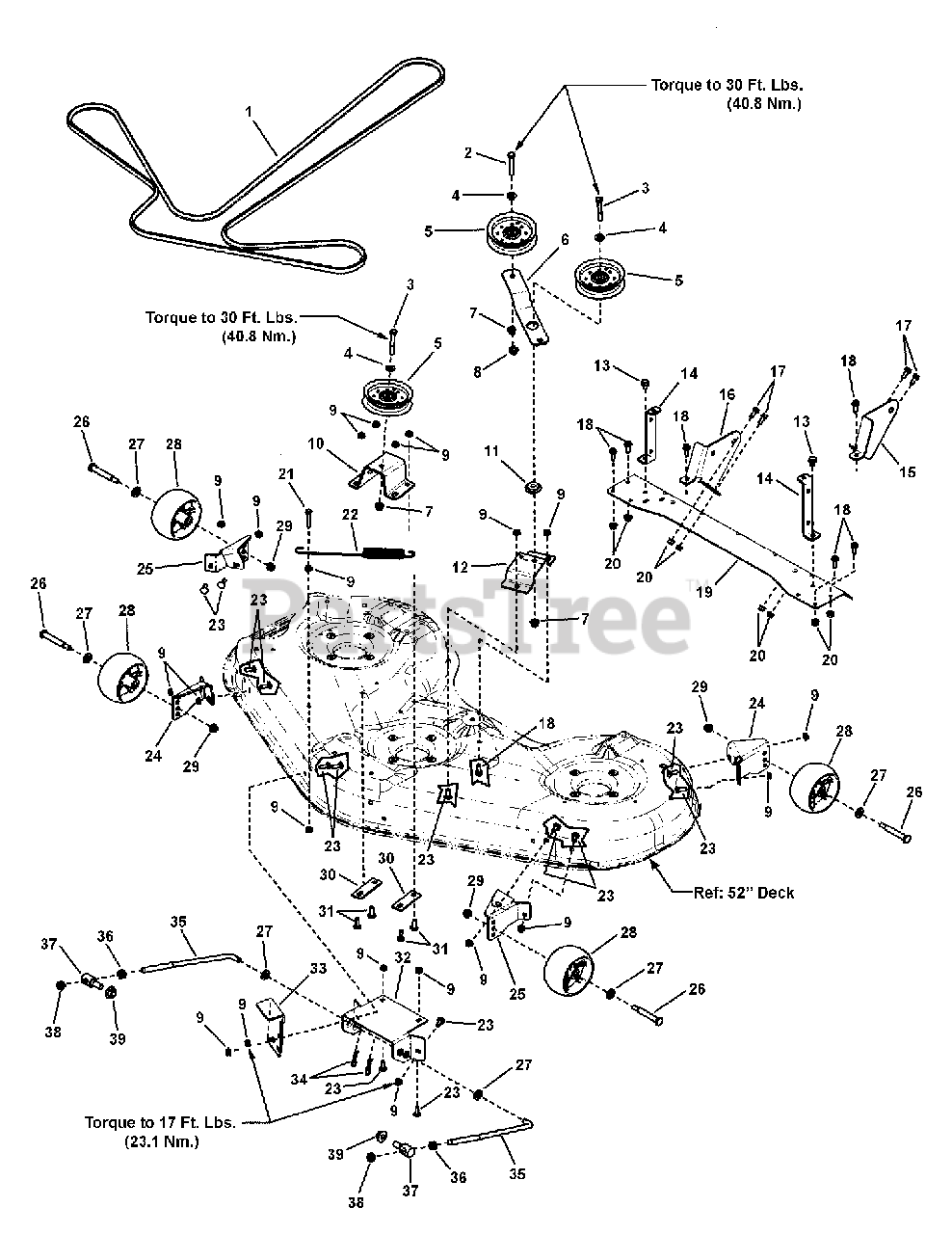

52" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

1

Snapper 1736516

* V-BELT, (HA Sect., 132" Effective Length)
(Superseded to 1736516YP)

$77.99

$

In Stock, Qty 20+

0

2

Snapper 1933685

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR 5
(Superseded to 1933685SM)

$5.49

$

In Stock, only 1 left!

0

3

Snapper 7091501

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR 5
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

4

Snapper 1924940

WASHER, .375 Flat (.41 I.D. x .87 O.D.)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 1736540

PULLEY, Idler
(Superseded to 1736540YP)

$35.99

$

In Stock, only 2 left!

0

6

Snapper 1736439BM

ARM, Idler
(Superseded to 1736439BMYP)

$80.99

$

In Stock, only 1 left!

0

7

Snapper 1931211

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

8

Snapper 1960339

NUT, 3/8-16 Hex Large Flange
(Superseded to 1922694SM)

$6.99

$

In Stock, Qty 20+

0

9

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Snapper 1736438BM

BRACKET, Fixed Idler, Rear
(Superseded to 1736438BMYP)

$69.99

$

Usually ships in 2-12 days

0

11

Snapper 1714255

SPACER, .406 I.D. x 1.50 O.D. x .350 Thick Powdered Metal
(Superseded to 1714255SM)

$6.49

$

In Stock, Qty 17

0

12

Snapper 1736437BM

BRACKET, Idler Mount, Front
(Superseded to 1736437BMYP)

$21.99

$

Usually ships in 2-12 days

0

13

Snapper 726003

SCREW, 3/8-16 x 1/2" Washer Head Self-Tap
(Superseded to 333449MA)

$262.99

$

In Stock, only 1 left!

0

14

Snapper 1737219BM

UPSTOP, Rear, 52" Mower
(Superseded to 1737219BMYP)

$31.99

$

In Stock, only 3 left!

0

15

Snapper 1736397BM

BRACKET, Rear Mower Pickup, LH
(Superseded to 1736397BMYP)

$19.99

$

Usually ships in 2-12 days

0

16

Snapper 1736398BM

BRACKET, Rear Mower Pickup, RH
(Superseded to 1736398BMYP)

$19.99

$

Usually ships in 2-12 days

0

17

Snapper 1930591

SCREW, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

18

Snapper 1960373

SCREW, 5/16-18 x 1" Hex Washer Head Self-Tap
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 1736070BM

SUPPORT, Rear Cross
(Superseded to 1736070BMYP)

$82.99

$

Usually ships in 2-12 days

0

20

Snapper 1960686

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 1922127

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

22

Snapper 1737415

SPRING, Extension
(Superseded to 1737415YP)

$12.99

$

In Stock, only 1 left!

0

23

Snapper 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck Carriage, GR5
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

24

Snapper 1736075BM

BRACKET, Gauge Wheel, LH
(Superseded to 1736075BMYP)

$14.99

$

In Stock, Qty 14

0

25

Snapper 1736074BM

BRACKET, Gauge Wheel, RH
(Superseded to 1736074BMYP)

$15.99

$

In Stock, only 1 left!

0

26

Snapper 1736539

BOLT, Shoulder (Gage Wheel) 3/8-16 x 3.41 x 3/4"
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

27

Snapper 1960170

WASHER, 1/2" Flat (0.51 I.D. x 1.00 O.D. x .10 Thick)
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

28

Snapper 1736896

WHEEL, Gage (5" Dia.) Black Polypropylene
(Superseded to 1736896YP)

$16.99

$

In Stock, only 4 left!

0

29

Snapper 1960687

NUT, 3/8-16 Hex Flange Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 1737229BM

PLATE, Backing
(Superseded to 1737229BMYP)

$8.49

$

Usually ships in 2-12 days

0

31

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

32

Snapper 1736071BM

HITCH, Front, 52" Mower
(Superseded to 1736071BMYP)

$29.99

$

Usually ships in 2-12 days

0

33

Snapper 1737439BM

UPSTOP, 52" Deck
(Superseded to 1737439BMYP)

$20.99

$

Usually ships in 2-12 days

0

34

Snapper 1960074

CLIP, Hair Pin .093 Dia.
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

35

Snapper 1736081

ROD, Front Rail, 52" Mower (1/2-13 Thread)
(Superseded to 1736081YP)

$12.99

$

Usually ships in 2-12 days

0

36

Snapper 1913744

NUT, 1/2-13 Hex Jam
(Superseded to 1913744SM)

$4.99

$

In Stock, Qty 19

0

37

Snapper 1737417

TRUNNION, 1/2-13 Thread
(Superseded to 1737417YP)

$21.99

$

In Stock, only 2 left!

0

38

Snapper 1960379

NUT, 1/2-13 Hex Jam
(Superseded to 1960379SM)

$4.99

$

In Stock, Qty 18

0

39

Snapper 1930644

NUT, HEX FLANGE 1/2-13 Hex Flange Two Way Lock
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0
