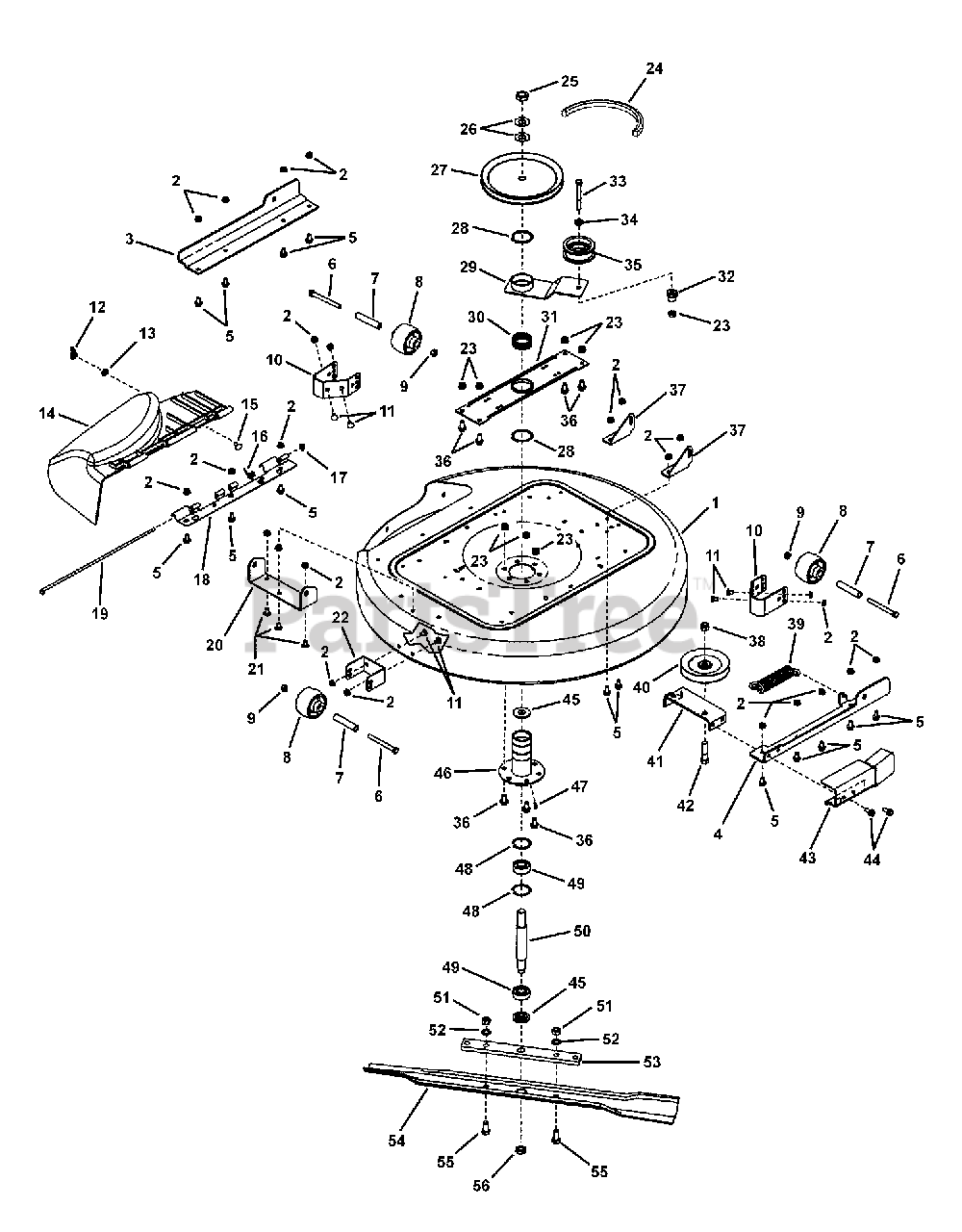

150Z (SC 2650) (7800387) - Snapper 50" Zero-Turn Mower, 26hp 33" Mower Deck Group Parts Diagram

50" Zero-Turn Mower, 26hp

33" Mower Deck Group Parts Diagram

  • Title

1

Snapper 1735349

DECK, 33" Mower
(Superseded to 1735349DYP)

$817.99

$

Usually ships in 2-12 days

0

2

Snapper 7091070

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7300962BM

RAIL, 33" Side - RH
(Superseded to 7300962BMYP)

$46.99

$

Usually ships in 2-12 days

0

4

Snapper 7300963BM

RAIL, 33" Side - LH
(Superseded to 7300963BMYP)

$55.99

$

Usually ships in 2-12 days

0

5

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

6

Snapper 7091532

SCREW, 3/8-24 x 3/4" Hex Head Cap, GR5
(Superseded to 703876)

$6.99

$

In Stock, Qty 10

0

7

Snapper 7015272

SPACER, 3" Long
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

8

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 7090289

NUT, 3/8-24 Hex Center Lock GR5 or B
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

10

Snapper 7033571BM

BRACKET, Anti-Scalp Side Adjust
(Superseded to 7033571BMYP)

$14.99

$

In Stock, only 4 left!

0

11

Snapper 7090731

BOLT, 5/16-18 x 1/2" Round Head Short Square Neck, GR 5
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

12

Snapper 7090492

WING NUT, 5/16-18, Type C, Style 1
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7026233

DEFLECTOR, Discharge, 28"/33"
(Superseded to 7026233YP)

$74.99

$

In Stock, Qty 20+

0

15

Snapper 7091508

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

16

Snapper 7016341

SPRING, Hinge
(Superseded to 7016341YP)

$4.49

$

In Stock, Qty 14

0

17

Snapper 7026483

PUSH NUT, (for 1/4" Rod)
(Superseded to 7026483YP)

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7300886A

HINGE, Plastic Side Chute
(Superseded to 7300886BMYP)

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 7026234

ROD, Chute
(Superseded to 7105174YP)

$8.99

$

In Stock, Qty 11

0

20

Snapper 1734766BM

BRACKET, Mower Front
(Superseded to 1734766BMYP)

$23.99

$

Usually ships in 2-12 days

0

21

Snapper 7090799

BOLT, 5/16-18 x 5/8" Round Head Short Square Neck, GR5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7033570BM

BRACKET, Anti-Scalp Front Adjust
(Superseded to 7033570BMYP)

$19.99

$

In Stock, only 2 left!

0

23

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

24

Snapper 7102246

* BELT, 33" Deck Drive (HB Section, 74.97 Effective Length)
(Superseded to 7102246YP)

$53.99

$

In Stock, Qty 14

0

25

Snapper 1922015

NUT, 3/4-16 Hex Jam
(Superseded to 1922015SM)

$3.49

$

In Stock, Qty 10

0

26

Snapper 7032027

WASHER, .77 x 1.5 x .06 Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

27

Snapper 7102173

PULLEY, 33" ZT Spindle
(Superseded to 7102173YP)

$

$

Not available

28

Snapper 7010740

RETAINING RING, 2" External
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

29

Snapper 1735020BM

WELDMENT, Idler Arm
(Superseded to 1735020BMYP)

$75.99

$

Usually ships in 2-12 days

0

30

Snapper 7012670

TOLERANCE RING, 2.0
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

31

Snapper 7038018BM

BRACE, Spindle
(Superseded to 7038018BMYP)

$18.99

$

Usually ships in 2-12 days

0

32

Snapper 1706644

SPACER, .380/.377 I.D. x .750 O.D. x .970 Long
(Superseded to 1706644SM)

$8.49

$

In Stock, only 1 left!

0

33

Snapper 1921973

SCREW, 3/8-16 x 3-1/4" Hex Head Cap, GR5
(Superseded to 1921973SM)

$5.49

$

Usually ships in 2-12 days

0

34

Snapper 1924940

WASHER, .375 Flat (.41 I.D. x .87 O.D.)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

35

Snapper 1721133

PULLEY, Idler, 2.75" x 3/8" ID
(Superseded to 5106480FS)

$32.99

$

In Stock, Qty 5

0

36

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock, GR5
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

37

Snapper 1734765BM

BRACKET, Deck Pick-Up
(Superseded to 1734765BMYP)

$12.99

$

Usually ships in 2-12 days

0

38

Snapper 7091922

NUT, 1/2-13 Hex Nyloc Light
(Superseded to 703453)

$5.99

$

Usually ships in 2-12 days

0

39

Snapper 1715435

SPRING
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

40

Snapper 3021097

PULLEY, Steel Idler
(Superseded to 3021097YP)

$68.99

$

Usually ships in 2-12 days

0

41

Snapper 7300961BM

BRACKET, Pulley Mounting 33" ZT

$

$

Currently unavailable

42

Snapper 7900065

SCREW,1/2-13 x 2" Hex Head Cap, GR5
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

43

Snapper 7300999BM

GUARD, Idler Pulley, 33" ZT
(Superseded to 7300999BMYP)

$53.99

$

Usually ships in 2-12 days

0

44

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

46

Snapper 7047962BM

WELDMENT, Spindle Housing
(Superseded to 7052294YP)

$179.99

$

In Stock, only 2 left!

0

47

Snapper 7010817

LUBE FITTING, 3/16" Press-In
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

48

Snapper 7012491

RING, 1.85" Internal Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

49

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

50

Snapper 7024687BM

SHAFT, Spindle, 7.54" Long
(Superseded to 7024687YP)

$35.99

$

Usually ships in 2-12 days

0

51

Snapper 7091939

NUT, 1/2-20 Hex
(Superseded to 7091939YP)

$3.49

$

In Stock, Qty 20+

0

52

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

53

Snapper 7037751BM

HOLDER, Blade
(Superseded to 7037751BMYP)

$45.99

$

Usually ships in 2-12 days

0

54

Snapper 7034168

BLADE, 33" High Lift
(Superseded to 7034168BZYP)

$26.99

$

In Stock, only 3 left!

0

55

Snapper 7090491

SCREW, 1/2-20 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7090491YP)

$4.99

$

Usually ships in 2-12 days

0

56

Snapper 7090356

NUT, 5/8-18 Hex Center Lock Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0
