150Z (SC 2142) (7800390) - Snapper 42" Zero-Turn Mower, 21hp Wheel & Tire Group Parts Diagram

42" Zero-Turn Mower, 21hp

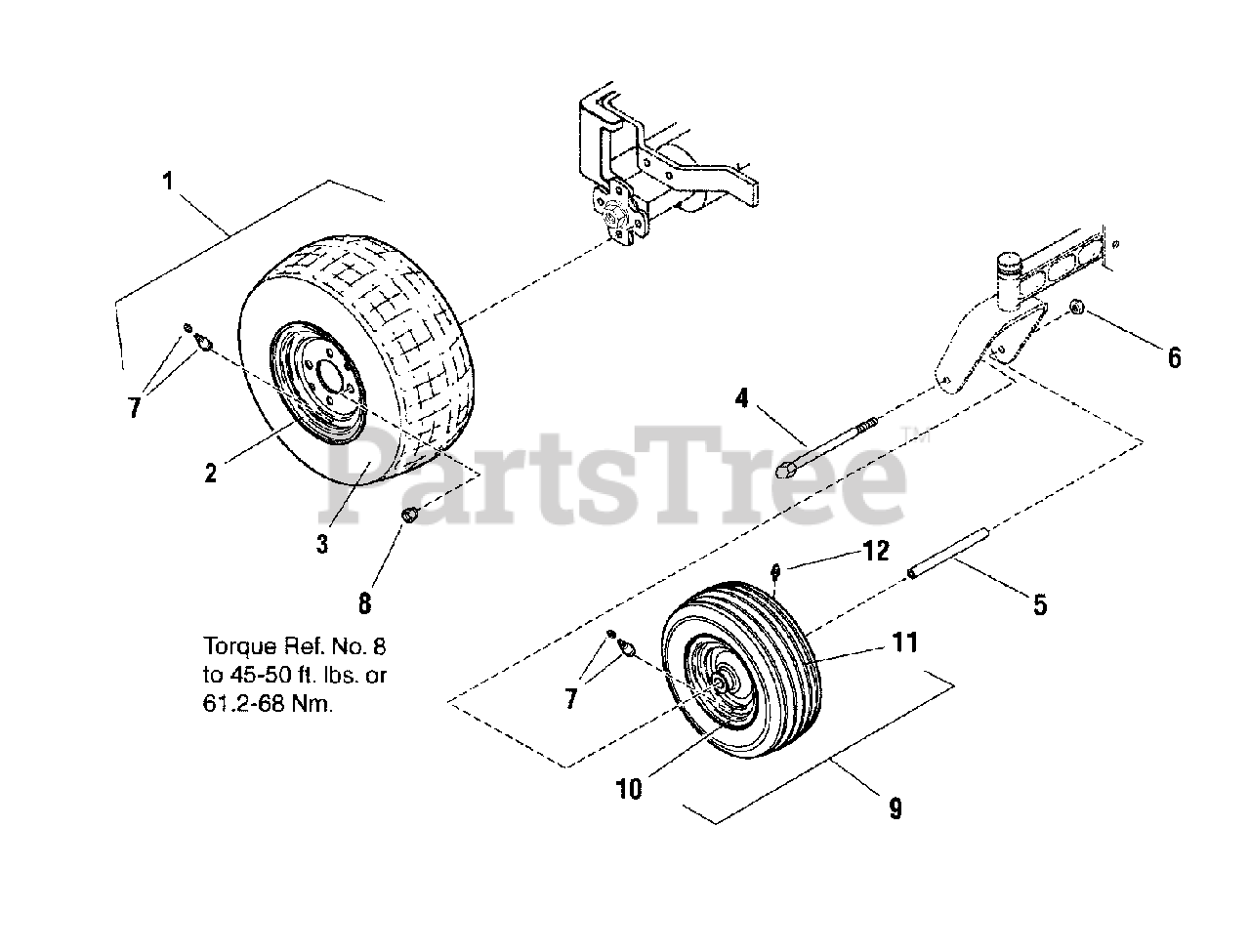

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper 1726383

ASSY, Wheel & Tire, 18 x 8.50-8 "Superturf" (incl. 2 & 3)
(Superseded to 1726383SM)

$256.99

$

Usually ships in 2-12 days

0

2

Snapper 1734878SM

RIM, 18 x 8.50-8, 4 Hole
(Superseded to 1726383SM)

$256.99

$

Usually ships in 2-12 days

0

3

Snapper 1734877SM

TIRE, 18 x 8.50 4 Ply "Superturf"

$107.99

$

Usually ships in 2-12 days

0

4

Snapper 7091772

SCREW, 7/16-14 x 6" Hex Head Cap, GR5
(Superseded to 7091772SM)

$8.49

$

In Stock, Qty 20+

0

5

Snapper 1734841

TUBE, Caster
(Superseded to 1734841SM)

$12.99

$

In Stock, Qty 20+

0

6

Snapper 7090839

NUT, 7/16-14 Hex Center Lock
(Superseded to 7090839SM)

$4.99

$

In Stock, Qty 5

0

7

Snapper 7012234

VALVE STEM & CAP, Air
(Superseded to 7012234SM)

Note: or 2172353

$6.49

$

Usually ships in 2-12 days

0

8

Snapper 5020601

NUT, 1/2-20 for Wheel Bolt - Silver
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 1734013

ASSY, Wheel & Tire 11 x 4-5 (Caster)
(Superseded to 1734013SM)

Note: (also includes Air Valve, Grease Fitting & 2 Bushings)

$110.99

$

In Stock, Qty 20+

0

10

Snapper 1734876

RIM w/Bushings
(Superseded to 1734013SM)

$110.99

$

In Stock, Qty 20+

0

11

Snapper 17234875

TIRE, 11 x 4-5

$

$

Currently unavailable

12

Snapper 7104428

FITTING, Lube (45° 8Mx1M)
(Superseded to 7104428YP)

$5.49

$

In Stock, Qty 10

0
