150Z (EZT 18542 BVE) (2690621) - Snapper 42" Zero-Turn Mower, 18.5hp Wheel & Tire Group Parts Diagram

42" Zero-Turn Mower, 18.5hp

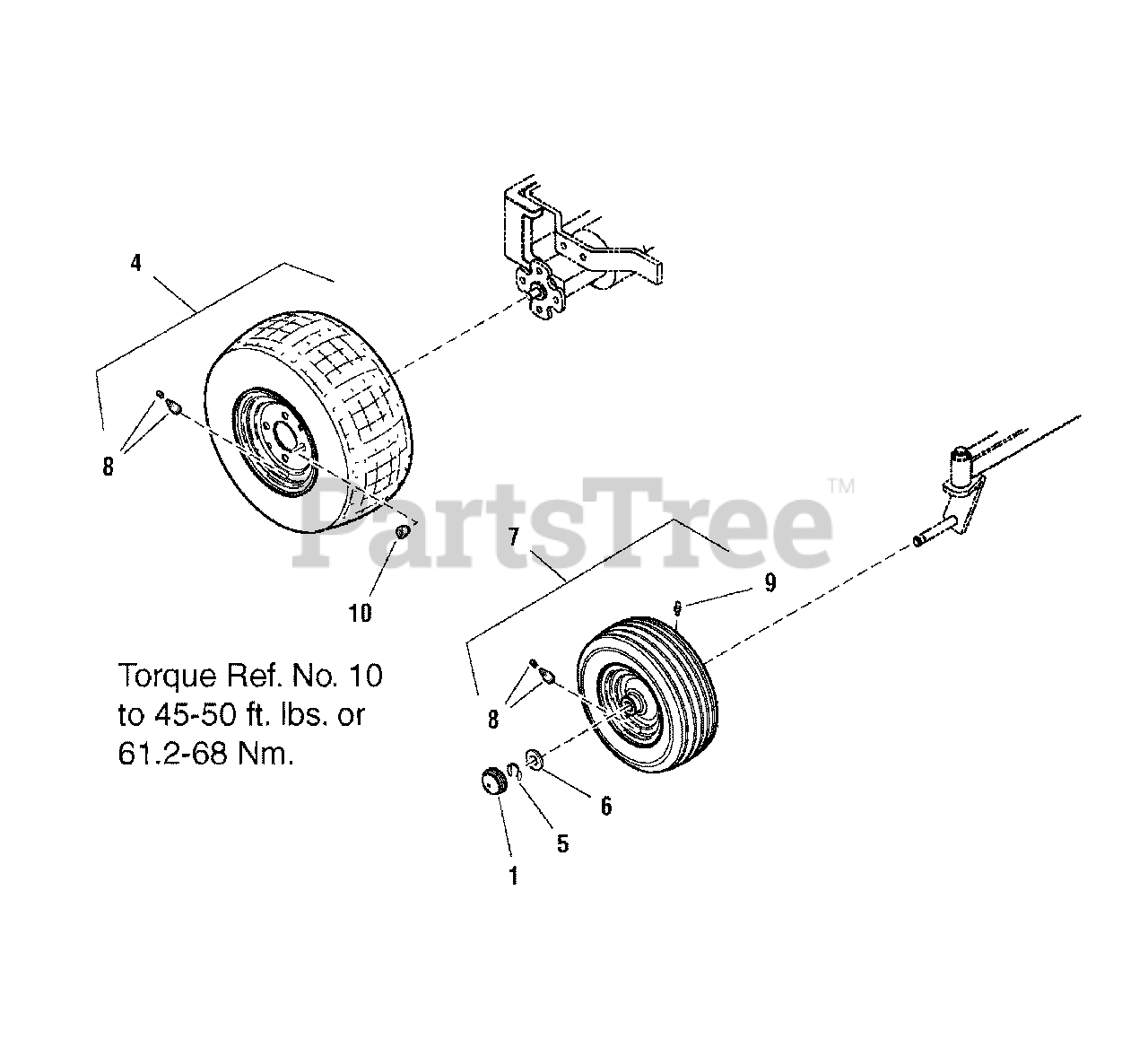

Wheel & Tire Group Parts Diagram

  • Title
1

Snapper 1722675

CAP, Hub, 1-1/2 ID Gray Poly 1.3 HI
(Superseded to 1722675SM)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 1726383

WHEEL & TIRE ASSEMBLY, Rear
(Superseded to 1726383SM)

$256.99

$

Usually ships in 2-12 days

0

5

Snapper 1611710

RING, Klipring for 3/4 DIA Shaft
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 2860202

WASHER, 3/4, 0.76 ID x 1.62 OD x .12 THK
(Superseded to 2860202SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 1726382

WHEEL & TIRE ASSEMBLY, Front
(Superseded to 1726382SM)

$

$

Not available

8

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

9

Snapper 2812808

FITTING, Lube
(Superseded to 2812808SM)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 2177725

NUT, Hex Lug, 7/16-20
(Superseded to 2177725SM)

$6.49

$

In Stock, only 3 left!

0
