150Z (ESC 20420) (2690716) - Snapper 42" Zero-Turn Mower, 20hp Mower Lift Group Parts Diagram

42" Zero-Turn Mower, 20hp

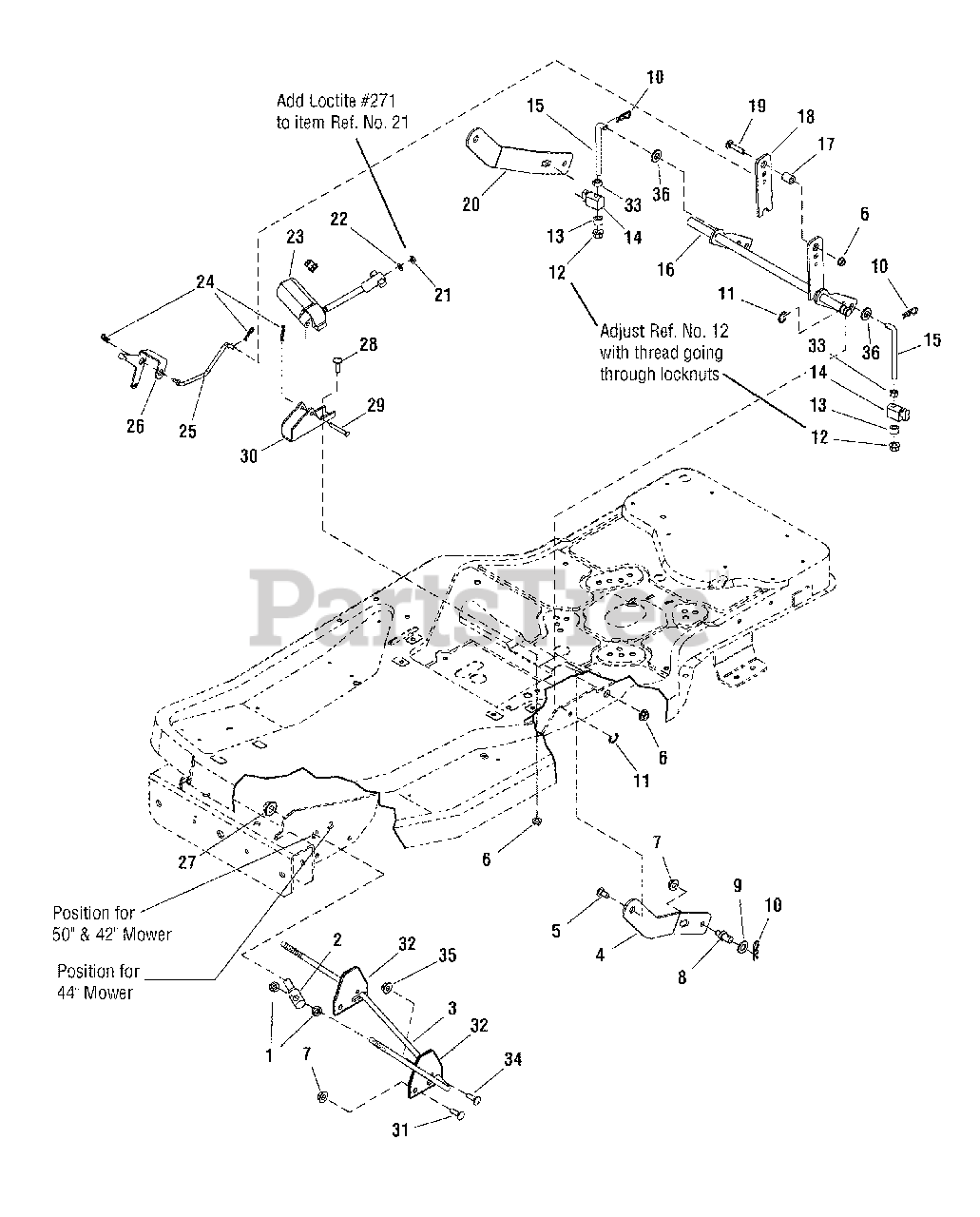

Mower Lift Group Parts Diagram

  • Title

1

Snapper 1922007

NUT, Hex Jam, 7/16-14, NC-2B
(Superseded to 1922007SM)

$7.99

$

Usually ships in 2-12 days

0

2

Snapper 1734042

TRUNNION
(Superseded to 1734042SM)

$17.99

$

Usually ships in 2-12 days

0

3

Snapper 1733381

ROD, Bail
(Superseded to 1733381SM)

$46.99

$

In Stock, only 1 left!

0

4

Snapper 1733535A

ARM, Mower Lift L.H.
(Superseded to 1733535ASM)

$

$

Not available

5

Snapper 720107

BOLT, Shoulder
(Superseded to 009X67MA)

$5.49

$

In Stock, only 3 left!

0

6

Snapper 1931277

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Snapper 80003521

NUT, Hex Whiz Lock Flange, 3/8-16
(Superseded to 703230)

Note: (Was 1931211)

$4.99

$

In Stock, Qty 11

0

8

Snapper 721221

PIN, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

9

Snapper 1960170

WASHER, 1/2"
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 1704420

RING, Klipring, 5/8"
(Superseded to 1704420SM)

$4.99

$

In Stock, only 2 left!

0

12

Snapper 1960687

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 1666294

SPACER
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

14

Snapper 1731894

TRUNNION
(Superseded to 1731894SM)

$9.99

$

In Stock, only 4 left!

0

15

Snapper 1734217

ROD, Mower Lift 3/8-16 x 1 LG Thread
(Superseded to 1734217SM)

$14.99

$

In Stock, Qty 6

0

16

Snapper 1733356A

LIFT SHAFT ASSEMBLY
(Superseded to 1733356ASM)

$112.99

$

Usually ships in 2-12 days

0

17

Snapper 1673796

SPACER, Powdered Metal
(Superseded to 1673796SM)

$24.99

$

Usually ships in 2-12 days

0

18

Snapper 1734336A

ARM, Lift Trunnion
(Superseded to 1734336ASM)

$62.99

$

Usually ships in 2-12 days

0

19

Snapper 1931337

CARRIAGE BOLT, 5/16-18 x 1-1/2, G5
(Superseded to 80003669)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 1733536A

ARM, Mower Lift R.H.
(Superseded to 1733536BMYP)

$86.99

$

Usually ships in 2-12 days

0

21

Snapper 1960757

NUT, Hex, 1/4-20 L.H. Thread
(Superseded to 1960757SM)

$5.49

$

Usually ships in 2-12 days

0

22

Snapper 1921319

WASHER, 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1733513

MOTOR, Mini Actuator
(Superseded to 7600123YP)

$159.99

$

In Stock, only 2 left!

0

24

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

25

Snapper 1733572

ROD, Height of Cut Indicator
(Superseded to 1733572SM)

$11.99

$

In Stock, only 1 left!

0

26

Snapper 1733454

INDICATOR, Height of Cut
(Superseded to 1733454SM)

$19.99

$

Usually ships in 2-12 days

0

27

Snapper 1930644

NUT, Hex Two-Way Lock, 1/2-13
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

28

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

29

Snapper 1668344

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 1733533A

BRACKET, Electric Motor Mount
(Superseded to 1733533BMYP)

$9.99

$

Usually ships in 2-12 days

0

31

Snapper 1960711

CARRIAGE BOLT, 3/8-16 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 1734379A

PLATE, Pivot Lock
(Superseded to 1734379BMYP)

$24.99

$

Usually ships in 2-12 days

0

33

Snapper 1916950

NUT, Hex 3/8 - 16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 1931317

CARRIAGE BOLT, 1/4 - 20 x 3/4

$3.99

$

In Stock, only 3 left!

0

35

Snapper 1960294

NUT, Hex Flange Whiz Lock, 1/4 - 20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

36

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
