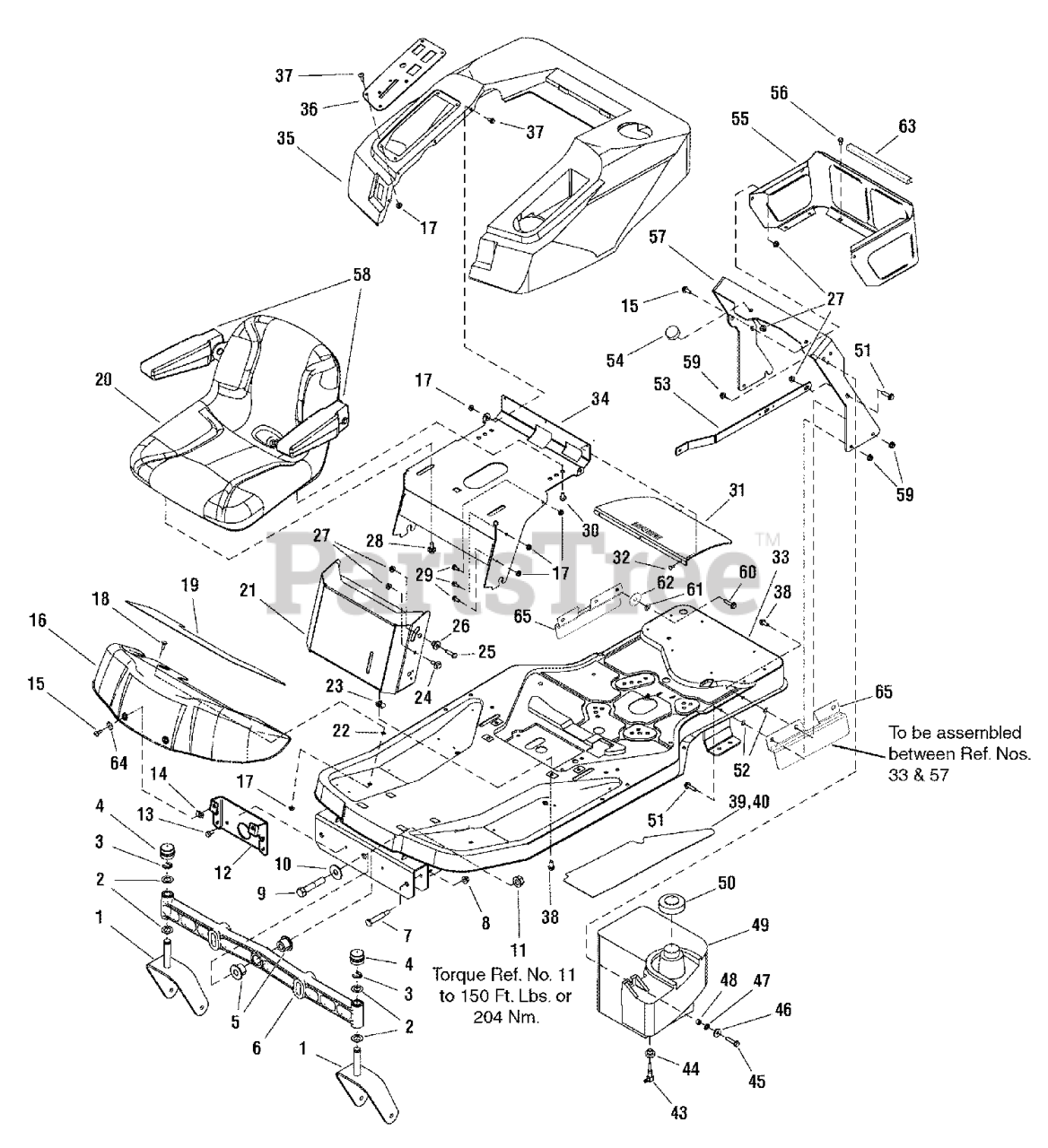

150Z (ESC 20420) (2690716) - Snapper 42" Zero-Turn Mower, 20hp Frame, Body & Seat Group Parts Diagram

42" Zero-Turn Mower, 20hp

Frame, Body & Seat Group Parts Diagram

  • Title

1

Snapper 1733448ASM

CASTER ASSEMBLY
(Superseded to 1733448BMYP)

$152.99

$

In Stock, only 3 left!

0

2

Snapper 1960160SM

WASHER, 0.750 ID x 1.60 OD x .05 Thick

$4.99

$

In Stock, Qty 11

0

3

Snapper 1611710SM

RING, Klipring, For 3/4 Dia. Shaft

$4.49

$

In Stock, Qty 20+

0

4

Snapper 1734135SM

CAP, Hub

$5.99

$

In Stock, Qty 20+

0

5

Snapper 1730186SM

BUSHING, Axle Pivot

$6.99

$

In Stock, Qty 12

0

6

Snapper 1733426ASM

AXLE, Casting
(Superseded to 1733426SM)

$243.99

$

Usually ships in 2-12 days

0

7

Snapper 1733571SM

BOLT, Shoulder, G5
(Superseded to 703427)

$5.99

$

Usually ships in 2-12 days

0

8

Snapper 1960687SM

NUT, Hex Flange Nylock, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3 1/4

$8.49

$

Usually ships in 2-12 days

0

10

Snapper 1960035SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

11

Snapper 2860646SM

NUT, Hex Flange, 5/8-11

$10.99

$

In Stock, Qty 6

0

12

Snapper 1733304ASM

BRACKET, Front Footrest Support

$52.99

$

Usually ships in 2-12 days

0

13

Snapper 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

14

Snapper 1960368SM

NUT, Speed Lug Type, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 1960715SM

SCREW, Truss Head, Torx Drive, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

16

Snapper 1726025DSM

PANEL, Footrest, 18 Ga ZT 7000, Red
(Superseded to 1726025ZSM)

$159.99

$

Usually ships in 2-12 days

0

17

Snapper 1960694SM

NUT, Hex Flange, , ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 1931317SM

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

19

Snapper 1726306SM

PAD, Footrest Panel

$119.99

$

Usually ships in 2-12 days

0

20

Snapper 1726018SM

SEAT ASSEMBLY, with Armrests

$744.99

$

In Stock, only 1 left!

0

21

Snapper 1733573ASM

PANEL, Front with Slot

$125.99

$

Usually ships in 2-12 days

0

21

Snapper 7300752AYP

PANEL, Front Manual Brake and Deck Lift

$72.99

$

Usually ships in 2-12 days

0

22

Snapper 1960518SM

PUSHNUT, 1/4 x 1/2 OD
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 3 left!

0

24

Snapper 720107

BOLT, Shoulder, 5/16-18 x 1/4
(Superseded to 009X67MA)

$5.49

$

In Stock, only 3 left!

0

25

Snapper 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

26

Snapper 1728086SM

PIVOT, Hood, Powdered Metal

$5.99

$

In Stock, Qty 7

0

27

Snapper 1931277SM

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

28

Snapper 1716654SM

BOLT, 5/16-18 X .75, .50 Shoulder G5 YEL

$5.49

$

In Stock, only 1 left!

0

29

Snapper 1930594

SCREW, 1/4-20 x 3/4" Hex Whiz Lock Flange
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper 80003531

SCREW, 5/16-18X0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 14

0

31

Snapper 1708504SM

SCREEN, Top, Seat Deck
(Superseded to 7102141SM)

$42.99

$

In Stock, only 1 left!

0

31

Snapper 7102141SM

SCREEN, Seat Deck

$42.99

$

In Stock, only 1 left!

0

32

Snapper 1673320SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

33

Snapper 1733227ASM

FRAME ASSEMBLY

$866.99

$

Usually ships in 2-12 days

0

34

Snapper 1733965ASM

SUPPORT, Seat

$289.99

$

In Stock, only 1 left!

0

35

Snapper 1734145SM

SEAT DECK, Red Poly, ZTS - Red
(Superseded to 1734143SM)

$

$

Not available

36

Snapper 1734252BMYP

PLATE, Control, ZTS - Black
(Superseded to 1734252ASM)

$21.99

$

Usually ships in 2-12 days

0

37

Snapper 1960715SM

SCREW, Truss Head, Torx Drive, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

38

Snapper 1930591SM

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

39

Snapper 1728986SM

PAD, Footrest R.H.

$10.99

$

Usually ships in 2-12 days

0

40

Snapper 1728987SM

PAD, Footrest L.H.

$10.99

$

In Stock, only 1 left!

0

43

Snapper 1674792SM

ELBOW, Gas Tank

$15.99

$

In Stock, Qty 13

0

44

Snapper 1726400SM

BUSHING
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

45

Snapper 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

46

Snapper 1919381SM

WASHER, Flat, .34 ID x 1" OD
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

47

Snapper 7090189

WASHER, 5/16" Internal/External Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, only 1 left!

0

48

Snapper 7024340

SPACER, .316 I.D. x .375 O.D. x .310 thick
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

49

Snapper 1734257SM

TANK, Fuel

$259.99

$

Usually ships in 2-12 days

0

50

Snapper 1714020SM

CAP, Fuel Tank, vented (Used on clear tank)

$31.99

$

In Stock, only 3 left!

0

51

Snapper 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

52

Snapper 1933988SM

NUT, Push Pal, 5/16 DIA Thread, 5/8 OD
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

53

Snapper 1734323A

STRAP, Fuel Tank Brace
(Superseded to 1734323ASM)

$28.99

$

Usually ships in 2-12 days

0

54

Snapper 1726390SM

BUMPER, Rubber

$9.99

$

Usually ships in 2-12 days

0

55

Snapper 1715962ASM

SHROUD, Rear
(Superseded to 7301146AYP)

$68.99

$

Usually ships in 2-12 days

0

56

Snapper 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

57

Snapper 1733393ASM

SUPPORT, Seat Deck

$307.99

$

Usually ships in 2-12 days

0

58

Snapper 1687021SM

ARM REST KIT, L.H. & R.H.

$240.99

$

Usually ships in 2-12 days

0

59

Snapper 1960686SM

NUT, Hex Flange Nylock, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

60

Snapper 1920415SM

CAPSCREW, Hex-Head, 3/8-16 X 1-1/4, G5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

61

Snapper 1931942SM

NUT, Push Pal, 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

62

Snapper 1960534SM

WASHER, 3/8 (0.41 ID X 1.5 OD X .25 Thick) Black

$

$

Not available

63

Snapper 1735680SM

TRIM, 8"

$8.99

$

Usually ships in 2-12 days

0

64

Snapper 2820426

WASHER, 5/16" External Tooth Lock Washer, Yellow
(Superseded to 2820426SM)

$4.49

$

In Stock, only 1 left!

0

65

Snapper 1734392ASM

GUARD, Debris

$20.99

$

Usually ships in 2-12 days

0
