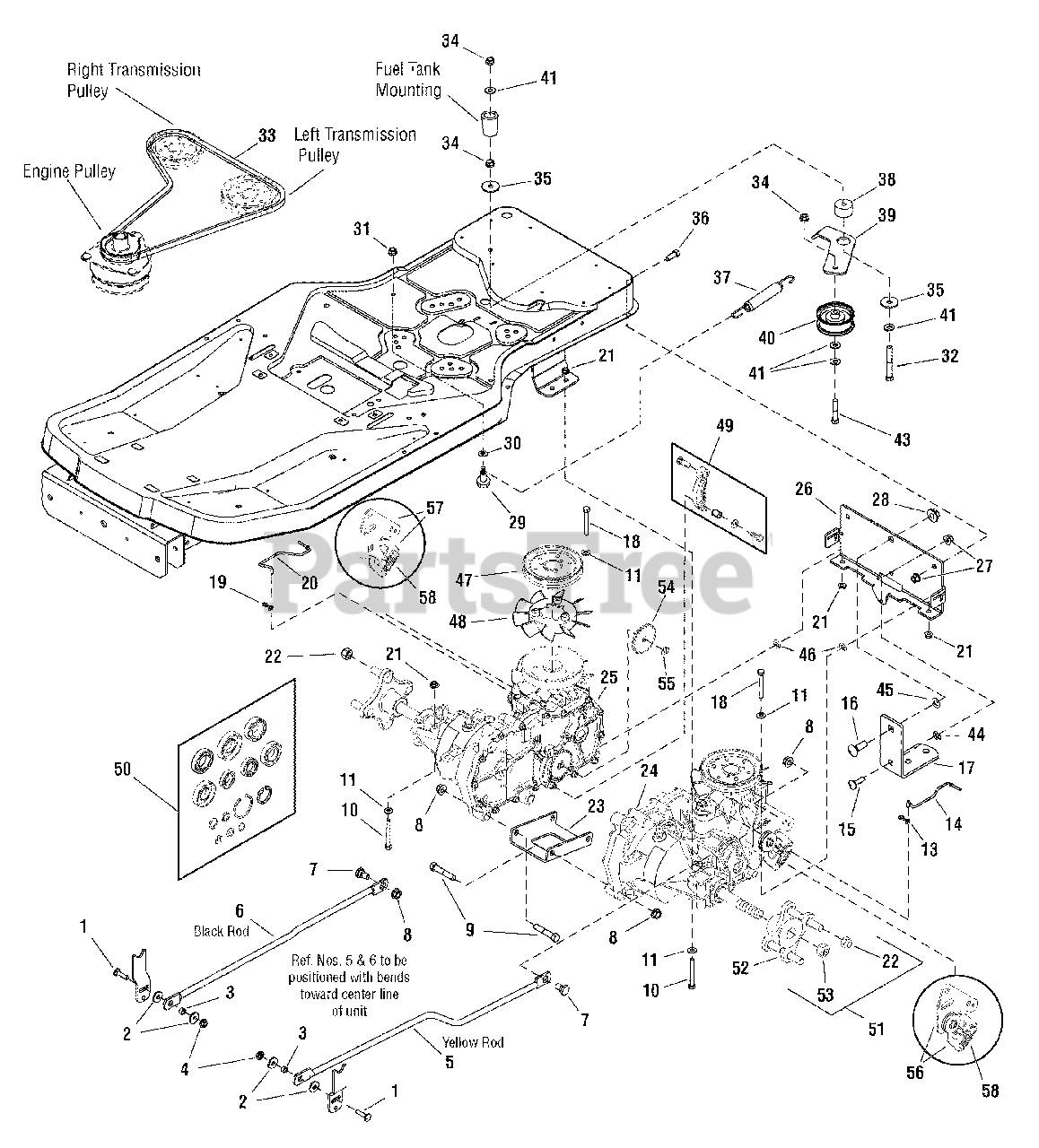

150Z (CSC 2650) (7800394) - Snapper 50" Zero-Turn Mower, 26hp Transmission Group (7501730) Parts Diagram

50" Zero-Turn Mower, 26hp

Transmission Group (7501730) Parts Diagram

  • Title

1

Snapper 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

2

Snapper 1919381SM

WASHER, 5/16 ID x 1" OD
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

4

Snapper 1960684SM

NUT, Hex Keps, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

5

Snapper 1727555SM

ROD, Control L.H.

$37.99

$

Usually ships in 2-12 days

0

6

Snapper 1727556SM

ROD, Control R.H.

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 1727831SM

BOLT, Shoulder

$8.49

$

Usually ships in 2-12 days

0

8

Snapper 1930650SM

NUT, Hex Flange Two-Way Lock, 7/16-14

$5.49

$

In Stock, only 4 left!

0

9

Snapper 1927120SM

CAPSCREW, Hex Head, 7/16-14 x 2-1/4, G8

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 1923141SM

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, G5
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

11

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

13

Snapper 1717024SM

CLIP, Rod End Linkage

$7.49

$

In Stock, only 2 left!

0

14

Snapper 1733913SM

ROD, Tow Valve L.H.

$9.99

$

Usually ships in 2-12 days

0

15

Snapper 1960268SM

BOLT, Carriage, 3/8-16 x 1-1/4, G5

$4.49

$

In Stock, Qty 9

0

16

Snapper 1960758SM

BOLT, Carriage, 1/2-13 x 1-1/2, G5

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 1733305ASM

DRAWBAR

$24.99

$

In Stock, only 1 left!

0

18

Snapper 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2, G5
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

19

Snapper 1725550SM

CLIP, Rod End Linkage

$5.99

$

Usually ships in 2-12 days

0

20

Snapper 1733914SM

ROD, Tow Valve R.H.

$9.99

$

In Stock, only 1 left!

0

21

Snapper 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Snapper 5020601SM

NUT, Wheel Hex, 1/2-20

$3.49

$

In Stock, Qty 20+

0

23

Snapper 1733309ASM

SUPPORT, Transmission Center

$47.99

$

Usually ships in 2-12 days

0

24

Snapper 1733351SM

TRANSMISSION, Hydro Gear EZT L.H.
(Superseded to 7104656YP)

$1171.99

$

Usually ships in 2-12 days

0

25

Snapper 1733352SM

TRANSMISSION, Hydro Gear EZT R.H.
(Superseded to 7104657YP)

$1173.99

$

Usually ships in 2-12 days

0

26

Snapper 1733302ASM

SUPPORT, Transmission Rear

$107.99

$

Usually ships in 2-12 days

0

27

Snapper 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0

29

Snapper 1728976SM

BOLT, Shoulder, 5/16-18 x 1-5/8

$6.49

$

In Stock, only 2 left!

0

30

Snapper 1924874SM

WASHER, 5/16 ID x 7/8 OD
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 1927557SM

NUT, Hex Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7091501SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2, GR5
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

33

Snapper 1732224SM

V-BELT, Transmission Drive, 54.4

$

$

Not available

34

Snapper 1930645SM

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

35

Snapper 1924356SM

WASHER, 7/16 ID x 1-1/2 OD
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

36

Snapper 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1, G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

37

Snapper 1734316SM

SPRING, Extension

$11.99

$

In Stock, only 1 left!

0

38

Snapper 1729007SM

SPACER, Powdered Metal

$11.99

$

In Stock, Qty 20+

0

39

Snapper 1733303ASM

ARM, Idler

$28.99

$

Usually ships in 2-12 days

0

40

Snapper 1721133SM

PULLEY, Idler Flat

$29.99

$

In Stock, Qty 20+

0

41

Snapper 1924940SM

WASHER, 7/16 ID x 7/8 OD
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

43

Snapper 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

44

Snapper 1931942SM

NUT, Push Pal, 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

45

Snapper 1960759SM

NUT, Push Pal, 1/2

$3.99

$

Usually ships in 2-12 days

0

46

Snapper 1933988SM

NUT, Push Pal, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

47

Snapper 1728073SM

PULLEY, 4-1/2" Transmission

$

$

Not available

48

Snapper 1728074SM

FAN, 6" Transmission

$43.99

$

Usually ships in 2-12 days

0

49

Snapper 1728075SM

PARKING BRAKE ARM ASSEMBLY, Transmission

$50.99

$

In Stock, only 1 left!

0

50

Snapper 1728060SM

HYDRO SEAL KIT

$140.99

$

Usually ships in 2-12 days

0

51

Snapper 1687329SM

HUB REPLACEMENT KIT
(Superseded to 1687471YP)

Note: (Includes Ref. Nos. 52 & 53)

$153.99

$

Usually ships in 2-12 days

0

52

HUB, EZT Transmission

Note: (Included in Ref. No. 51)

$

$

Not available

53

NUT, EZT Transmission

Note: (Included in Ref. No. 51)

$

$

Not available

54

Snapper 1728076SM

GEAR, Parking Brake, Transmission

$37.99

$

Usually ships in 2-12 days

0

55

Snapper 1716622SM

CLIP, E Transmission Parking Brake

$4.49

$

Usually ships in 2-12 days

0

56

Snapper 1735490SM

ARM, Control Kit L.H.

$108.99

$

Usually ships in 2-12 days

0

57

Snapper 1735491SM

ARM, Control Kit R.H.

$92.99

$

Usually ships in 2-12 days

0

58

Snapper 1735483SM

SPRING, Extension

Note: (Used only on Hydro Gear P/N ZC-AHBB-2A7B-1DPX and ZC-DHBB-2A7C-1DPX)

$16.99

$

In Stock, Qty 6

0

58

Snapper 1735482SM

SPRING, Extension

Note: (Used only on Hydro Gear P/N ZC-AHBB-2ADB-1DPX and ZC-DHBB-2ADC-1DPX)

$

$

Not available
