150Z (CSC 2650) (7800394) - Snapper 50" Zero-Turn Mower, 26hp Mower Lift Group (50" Deck) Parts Diagram

50" Zero-Turn Mower, 26hp

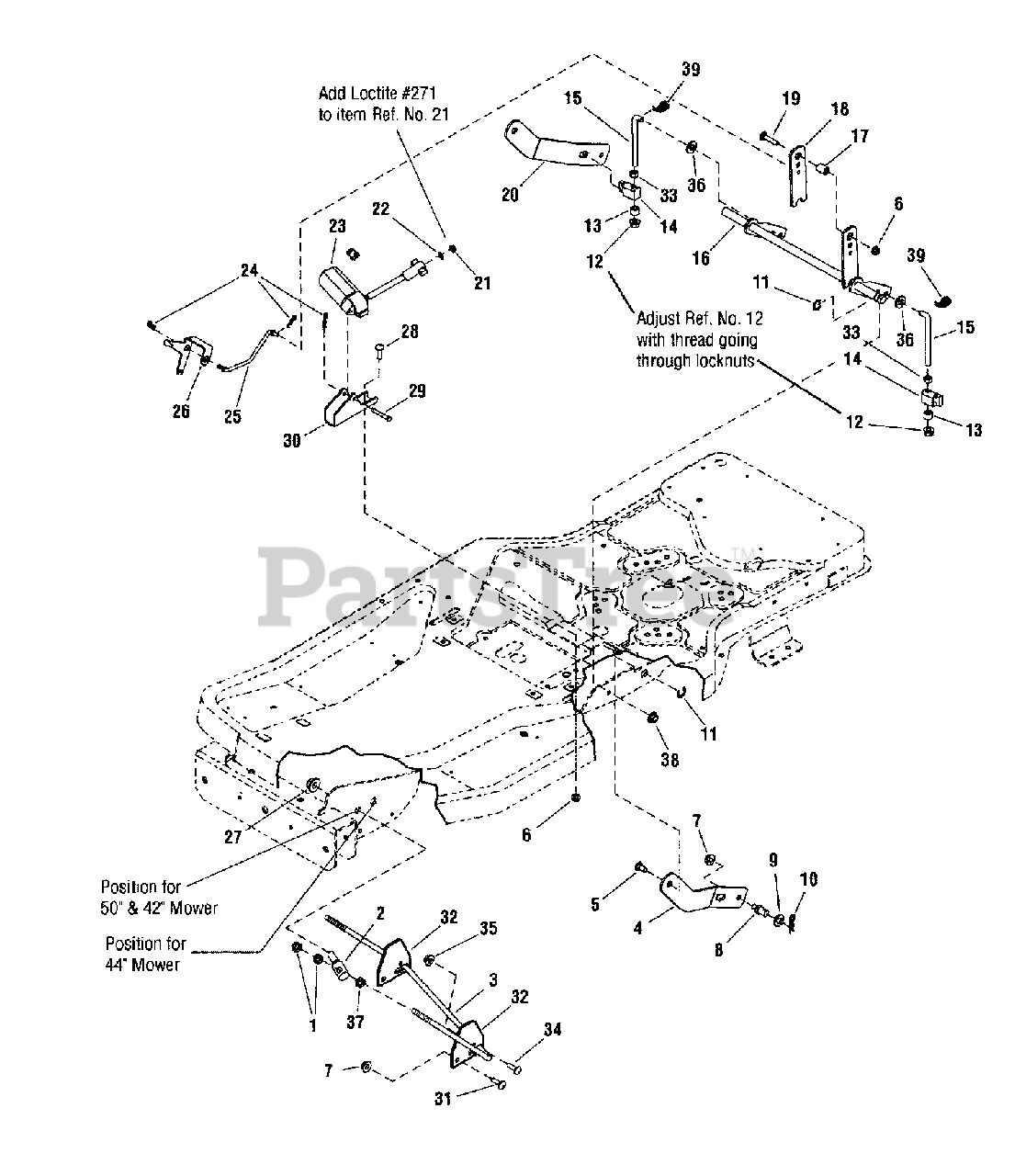

Mower Lift Group (50" Deck) Parts Diagram

  • Title

1

Snapper 1922007

NUT, 7/16-14 Hex Jam
(Superseded to 1922007SM)

$7.99

$

Usually ships in 2-12 days

0

2

Snapper 1734042

TRUNNION, 1/2-13 Thread
(Superseded to 1734042SM)

$17.99

$

Usually ships in 2-12 days

0

3

Snapper 1733381

ROD, Bail (7/16-14 Thread, 2 Places)
(Superseded to 1733381SM)

$46.99

$

In Stock, only 1 left!

0

4

Snapper 1733535BM

ARM, Mower Lift L.H.
(Superseded to 1733535ASM)

$

$

Not available

5

Snapper 720107

SHOULDER BOLT, 5/16-18
(Superseded to 009X67MA)

$5.49

$

In Stock, only 3 left!

0

6

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Snapper 1960251

NUT, 3/8-16 Hex Center Lock Jam
(Superseded to 703230)

$4.99

$

In Stock, Qty 11

0

8

Snapper 721221

PIN, 3/8-16 Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

9

Snapper 1960170

WASHER, 1/2" Flat (0.51 I.D. x 1.00 O.D. x .10 Thick)
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 1960074

CLIP, Hair Pin .093 Dia.
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 1704420

RING, External (Klipring) for .625 Dia. Shaft
(Superseded to 1704420SM)

$4.99

$

In Stock, only 2 left!

0

12

Snapper 1960687

NUT, 3/8-16 Hex Flange Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 1666294

SPACER, .385 I.D. x .6697 O.D. x .455 Long, Powdered Metal
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

14

Snapper 1731894

TRUNNION, Powdered Metal
(Superseded to 1731894SM)

$9.99

$

In Stock, only 4 left!

0

15

Snapper 1734217

ROD, Mower Lift, 3/8-16 Thread
(Superseded to 1734217SM)

$14.99

$

In Stock, Qty 6

0

16

Snapper 1733356BM

WELDMENT, Lift Shaft
(Superseded to 1733356ASM)

$112.99

$

Usually ships in 2-12 days

0

17

Snapper 1673796

SPACER, .328 I.D. x .625 O.D. x .781 Long (Powdered metal)
(Superseded to 1673796SM)

$24.99

$

Usually ships in 2-12 days

0

18

Snapper 1734336BM

ARM, Lift Trunnion
(Superseded to 1734336ASM)

$62.99

$

Usually ships in 2-12 days

0

19

Snapper 1931337

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck, GR5
(Superseded to 80003669)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 1733536BM

ARM, Mower Lift R.H.
(Superseded to 1733536BMYP)

$86.99

$

Usually ships in 2-12 days

0

21

Snapper 1960757

NUT, 1/4-20 Hex, L.H. Thread
(Superseded to 1960757SM)

$5.49

$

Usually ships in 2-12 days

0

22

Snapper 1921319

WASHER, 1/4" Flat (.27 I.D. x .62 O.D.)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1738294

MOTOR, Mini-Actuator (Electric)
(Superseded to 1753528YP)

Note: (replaces 1733513 (voided))

$

$

Not available

24

Snapper 1722460

HAIR PIN
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

25

Snapper 7104286

ROD, Height-of-Cut Indicator
(Superseded to 7104286YP)

Note: (replaces 1733572 (voided))

$14.99

$

Usually ships in 2-12 days

0

26

Snapper 1733454

INDICATOR, Height-of-Cut
(Superseded to 1733454SM)

$19.99

$

Usually ships in 2-12 days

0

27

Snapper 1930644

NUT, HEX FLANGE 1/2-13 Hex Flange Two Way Lock
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

28

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

29

Snapper 1668344

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7301148BZ

BRACKET, Electric Motor Mount
(Superseded to 7301148BZYP)

Note: (replaces 1733533BM (voided))

$12.99

$

Usually ships in 2-12 days

0

31

Snapper 1960711

BOLT, Carriage, Short Square Neck, 3/8-16X0.750 GR5, Black
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 1734379A

PLATE, Pivot Lock
(Superseded to 1734379BMYP)

$24.99

$

Usually ships in 2-12 days

0

33

Snapper 1916950

NUT, HEX 3/8-16 Hex
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 1931317

BOLT, 1/4-20 x 2" Round Head Short Square Neck, GR5, Black

$3.99

$

In Stock, only 3 left!

0

35

Snapper 1960294

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

36

Snapper 1924940

WASHER, .375 Flat (.41 I.D. x .87 O.D.)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 1918213

NUT, 7/16-14 Hex
(Superseded to 1918213SM)

$4.99

$

In Stock, only 2 left!

0

38

Snapper 7091706

NUT, 5/16-18 Top Lock, GR B
(Superseded to 7091706SM)

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 7091593

COTTER PIN, 3/8" Self-Locking, YZ
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0
