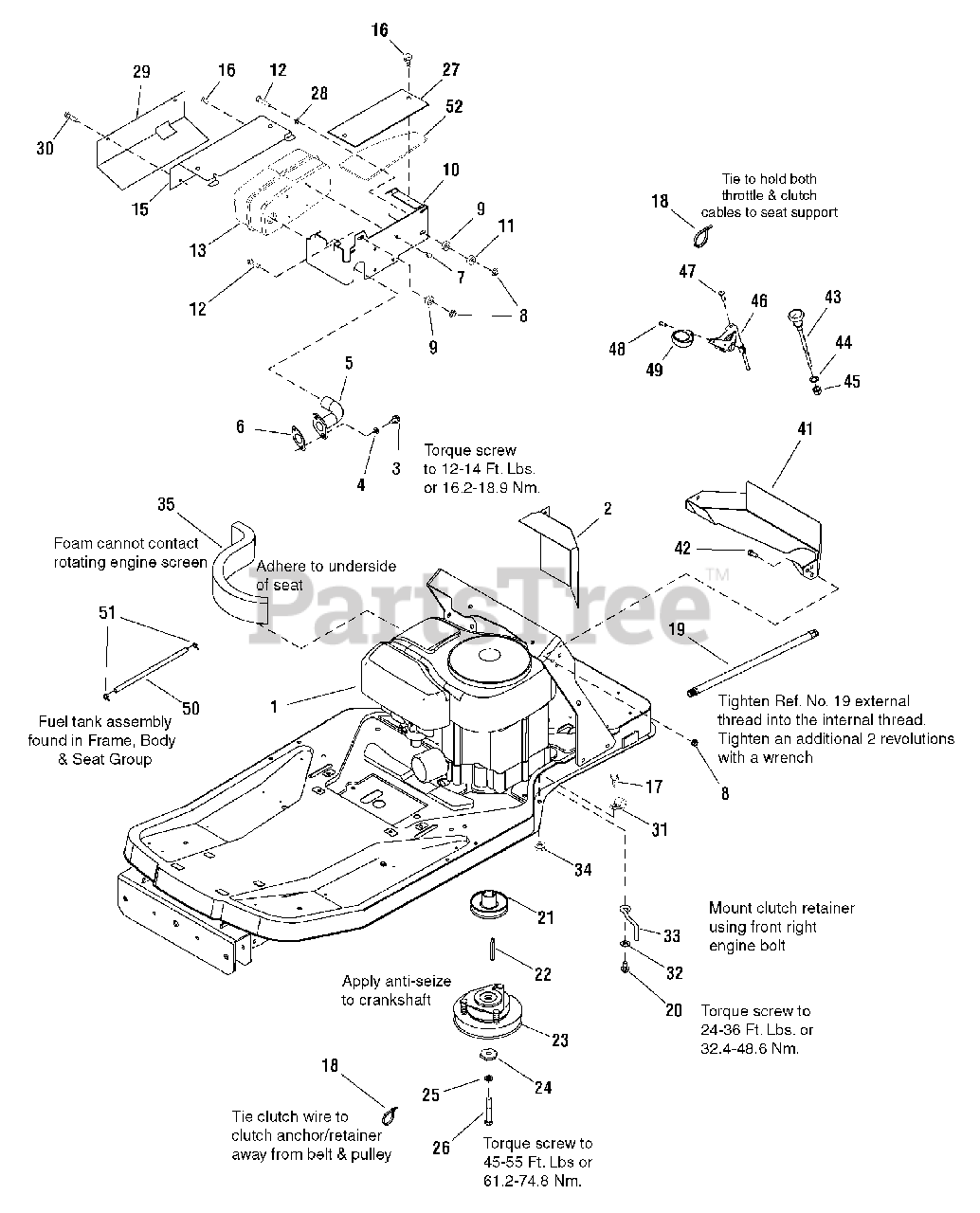

  • Title

1

Snapper 33M777-0111-B1

* ENGINE, 21 HP, B&S, ELS

Note: (used on 7800386 model)

$

$

Currently unavailable

1

Snapper 33M777-0115-G1

* ENGINE, 21 HP, B&S, ELS-California

Note: (used on 7800393 model)

$

$

Currently unavailable

1

Snapper 33M777-0117-B1

* ENGINE, 21 HP, B&S, ELS (early models)

Note: (used on 7800621 model)

$

$

Not available

1

Snapper 33M777-2117-G1

* ENGINE, 21 HP, B&S, ELS

Note: (used on 7800621 model)

$

$

Not available

2

Snapper 7300919A

HEAT SHIELD, Inner
(Superseded to 7300919ASM)

$47.99

$

Usually ships in 2-12 days

0

3

Snapper 1936228

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR8
(Superseded to 1936228SM)

$4.49

$

In Stock, only 1 left!

0

4

Snapper 1917356

LOCKWASHER, Spring 5/16", Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 1732259

WELDMENT, Exhaust Pipe
(Superseded to 1732259SM)

$34.99

$

Usually ships in 2-12 days

0

6

Snapper 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

7

Snapper 1960295

SCREW, 1/4-20 x 5/8" Hex Whiz Lock Flange
(Superseded to 1960295SM)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 1927557

NUT, 5/16-18 Hex Flange Lock Large Black
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

9

Snapper 1667812

SPACER, .390 x .900 x .70, YZ
(Superseded to 1667812SM)

$5.99

$

In Stock, Qty 16

0

10

Snapper 1732255

BRACKET, Muffler/Heat Shield
(Superseded to 1732255SM)

$

$

Not available

10

Snapper 7300917

BRACKET, Muffler, Heat Resistant
(Superseded to 7300917SM)

$78.99

$

In Stock, only 1 left!

0

11

Snapper 1667811

SPACER, .390 I.D. x .90 O.D. x .34 Long, Powdered Metal
(Superseded to 1667811SM)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7091908

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR5, YZ
(Superseded to 7091908YP)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 1732273

MUFFLER ASSEMBLY, Single
(Superseded to 1732273SM)

$93.99

$

In Stock, Qty 5

0

15

Snapper 7300918A

HEAT SHIELD, Outer Single
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

16

Snapper 1960720

SCREW, #10 x 1/2" Hex Washer Head Self-Tap
(Superseded to 1960720SM)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 1930591

SCREW, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

18

Snapper 2832747

TIE, Self Locking 3-5/8" Long
(Superseded to 2832747SM)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 1726498

HOSE, Oil Drain, 16-1/2" Long
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 2828635

SCREW, 3/8-16 x 1-1/4" Hex Washer Head Taptite
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

21

Snapper 7101716

PULLEY, Engine- ZT
(Superseded to 7101716SM)

$50.99

$

Usually ships in 2-12 days

0

22

Snapper 2154096

KEY, Square, 1/4 x 1/4 x 29/32 Hardened
(Superseded to 2154096SM)

$6.99

$

In Stock, only 1 left!

0

23

Snapper 1717664

CLUTCH, Ogura JD-11
(Superseded to 1757359)

$290.99

$

In Stock, only 1 left!

0

24

Snapper 1708264

WASHER, Hex, .453 I.D. x 1-1/2"
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 5

0

25

Snapper 1918199

LOCKWASHER, Spring, .438
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7027266

SCREW, 7/16-20 x 3" Hex Head Cap, GR5 (w/Nyloc Patch)
(Superseded to 7027266SM)

$7.49

$

Usually ships in 2-12 days

0

27

Snapper 1732885A

HEAT SHIELD
(Superseded to 1732885ASM)

$15.99

$

Usually ships in 2-12 days

0

28

Snapper 1919326

WASHER, 5/16" (.34 I.D. x 3/4" O.D.)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 1733063

HEAT SHIELD
(Superseded to 1733063SM)

$48.99

$

Usually ships in 2-12 days

0

30

Snapper 1675044

RIVET, Pop
(Superseded to 1675044SM)

$3.99

$

In Stock, only 1 left!

0

31

Snapper 7900020

CLIP, Harness, 5/8"
(Superseded to 7900020SM)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 1924940

WASHER, 3/8", (.41 I.D. x .87 O.D. x .08 Thick)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7101717

RETAINER, Clutch
(Superseded to 7101717SM)

$

$

Not available

34

Snapper 1931277

NUT, 5/16-18 Hex Whiz Lock Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

35

Snapper 7102139

SEAL, Foam 1.0 x 3.50 x 12" Long
(Superseded to 7102139SM)

$47.99

$

Usually ships in 2-12 days

0

41

Snapper 1734180BM

AIR DUCT, Inlet
(Superseded to 1734180ASM)

$69.99

$

Usually ships in 2-12 days

0

42

Snapper 1921332

SCREW, 5/16-18 x 3/4" Hex Head Cap, Black
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

43

Snapper 7100416

CABLE, Choke, 54"
(Superseded to 7100416SM)

Note: (used on 7800386 & 7800393 models)

$42.99

$

Usually ships in 2-12 days

0

43

Snapper 7103123

ASSY, Choke-a-Matic Control
(Superseded to 7103123YP)

Note: (used on 7800621 model)

$43.99

$

Usually ships in 2-12 days

0

44

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

45

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

46

Snapper 7075449

CONTROL, Throttle B&S Intek
(Superseded to 7075449SM)

Note: (used on 7800386 & 7800393 models)

$37.99

$

Usually ships in 2-12 days

0

47

Snapper 7090999

SCREW, 1/4-20 x 5/8" Pan Head Taptite Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

48

Snapper 7091195

SCREW, #10-16 x 3/4" Pan Head Taptite Combo
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

49

Snapper 7100529

KNOB, Throttle, Red
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

50

Snapper 1734995

** HOSE, Fuel, Low Perm, 1/4" I.D. x 19-1/2" Long
(Superseded to 1734995SM)

$11.99

$

Usually ships in 2-12 days

0

51

Snapper 7012222

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

52

Snapper 1734062

INSULATION, Muffler Shield
(Superseded to 1734062SM)

$24.99

$

Usually ships in 2-12 days

0
