15032 - Troy-Bilt Sprayer II, 5 Gallon (SN: S007570 & Above) MAIN ASSEMBLY Parts Diagram

Sprayer II, 5 Gallon

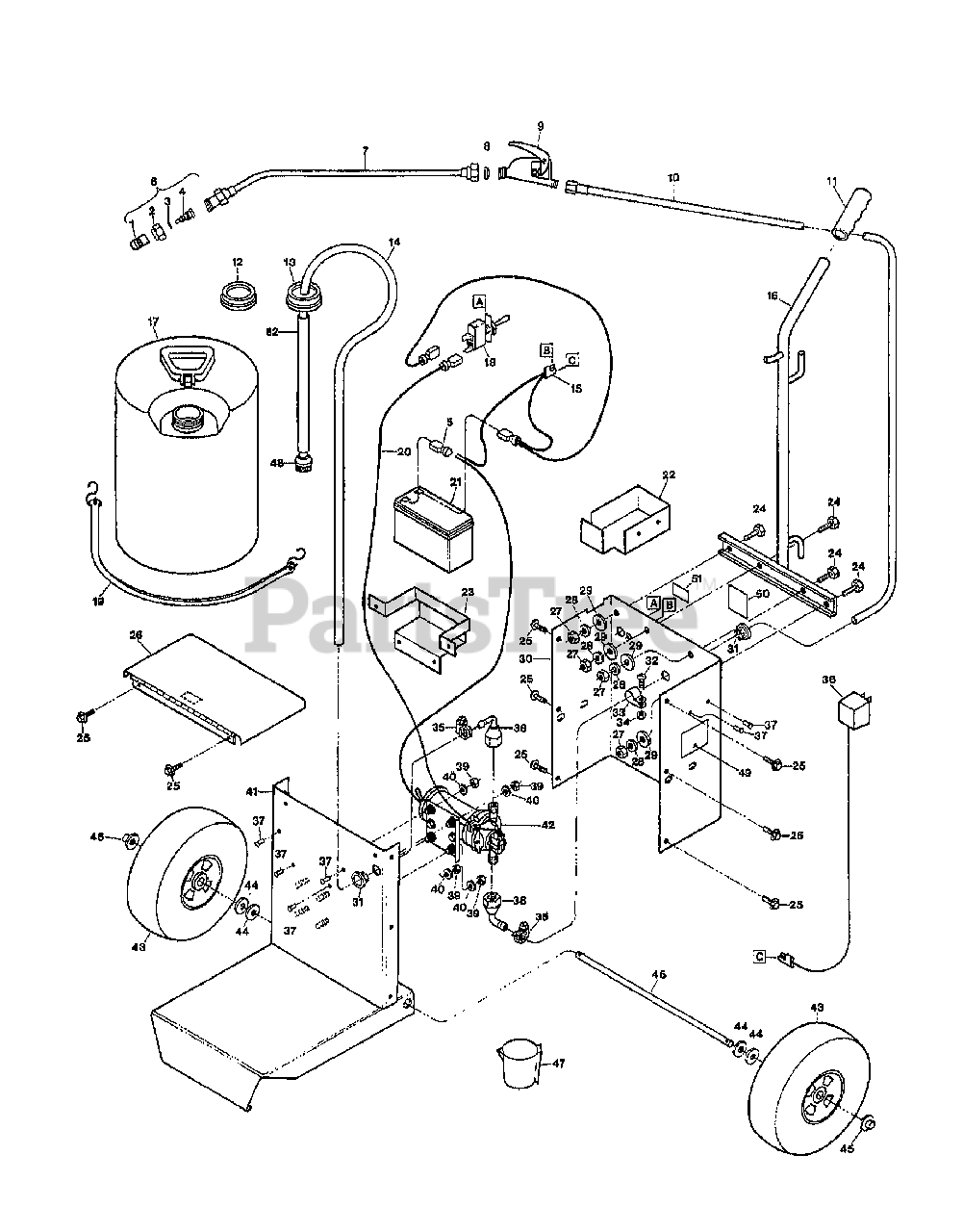

MAIN ASSEMBLY Parts Diagram

  • Title
1

0

N/A

$

$

Not available

2

0

N/A

$

$

Not available

3

0

N/A

$

$

Not available

4

0

N/A

$

$

Not available

5

MTD 1983932

WIRE-TERM 10882

$

$

Not available

6

Troy-Bilt 1984145

ASSM-ADJ CONE W5500

$

$

Currently unavailable

7

Troy-Bilt 1983912

EXTENSION-SPRAY 10825

$

$

Currently unavailable

8

Troy-Bilt 1983924

WASHER-TEFLON/BRASS 10842

$

$

Currently unavailable

9

MTD 1983911

VALVE-SHUT OFF PISTOL 10824

$

$

Not available

10

MTD 1983926

HOSE W/FITTINGS 10845

$

$

Not available

11

Troy-Bilt 9471

GRIPS-HANDLEBAR

$

$

Currently unavailable

12

MTD 1983929

CAP-E/S TANK 10868

$

$

Not available

13

MTD 1981103

CAP W/HOLE 10869

$

$

Not available

14

MTD 1983923

HOSE-1/4" X 4' 10841

$

$

Not available

15

MTD 1984225

KIT-WIRE HARNESS 96517

$

$

Not available

16

Troy-Bilt 1981096

ASSM-HANDLE

$

$

Currently unavailable

17

Troy-Bilt 1983954

KIT-CAP & TANK

$

$

Currently unavailable

18

Troy-Bilt 1983917

SWITCH-TOGGLE 10830
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

19

MTD 1983913

STRAP-RUBBER 10826

$

$

Not available

20

MTD 1984411

WIRE-ON/OFF-SWITCH PUMP

$

$

Not available

21

Troy-Bilt 1983905

BATTERY-12V EL SPRAYER 10815
(Superseded to 1768158)

$270.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1981088

BRKT-ACCESSORY

$

$

Currently unavailable

23

Troy-Bilt 1981089

ASSM-BATTERY BRKT

$

$

Currently unavailable

24

Troy-Bilt 9008

ENGINE-9436B

$

$

Currently unavailable

25

9589

SCR-HW M10-24X.375 ZP

$

$

Not available

26

Troy-Bilt 1981101

LID WITH HINGE

$

$

Currently unavailable

27

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

28

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

29

Troy-Bilt 9933

WASHER-1.25X.375X.1 ZP

$

$

Currently unavailable

30

Troy-Bilt 1981092

ASSM-CHASSIS

$

$

Currently unavailable

31

MTD 1983914

BUSHING-SNP 10827

$

$

Not available

32

Troy-Bilt 9722

SCR-RH M10-32X.5 MACH

$

$

Currently unavailable

33

MTD 1983915

CLAMP-CABLE 10828

$

$

Not available

34

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable

35

Troy-Bilt 1983916

CLAMP-HOSE 10829
(Superseded to 726-0146)

$

$

Not available

36

Troy-Bilt 11402

CHARGER-BATTERY TRAILBLAZER

$

$

Currently unavailable

37

Troy-Bilt 1983922

RIVET-POP 1/8-3/8 10840

$

$

Currently unavailable

38

Troy-Bilt 1983925

SWIVEL-90 ELBOW 10843

$

$

Currently unavailable

39

Troy-Bilt 9839

NUT-HEX M10-24

$

$

Currently unavailable

40

Troy-Bilt 9922

WASHER-#10

$

$

Currently unavailable

41

Troy-Bilt 1981092

ASSM-CHASSIS

$

$

Currently unavailable

42

MTD 1984194

PUMP-SHURFLO 11511 5GAL

$

$

Not available

43

MTD 1983937

ASSM-TIRE & WHEEL

$

$

Not available

44

Troy-Bilt 9908

WASHER-1.75X.625X.11

$

$

Currently unavailable

45

Troy-Bilt 92021

NUT-PUSH 5/8

$

$

Currently unavailable

46

MTD 1981087

AXLE-EL SPRAY 10847

$

$

Not available

47

MTD 1983920

CUP-MEASURING 8OZ 10833

$

$

Not available

48

Troy-Bilt 1983919

STRAINER-EL SPRAYER 10832

$

$

Currently unavailable

49

MTD 1984227

DECAL-SPRAYER LOGO 97122

$

$

Not available

50

MTD 1983907

DECAL-CHARGE 10817

$

$

Not available

51

MTD 1983908

DECAL-WARNING E/S 10818

$

$

Not available

52

MTD 1983935

1/2" PVC SCH40 11512

$

$

Not available
