15031 - Troy-Bilt Spray Boom 4 HEAD SPRAY BOOM - ACCESSORY Parts Diagram

Spray Boom

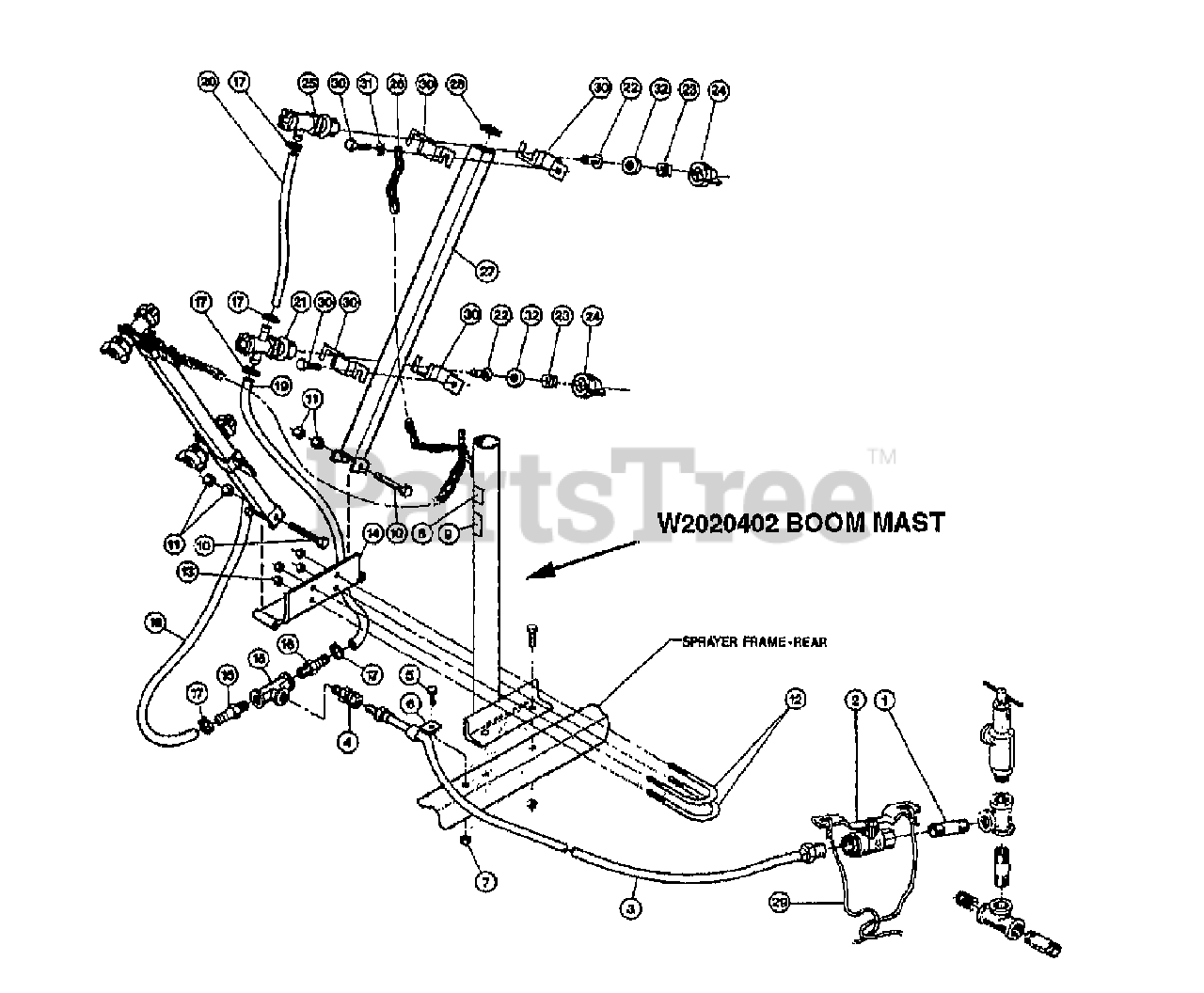

4 HEAD SPRAY BOOM - ACCESSORY Parts Diagram

  • Title
1

Troy-Bilt W209810142

NIPPLE-PIPE 50X2 GALVANIZED

$

$

Currently unavailable

2

Troy-Bilt WT580

VALVE-BALL .5 WING HANDLE

$

$

Currently unavailable

3

Troy-Bilt W2075663

ASSM-44" HOSE W/CLAMPS W207566

$

$

Currently unavailable

4

Troy-Bilt W20450404

ADAPTER-.25FPT X .25NPT

$

$

Currently unavailable

5

Troy-Bilt 9855

SCR-SLOT.H.10-24X2
(Superseded to 710-04163)

$

$

Not available

6

Troy-Bilt W3329

CLAMP-HOSE NYLON

$

$

Currently unavailable

7

Troy-Bilt 03220

SCR-PHS M10-24X.75 ZP

$

$

Currently unavailable

8

Troy-Bilt W2045146

DECAL-DANGER AVOID W2045146

$

$

Currently unavailable

9

Troy-Bilt W2045147

DECAL-40PSI CAUTION W2045147

$

$

Currently unavailable

10

Troy-Bilt 9748

OBS SCR HH 5/16-18X2.5

$

$

Currently unavailable

11

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

12

Troy-Bilt W0280041630

BOLT-U .25 X 1.75 X 3

$

$

Currently unavailable

13

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

14

Troy-Bilt W2020103R

ASSM-BOOM SWVL PLATE

$

$

Currently unavailable

15

Troy-Bilt W2098101B

TEE-PIPE .25FPT BRASS

$

$

Currently unavailable

16

Troy-Bilt W20751256B

SHANK-HOSE .375 X .25NPT

$

$

Currently unavailable

17

Troy-Bilt W10829

CLAMP-HOSE 10829

$

$

Currently unavailable

18

Troy-Bilt W2075664

HOSE-VINYL 7.5" 300PSI

$

$

Currently unavailable

19

Troy-Bilt W2075665

HOSE-VINYL 11.5" 300PSI

$

$

Currently unavailable

20

Troy-Bilt W2075666

HOSE-VINYL 18" 300PSI

$

$

Currently unavailable

21

Troy-Bilt W312375NYB

NOZZLE BODY W/2HOSE SHANK

$

$

Currently unavailable

22

Troy-Bilt W8079PP

STRAINER-NYLON W8079PP

$

$

Currently unavailable

23

Troy-Bilt W80015

NOZZLE-BRASS SPRAY BOOM

$

$

Currently unavailable

24

Troy-Bilt WCP215692CE

CAP-NOZZLE (BOOM ATTCH)

$

$

Currently unavailable

25

Troy-Bilt W311375NYB

NOZZLE BODY SINGLE SHANK

$

$

Currently unavailable

26

Troy-Bilt W2020104B

CHAIN-DOUBLE LOOP W2020104B

$

$

Currently unavailable

27

Troy-Bilt W2020101R

ASSM-BOOM TUBE

$

$

Currently unavailable

28

Troy-Bilt 1816035

PLG-SQ 16GA TUBE OLD W9565K23

$

$

Currently unavailable

29

Troy-Bilt W2020106

ROPE-.25 X 10'

$

$

Currently unavailable

30

Troy-Bilt WQJ111SQ1

ASSM-CLAMP & SCR

$

$

Currently unavailable

31

Troy-Bilt W0420004P

WASHER-.75X.312X.065 ZP

$

$

Currently unavailable

32

Troy-Bilt WCP19438EPR

GASKET-NOZZLE SEAT

$

$

Currently unavailable

Troy-Bilt W2020402

BOOM MAST

$

$

Currently unavailable
